RTS-004 分支分配器

（3120S）

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:RTS-004(3120S)

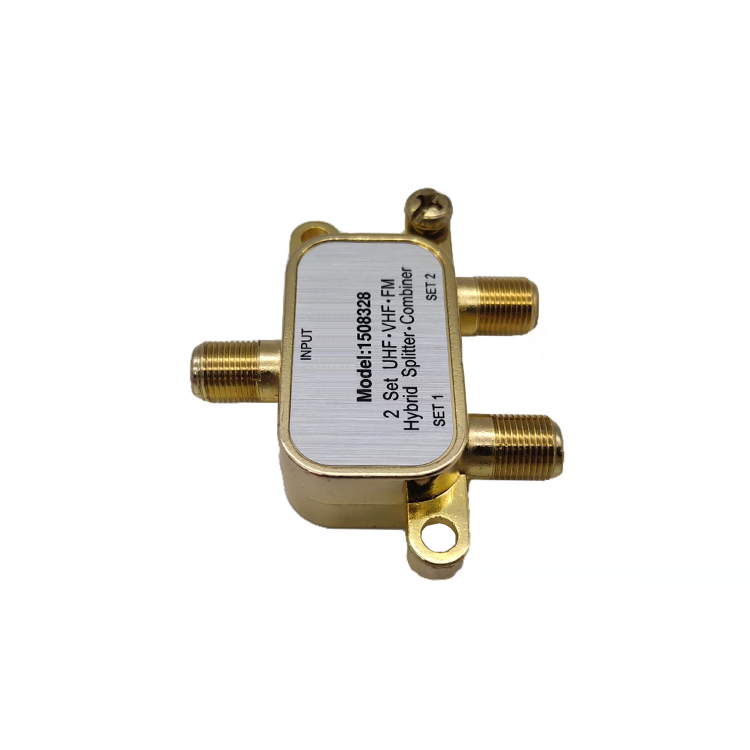

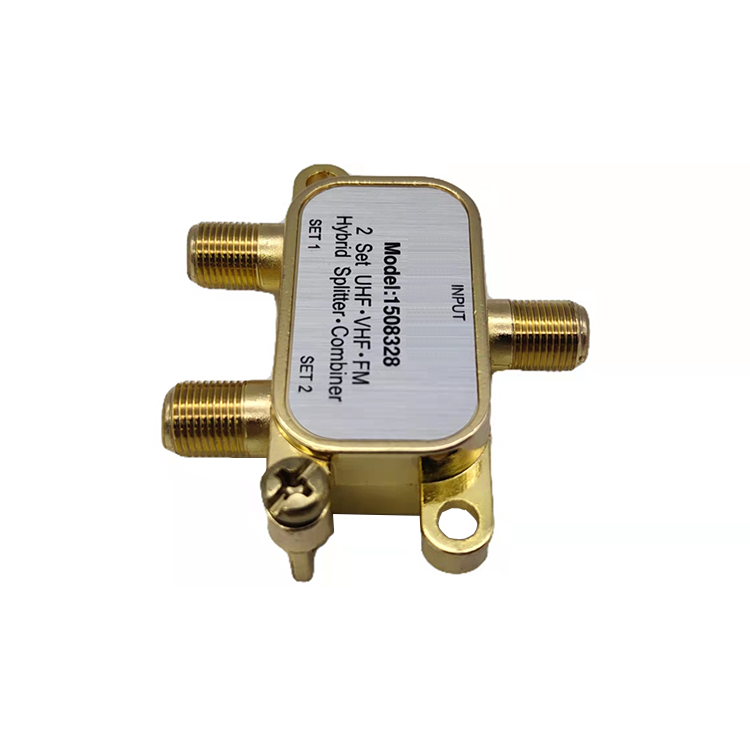

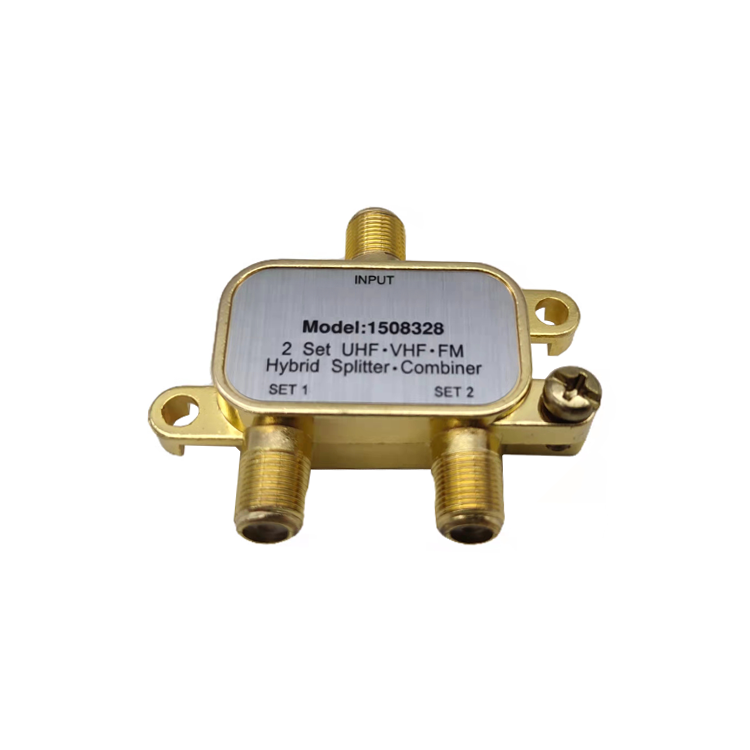

DESCRIPTION : 2 WAY SPLITTER
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ. RANGE			5-900MHz
INSERTION LOSS	-5.0 dB	-6.0 dB MAX.	5-50MHz
	-3.8 dB	-4.2 dB MAX.	51-400MHz
	-4.5 dB	-5.0 dB MAX.	401-890MHz
ISOLATION	-28 dB	-25 dB MIN.	50-400MHz
	-21 dB	-18 dB MIN.	401-800MHz
	-19 dB	-16 dB MIN.	801-890MHz
INPUT RETURN LOSS	-16 dB	-13 dB MIN.	50-400MHz
	-14 dB	-11 dB MIN.	401-890MHz
OUTPUT RETURN LOSS	-13 dB	- 10 dB MIN.	50-400MHz
	- 11 dB	- 8 dB MIN.	401-890MHz
CONNECTOR		“F” TYPE FEMALE	ALL PORTS
IMPEDANCE		75 OHM	ALL PORTS
DC PASS			OUT - IN
