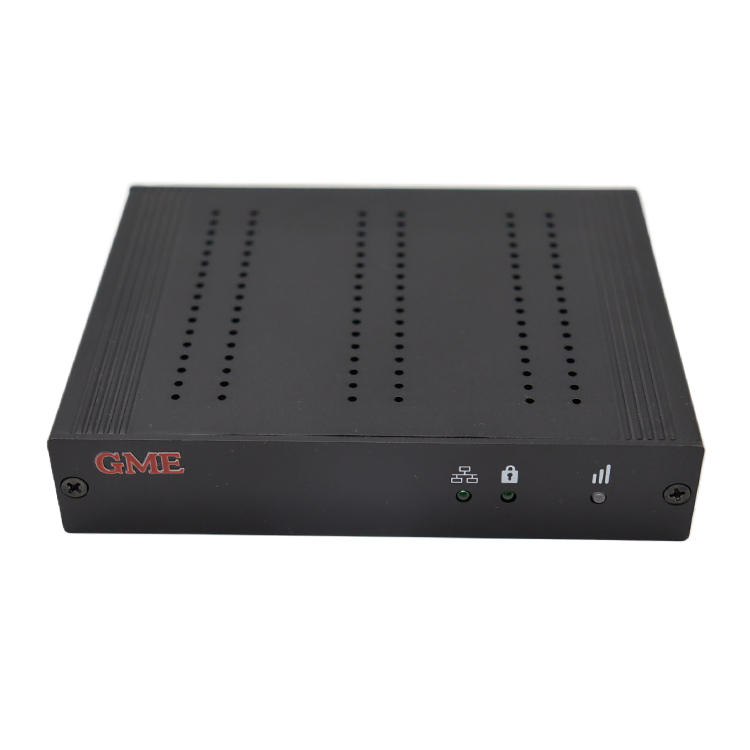

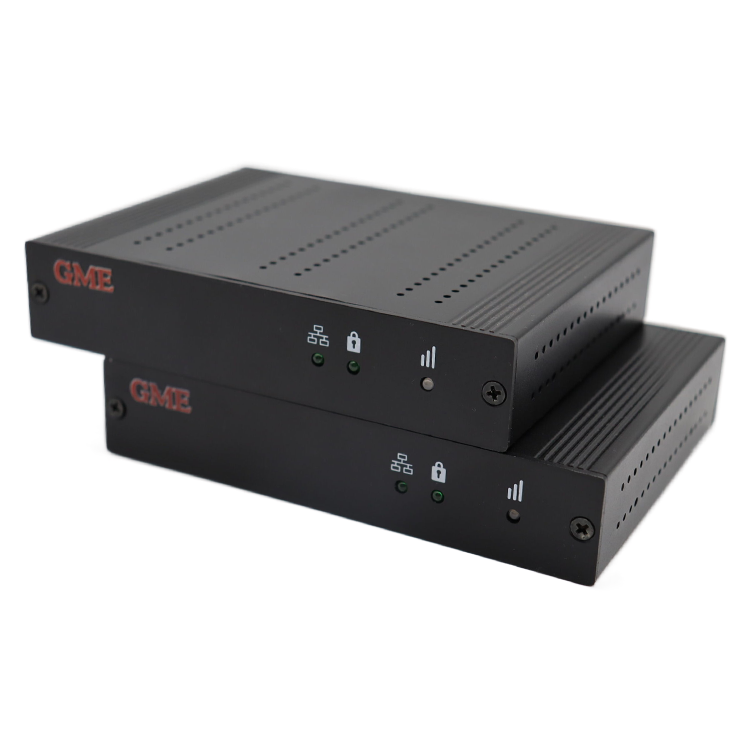

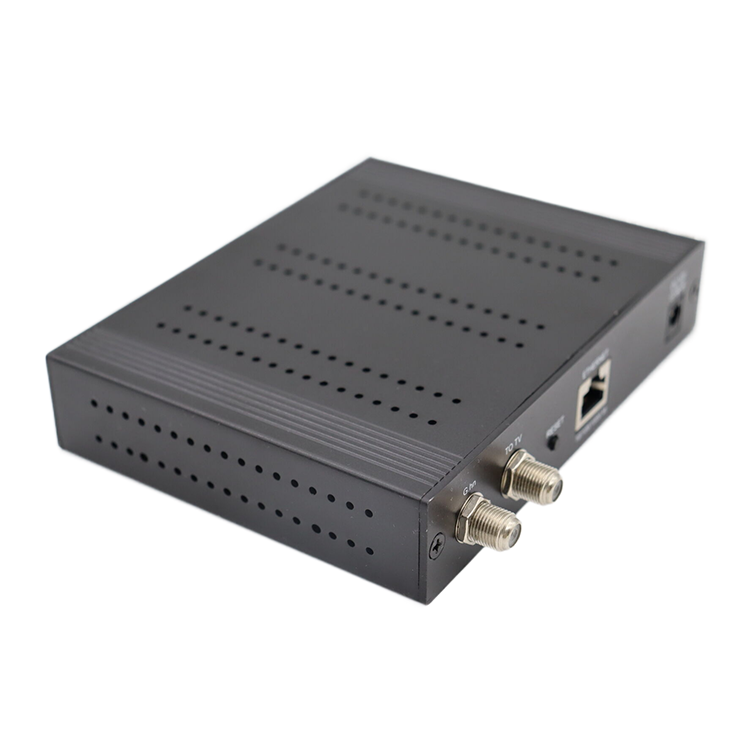

G.hn EoC System

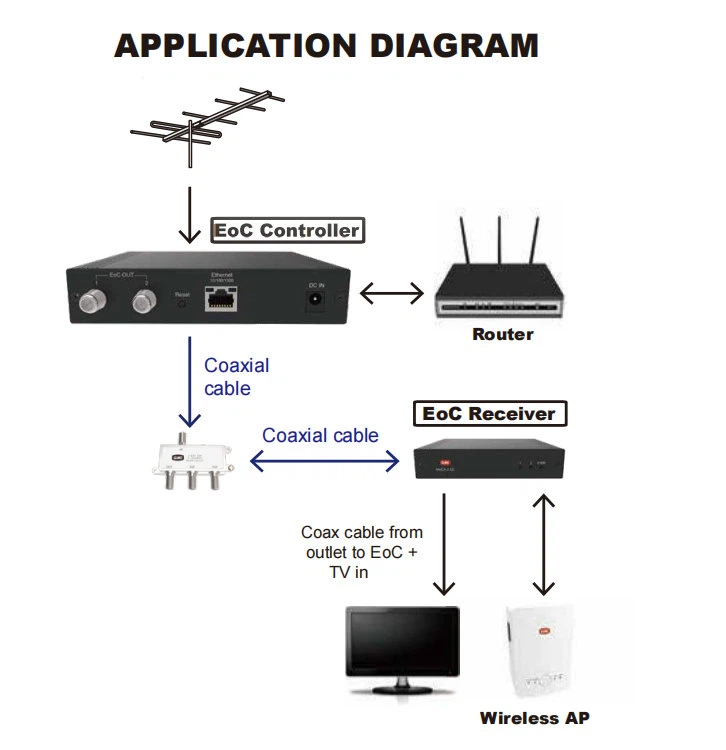

GDMOCA-011 (2551）G.hn EoC System refers to a system that uses coaxial cables (TV cables) for television reception to construct a network for data communication. If there is coaxial cable routing, data communication can be conducted even in places where LAN cable routing is difficult or where wireless communication cannot be conducted due to obstacles.
咨询热线：0755-27091915
在线客服产品参数
Features

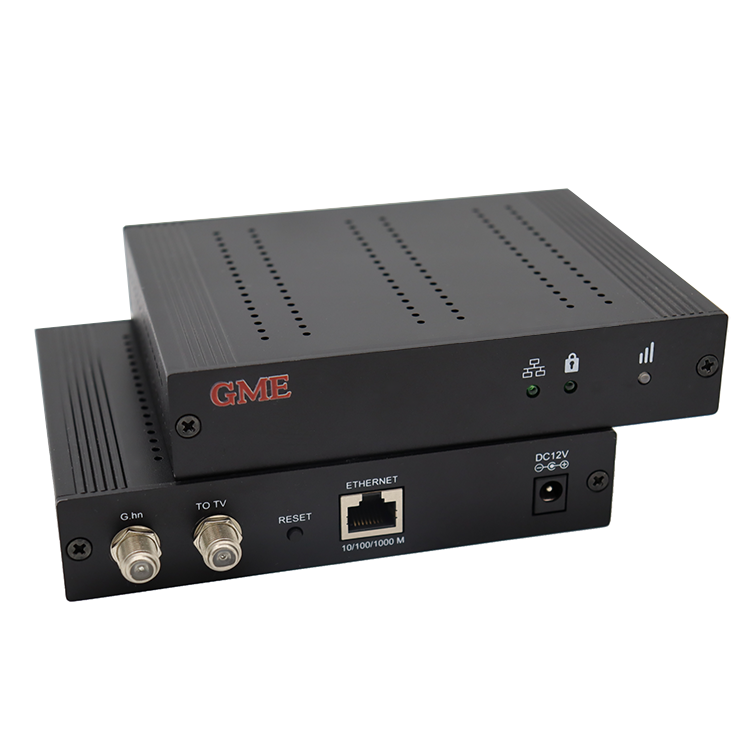

■ Connect the host (master) and the terminal (slave) with coaxial cables, which can be automatically connected by simply turning on the power supply.
■ Disable communication between slave machines. (Disable communication between submachines)
■ Built-in function for dividing TV signals (70-3224MHz) and TLC signals (2-60MHz), so it is possible to simply divide TV signals and TLC signals without using a separate wave splitter to suppress the impact on existing TV signals.
■ The installation method can be installed (horizontally) or wall mounted using mounting metal parts (with master machine and sub machine).

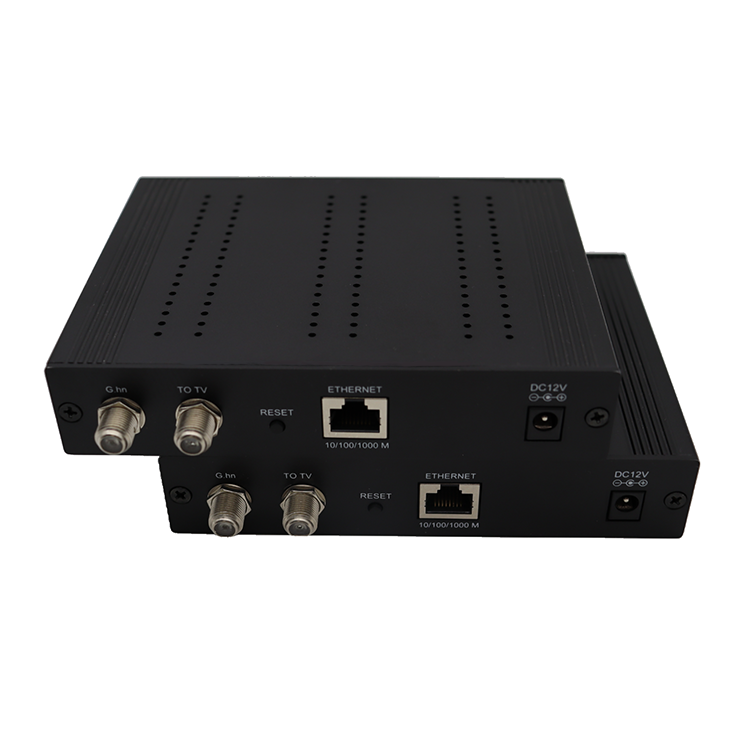

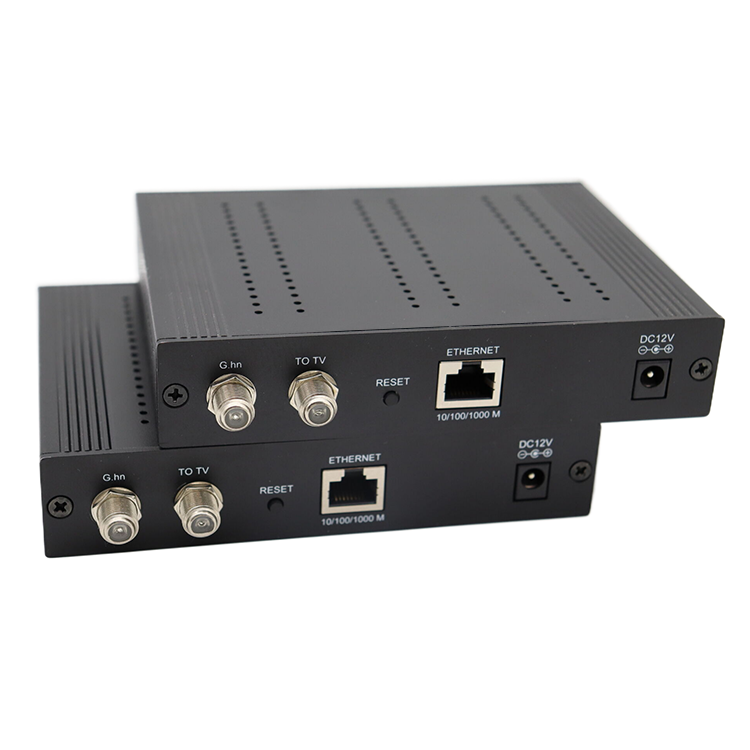

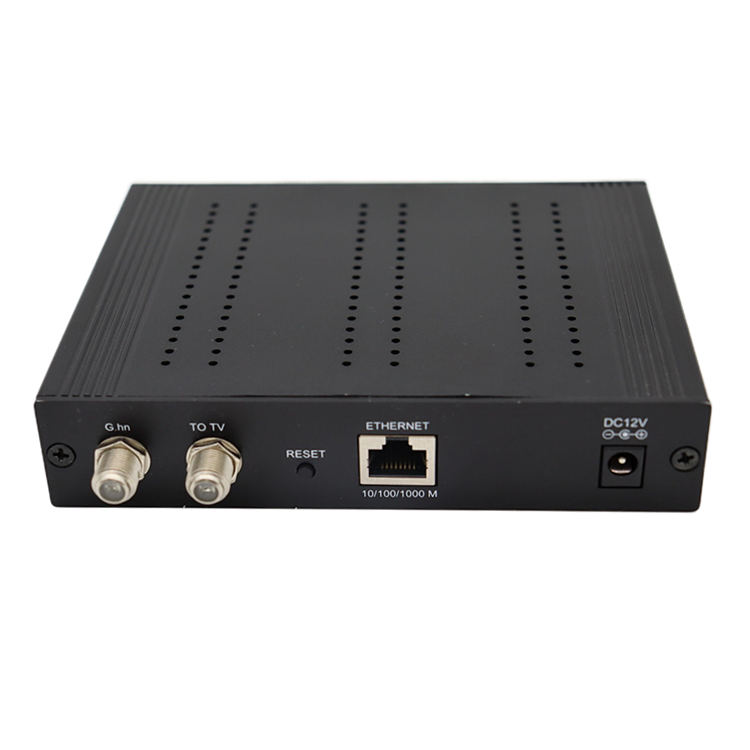

■ Equipped with 2 LAN ports, it can connect 2 network devices.
■ Low power design.
Specifications
