Place of Origin:Guangdong,China
|
|
Model Number:GDST-058(DP214KHD）
|
|
|
|
|
|
|
1. HDMI INPUT
|
|
|
|
|
Connector
|
HDMI JACK
|
|
|
|
Compatible format
|
|
Auto /480I/ 480P /576I
/576P/720P/1080I/1080P/4K
|
|
|

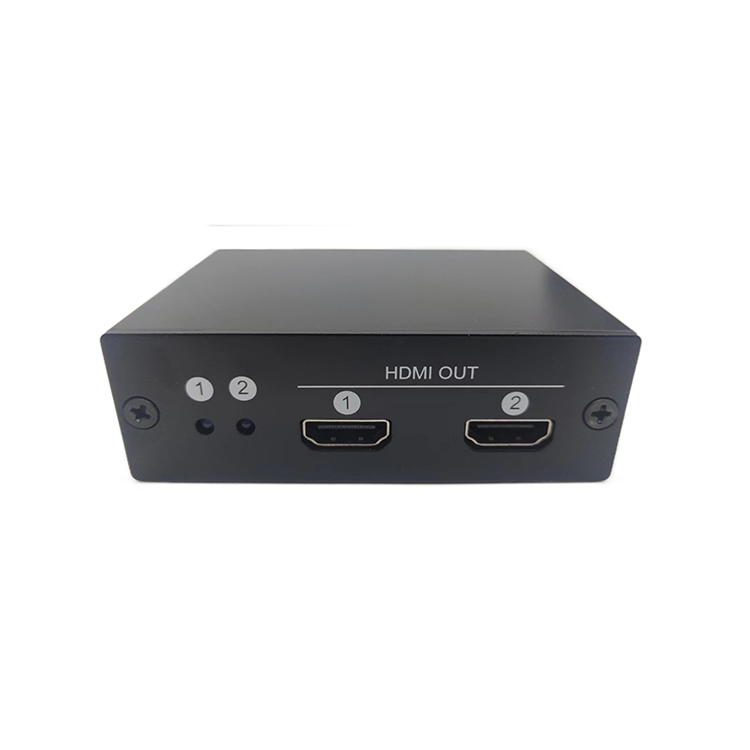

2. HDMI OUTPUT
|
|
|
|
|
Connector
|
HDMI JACK
|
|
|
|
Needing the image and sound to export
|
|
There can’t be mosaic and The Sound is distorted
|
|
|
Compatible format
|
|
Auto /480I/ 480P /576I
/576P/720P/1080I/1080P/4K
|
|
|

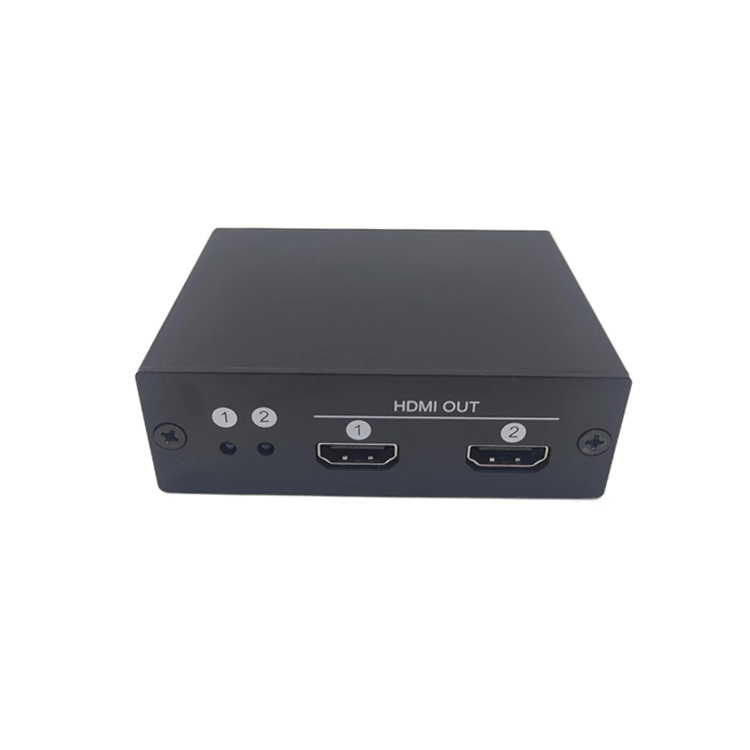

3. Front Panel Function
|
|
|
Display
|
HDMI IN
|
BLUE LED
|
|
|
HDMI OUT ①
|
BLUE LED
|
|
|
HDMI OUT ②
|
BLUE LED
|
|
|

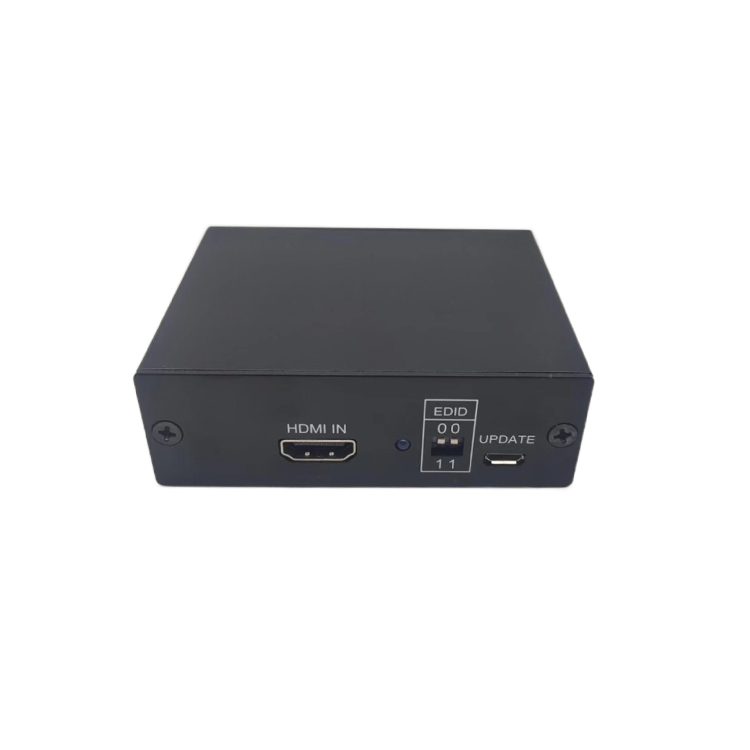

4. EDID SWITTH
|
|
|
SWITTH
|
2P DIP Switch
|
SWITCH TO 0/1
|
|
|
5. MICRO USB
|
|
|
Connector
|
MICRO USB
|
UPDATA Software
|
|
|
6. General Data
|
|
|
Supply Voltage
|
|
MICRO USB DC5V
|
|
|
Working Temperature
|
|
+5℃ to + 40℃
|
|
|
Storage Temperature
|
|
-20℃ to + 65℃
|
|
|
Environmental
|
|
|
|
|
Temperature
|
|
0℃ to + 40℃
|
|
|
Humidity
|
|
40RH to 90RH
|
|
|

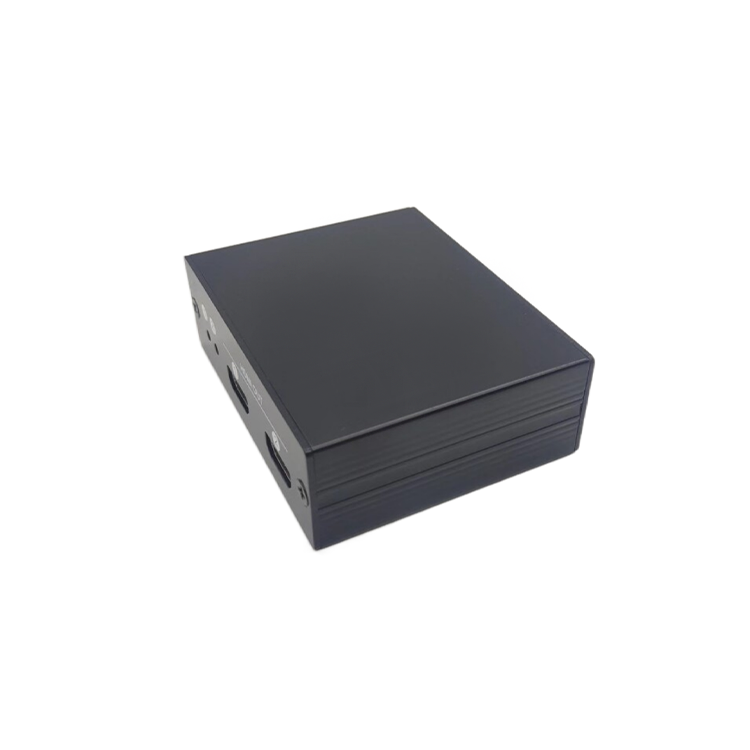

Mechanical Specification
|
|
|
|
|
Dimensions
|
|
86*68*28mm
|
|
|
Weight
|
|
0.12Kg approximate
|
|
