Place of Origin:Guangdong,China
|
|

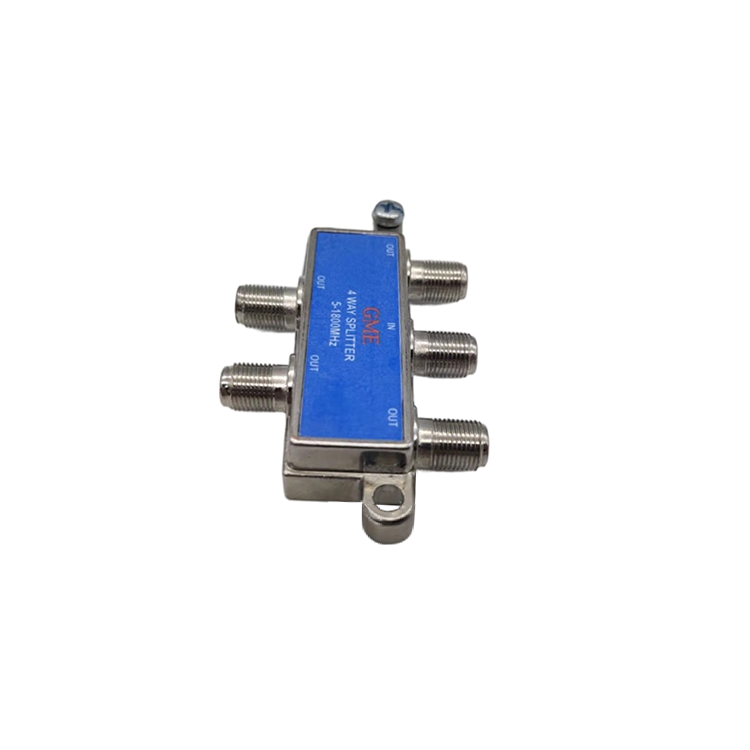

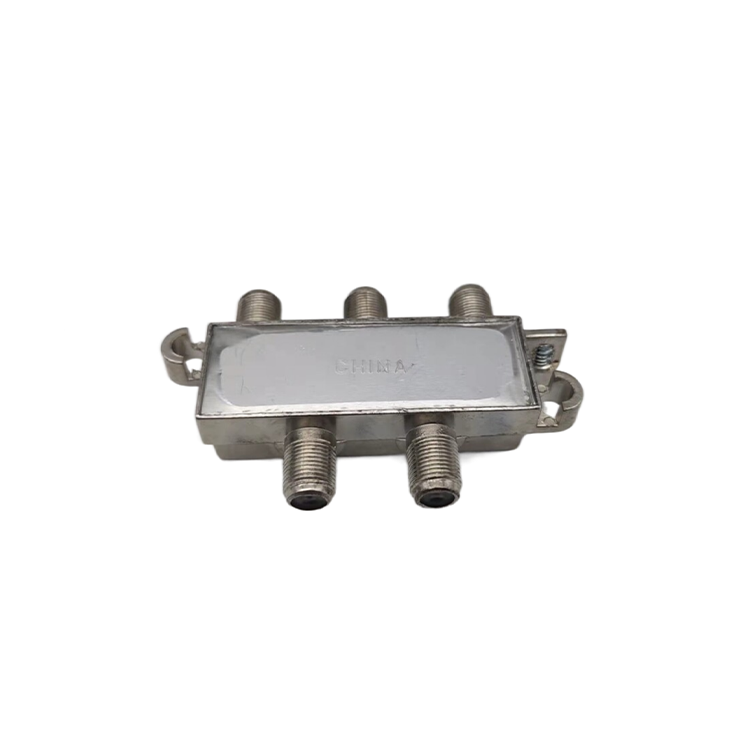

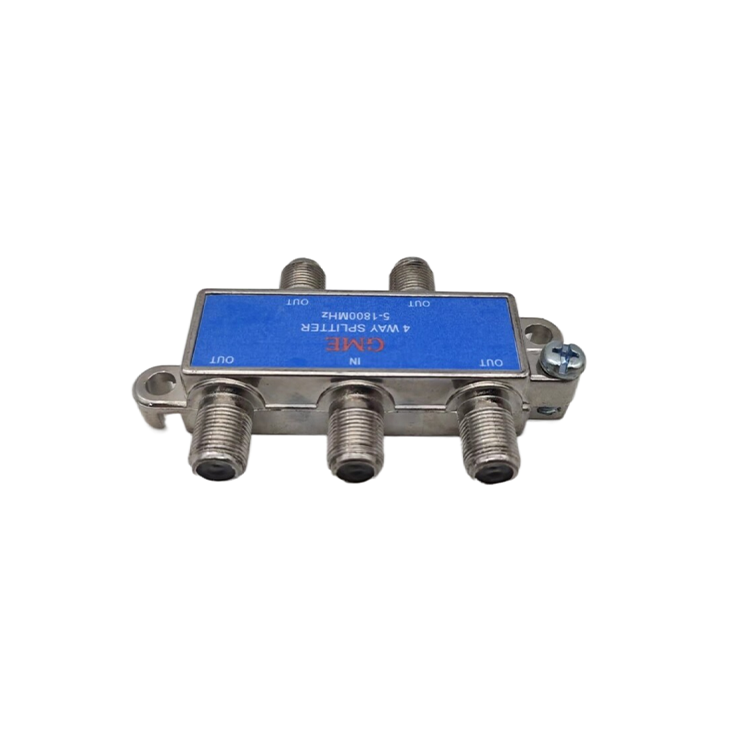

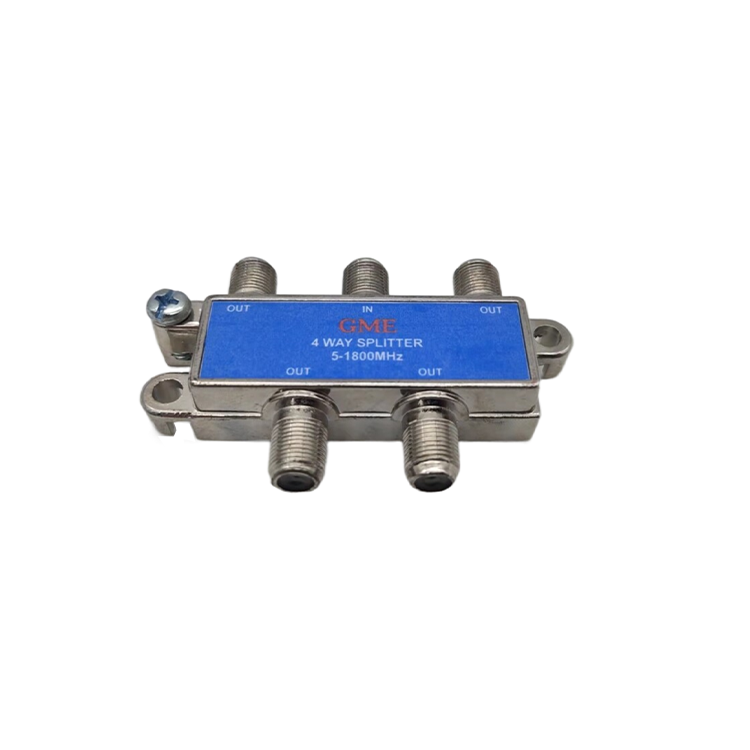

Model Number:GDST-047(3042-1.8G）
|
|
|
|
|
Insertion Loss at Frequency Band
|
7.2 dB @ 5–400 MHz
|
8.6 dB @ 400–1218 MHz
|
9.5 dB @ 1218–1794 MHz
|
|
Return Loss at Frequency Band-input
|
16 dB @ 1218–1794 MHz
|
18 dB @ 1002–1218 MHz
|
20 dB @ 5–1002 MHz
|
|
Return Loss at Frequency Band-output
|
16 dB @ 1218–1794 MHz
|
18 dB @ 1002–1218 MHz
|
20 dB @ 5–1002 MHz
|
|
Frequency Response
|
±0.5 dB @ 1002–1794 MHz
|
±0.5 dB @ 5–1002 MHz
|
|
|
Impedance
|
75 ohm
|
|
|
|
Operating Frequency Band
|
5 – 1794 MHz
|
|
|
|
Power Passing
|
NO
|
|
|
|
Shielding Effectiveness
|
120dB
|
|
|
|
Spurious Signals/2nd Order Harmonics, before surge
|
<-100 dBc
|
|
|
|
Surge Capability Test Method
|
ANSI/SCTE 81 , Category A3 (6 kV, 200 A, Ring wave)
|
|
|
|
Surge Capability Waveform
|
100 kHz ring wave waveform
|
|
|
|
solation at Frequency Band, output to output
|
20 dB @ 1002–1794 MHz
22 dB @ 5–10 MHz
23 dB @ 870–1002 MHz
26 dB @ 65–870 MHz
30 dB @10–65 MHz
|
|
|
|
Operating Temperature
|
-40 °C to +60 °C (-40 °F to +140 °F)
|
|
|
|
Grounding and Bonding Standard
|
UL 467 Ground Clamp Communication
|
|
|
|
Safety Standard
|
SCTE
|
|
|
