GDST-040 分支分配器

GHT8-20P-1.8

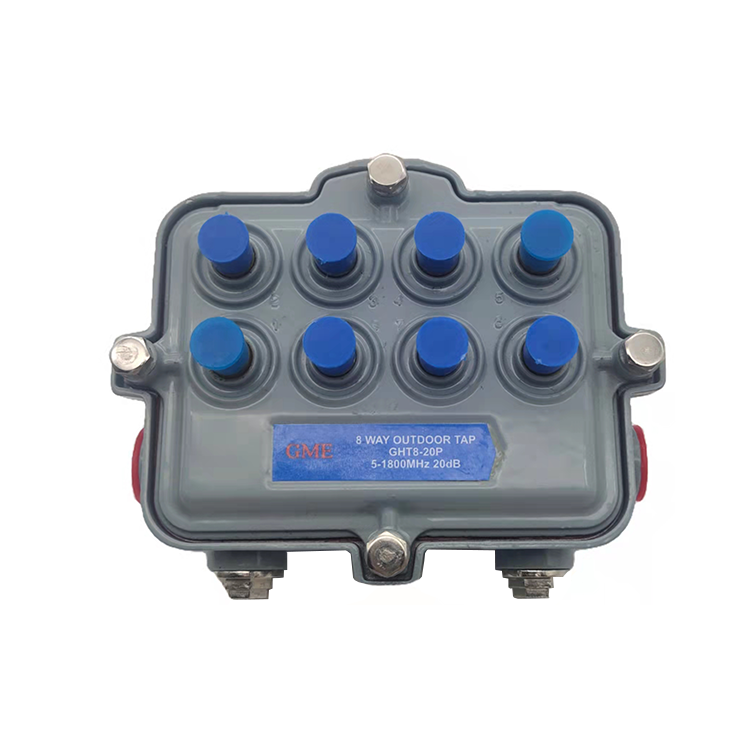

8 WAY OUTDOOK TAP
GHT8-20P
5-1800MHz 20dB

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-040 (GHT8-20P-1.8)
Parameter	Frequency [MHz]	318T-18-11T		318T-18-14		318T-18-17
Insertion loss [dB]	5 – 10	T		3.8		1.8
	10 – 65	T		3.6		1.6
	65 – 300	T		4		1.8
	300 – 550	T		4.7		2.5
	550– 750	T		5		2.7
	750 - 862	T		5		3
	862 – 1000	T		5.1		3.1
	1000 – 1218	T		5.3		3.3
	1218 - 1500	T		5.6		4
	1500 – 1700	T		5.8		4.5
	1700 – 1800	T		6		5.2
Return loss [dB min.]	5 – 10	≧16		≧16		≧16
	10 – 47	≧16		≧16		≧16
	47 – 850	≧16		≧16		≧16
	850 – 1218	≧12		≧12		≧12
	1218– 1500	≧12		≧12		≧12
	1500 - 1700	≧12		≧12		≧12
	1700 – 1800	≧12		≧12		≧12
Tap value(dB) Tolerance 5-580MHz±1.0dB 850-1218MHz±1.5dB 1218-1800MHz±2.0dB	5 – 65	11		14		17
	65 – 860	11		14		17
	860 – 1218	11		14		17
	1218– 1500	11		15		17
	1500 - 1700	11		15.5		18
	1700 - 1800	11		15.5		18.5
Isolation [dB min.]		Out-Tap	Tap-Tap	Out-Tap	Tap-Tap	Out-Tap	Tap-Tap
	5 – 10	T	18	24	18	26	18
	10 – 65	T	26	30	26	32	26
	65 – 860	T	24	28	24	30	24
	860 – 1218	T	22	26	22	28	22
	1218– 1500	T	20	25	20	25	20
	1500 - 1700	T	17	25	17	25	17
	1700 – 1800	T	17	25	17	25	17
