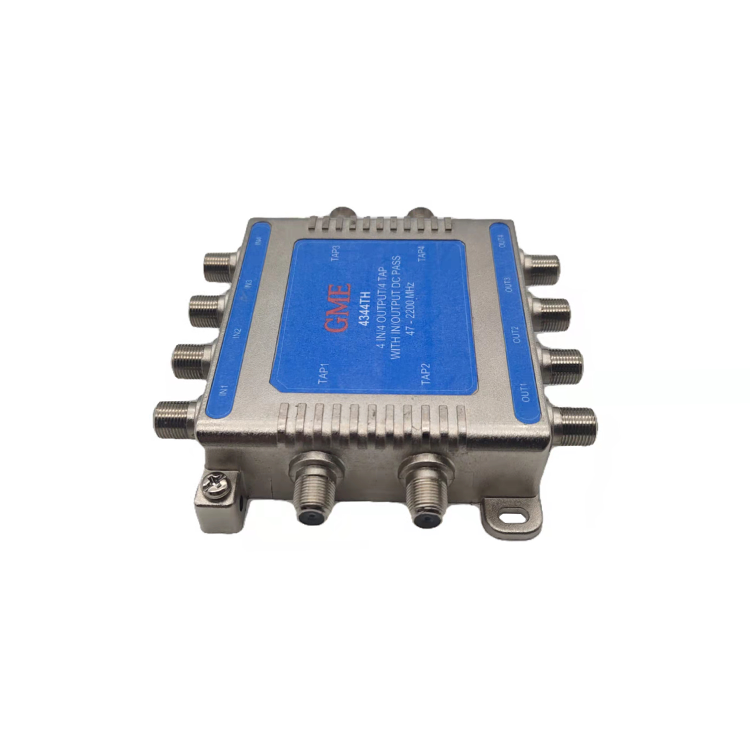

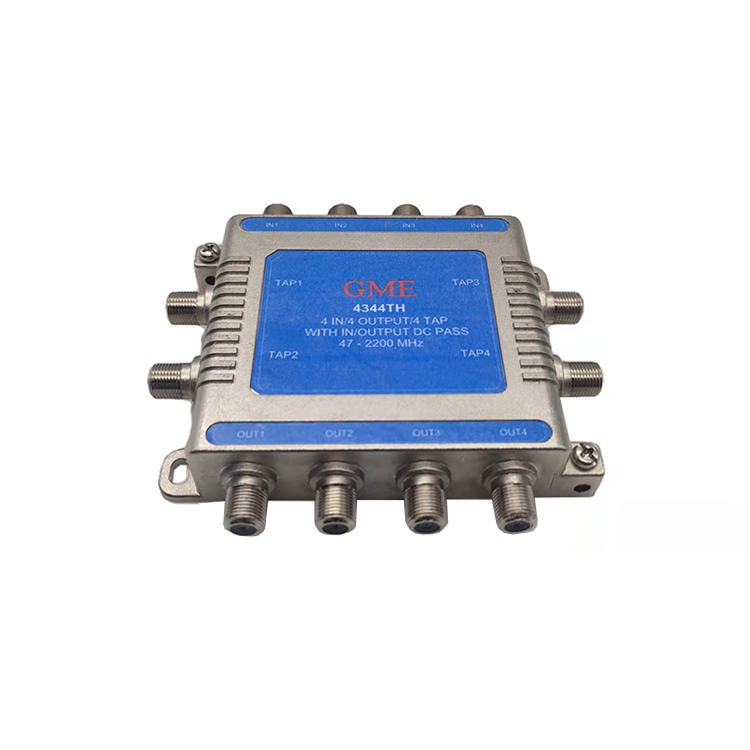

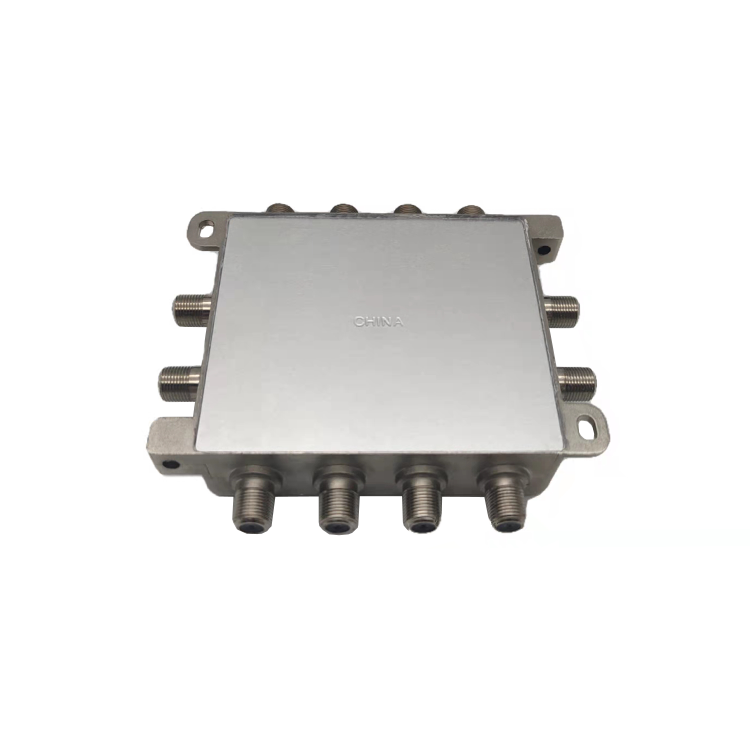

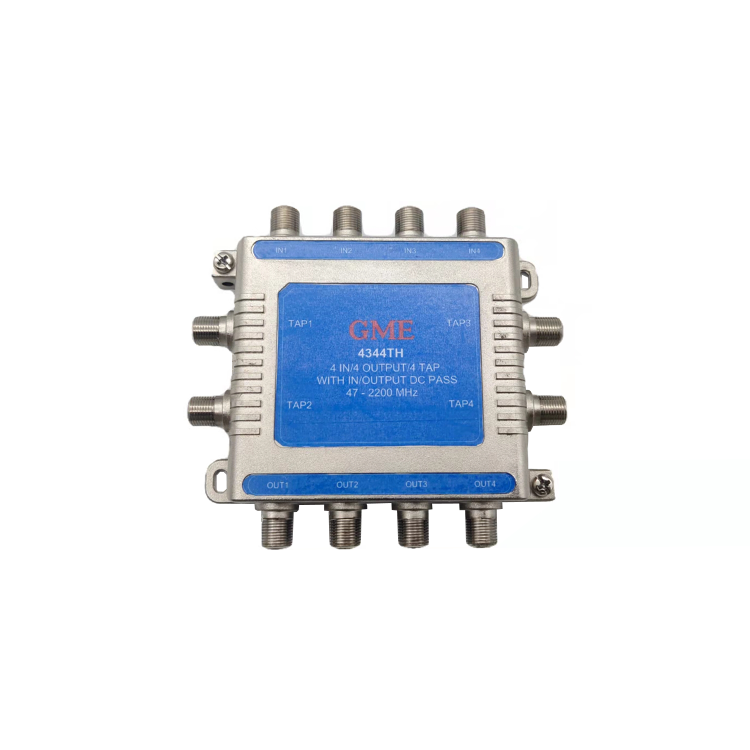

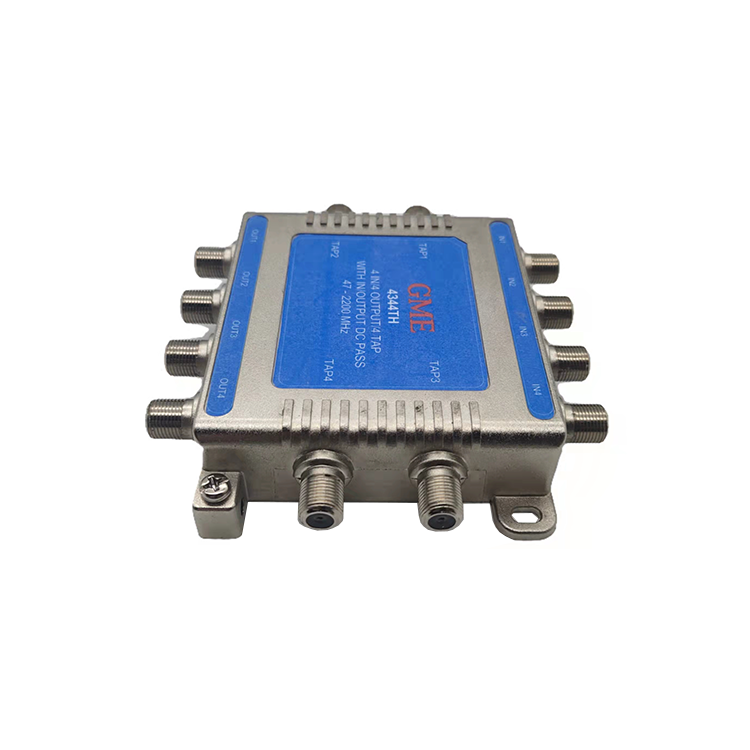

GDST-033 分支分配器

4344TH

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-033(4344TH)
Model & Specifications		Band Width (MHz)	4344TH10dB	4344TH14dB	4344TH18dB	4344TH22dB	4344TH26dB
Tap loss(dB)		47-862MHz	0.5±1.0dB	14±1.0dB	18±1.0dB	22±1.0dB	26±1.0dB
Tap loss(dB)		863-2200MHz	10.5±1.5dB	14±1.5dB	18±1.5dB	22±1.5dB	26±1.5dB
Insertion loss(dB)		47-862MHz	2.5dB	2.0dB	1.8dB	1.5dB	1.5dB
Insertion loss(dB)		863-2200MHz	3.0dB	2.5dB	2.2dB	2.0dB	2.0dB
Return loss In/out/tap(dB)		47- 882MHz	12dB	12dB	12dB	12dB	12dB
Return loss In/out/tap(dB)		863-2200MHz	10dB	10dB	10dB	10dB	10dB
Isolation	In to in	47-882MHz	40dB	40dB	40dB	40dB	40dB
	In to in	863-2200MHz	35dB	35dB	35dB	35dB	35dB
	Out to out	47-862MHz	40dB	40dB	40dB	40dB	40dB
	Out to out	863-2200MHz	35dB	35dB	35dB	35dB	35dB
	Tap to tap	47-862MHz	45dB	45dB	45dB	45dB	45dB
	Tap to tap	863-2200MHz	40dB	40dB	40dB	40dB	40dB
	Out to tap	47-862MHz	24dB	24dB	30dB	32dB	35dB
	Out to tap	863-2200MHz	20dB	24dB	26dB	30dB	32dB
Power pass		30VDC/Max. IN-TOUT
Impedance		75 ohm
Connector		“ F " TYPE FEMALE
