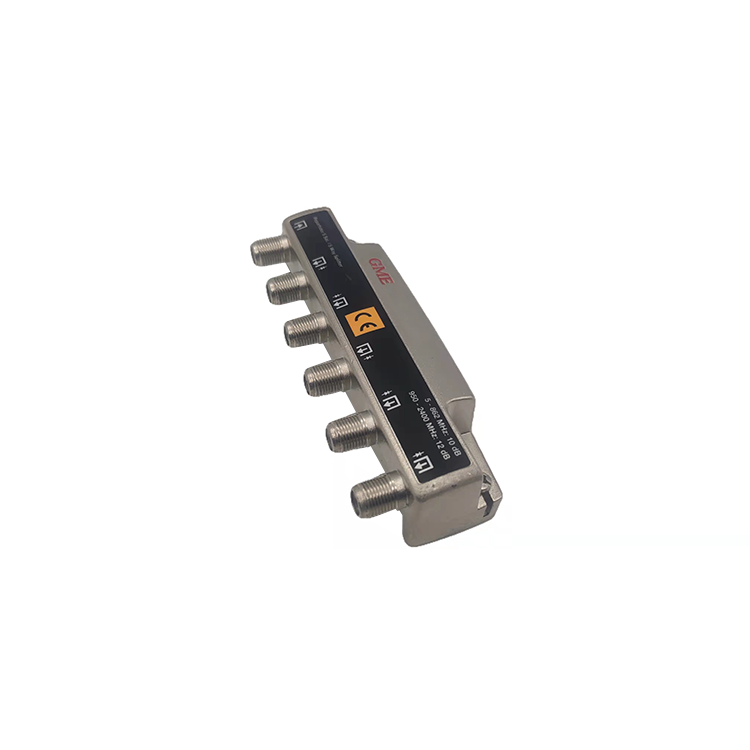

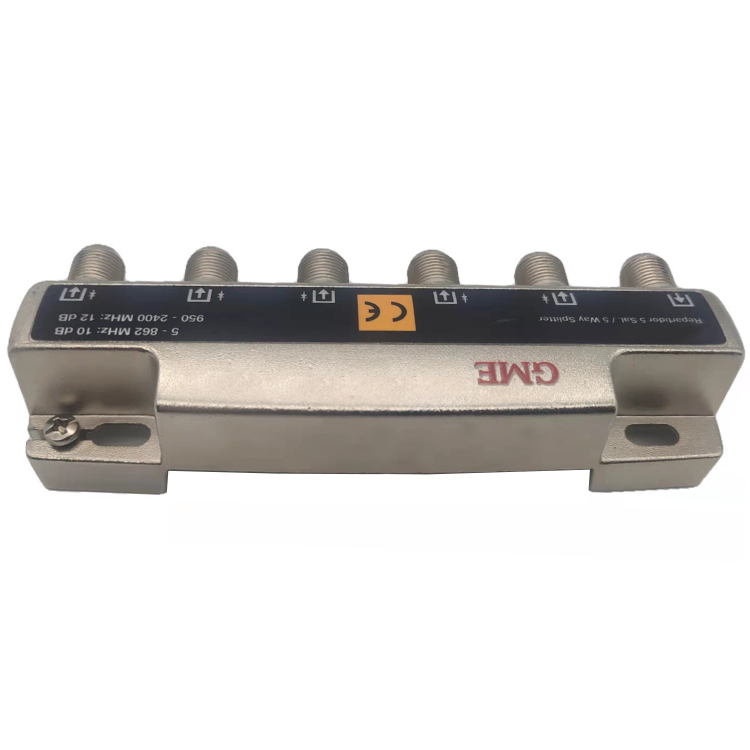

GDST-024 分支分配器

5153

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-024(5153）
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
1.FREQ. RANGE			5 ~ 2400 MHz
2.INSERTION LOSS
IN – OUT1,2,3,4,5	- 10 dB	- 11dB MAX..	5 ~ 40 MHz
	- 10.5 dB	- 11.5 dB MAX..	41 ~ 860 MHz
	-10.5 dB	- 13 dB MAX..	861 ~ 1750 MHz
	- 12.5dB	- 14 dB MAX..	1751 ~ 2150 MHz
	-13.5 dB	- 15.5 dB MAX..	2151 ~ 2400 MHz
3.ISOLATION	- 22 dB	- 20 dB MIN.	5 ~ 40 MHz
	- 20 dB	- 18dB MIN.	41 ~ 860 MHz
	- 20 dB	- 16 dB MIN.	861 ~ 2150 MHz
	- 20 dB	- 16 dB MIN.	2151 ~ 2400 MHz
4.RETURN LOSS
IN	- 8 dB	- 7.0dB MIN.	5 ~ 10 MHz
	- 8.5 dB	- 8 dB MIN.	11 ~ 40 MHz
	- 9.5dB	- 8.5 dB MIN.	41 ~ 860MHz
	- 12 dB	- 9 dB MIN.	861 ~ 2400 MHz
OUT	- 6.0 dB	- 5.5 dB MIN.	5 ~ 10 MHz
	- 8.5dB	- 6.5 dB MIN.	11 ~ 40 MHz
	- 15 dB	- 10 dB MIN.	41 ~ 860MHz
	- 15 dB	- 10 dB MIN.	861 ~ 2400 MHz
5.IMPEDANCE		75 OHM	ALL PORTS
6.CONNECTOR		“F” TYPE FEMALE	ALL PORT
7.DC PASS			OUT1 → IN
			OUT2 → IN
			OUT3 → IN
			OUT4 → IN
			OUT5 → IN
