GDST-019 分支分配器

HRVT220

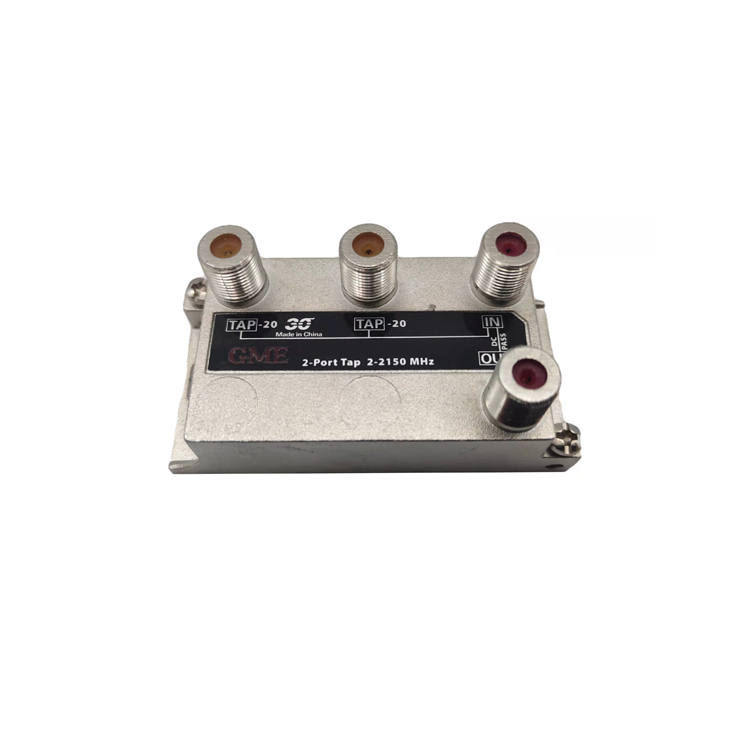

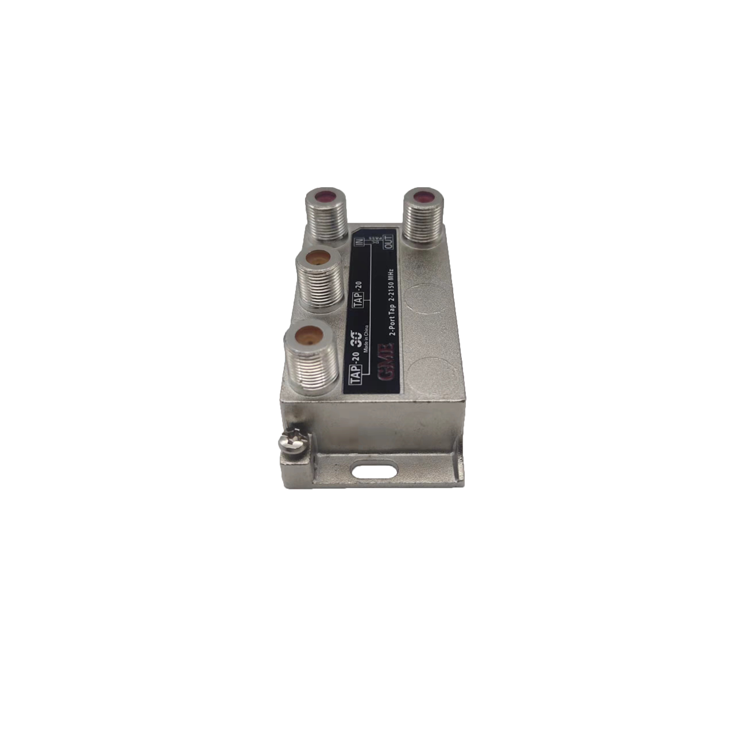

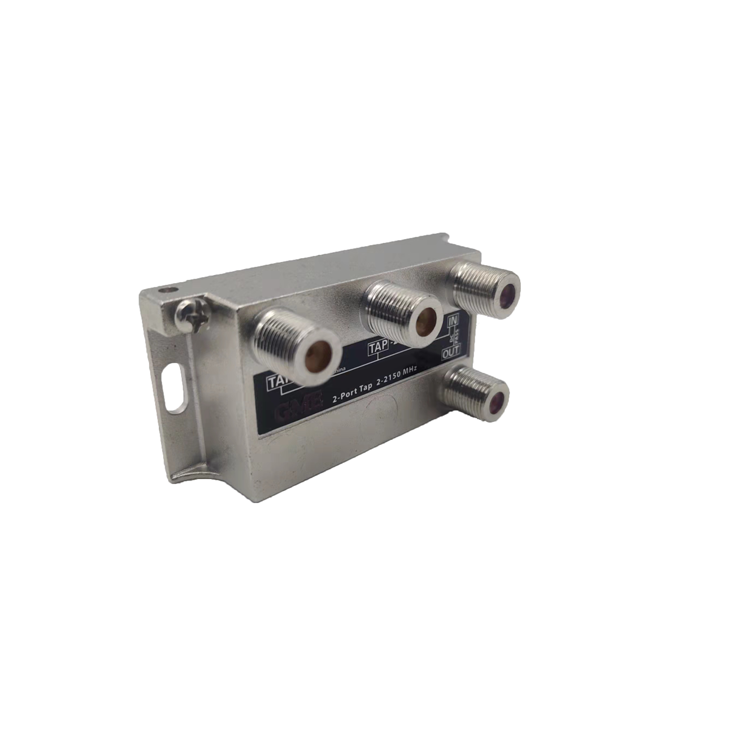

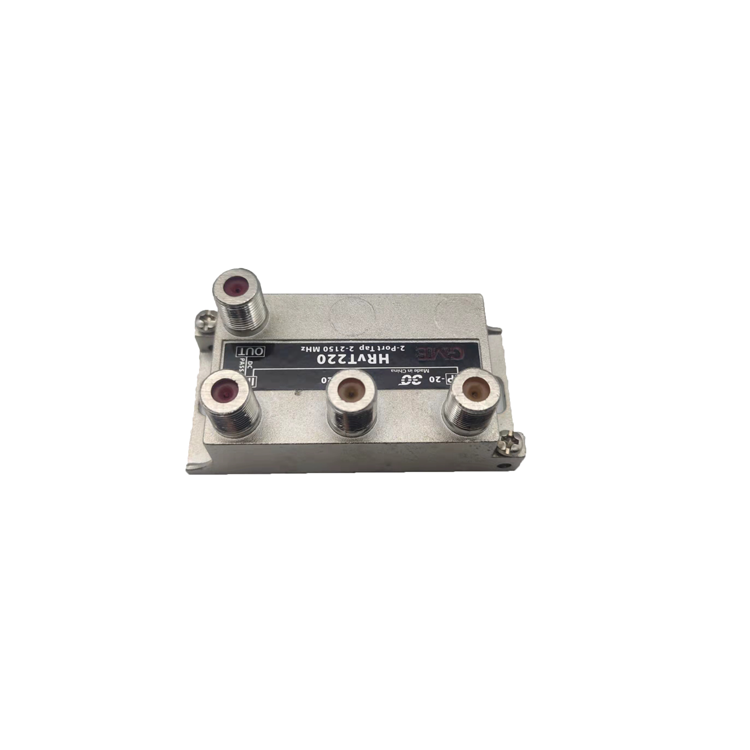

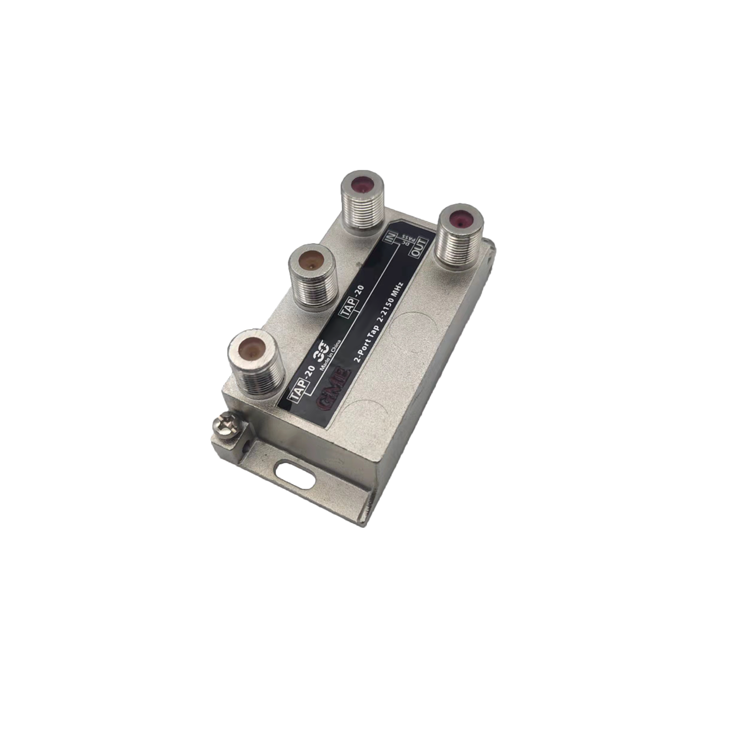

Sonora HRvT220 High Performance 20 dB Vertical Tap 2-Port 2-2400 MHz

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDST-019(HRVT220）
FREQUENCY (MHz)	15~40 MHz	41~860 MHz	861~2150 MHz
ISOLATION (dB MIN.)
TAP TO TAP	-18 dB	-18 dB	-17 dB
RETURN LOSS (dB MIN.)
IN/OUT	-10 dB	-10 dB	-10 dB
TAP	-10 dB	-10 dB	-10 dB
TAP INSERTION LOSS
TOLERANCE @20dB	20±1.5 dB	20±1.5 dB	20±2.0 dB
INSERTION LOSS (dB MAX.)
IN TO OUT 15~40 MHz	-1.5 dB
41 ~860 MHz	-2 dB
861~ 2150 MHz	-2.5 dB

OUT TO TAP ISOLATION
(dB MAX.) 15~40 MHz	-35 dB
41 ~860 MHz	-25 dB
861~ 2150 MHz	-20 dB
DC PASS	OUTóIN
IMPEDANCE	75 OHM
CONNECTOR	TYPE “F” FEMALE
