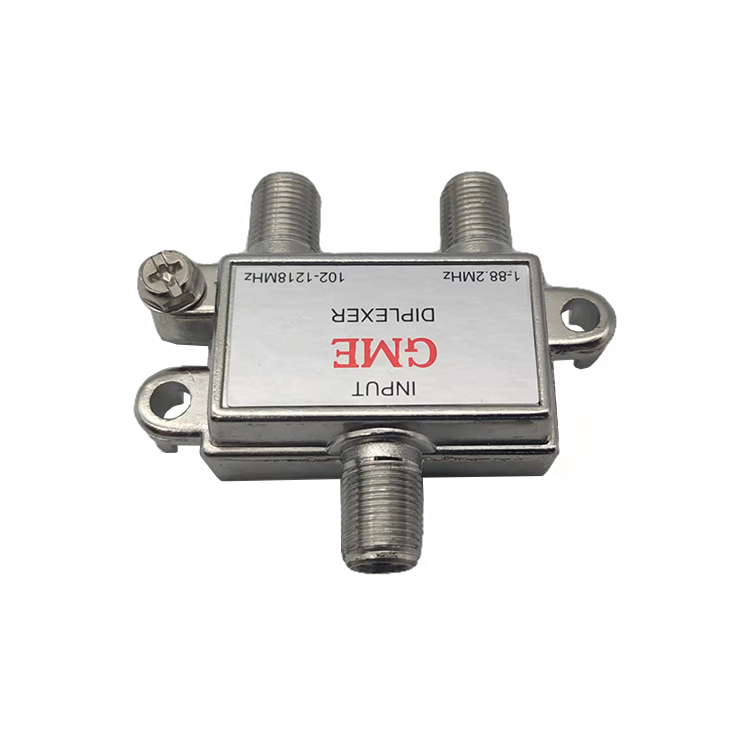

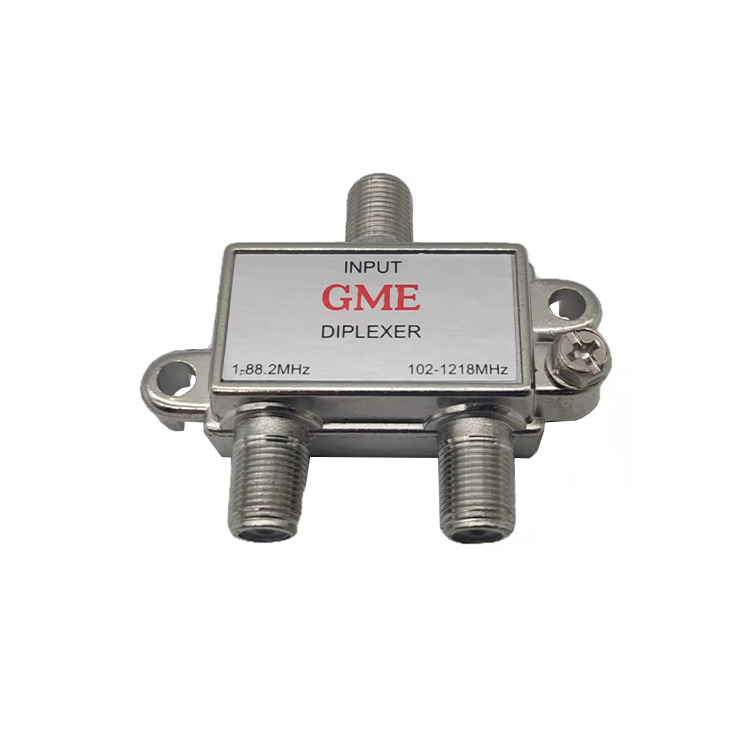

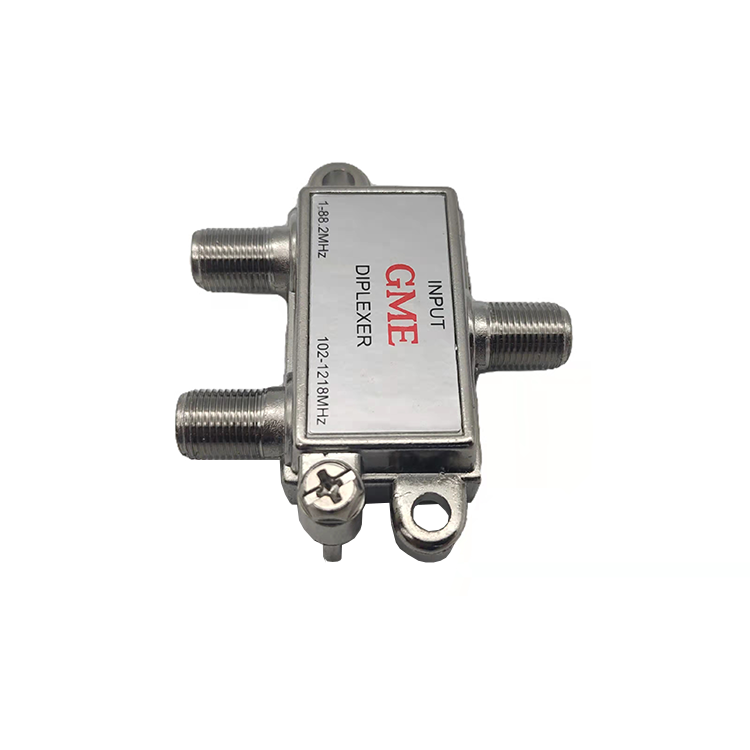

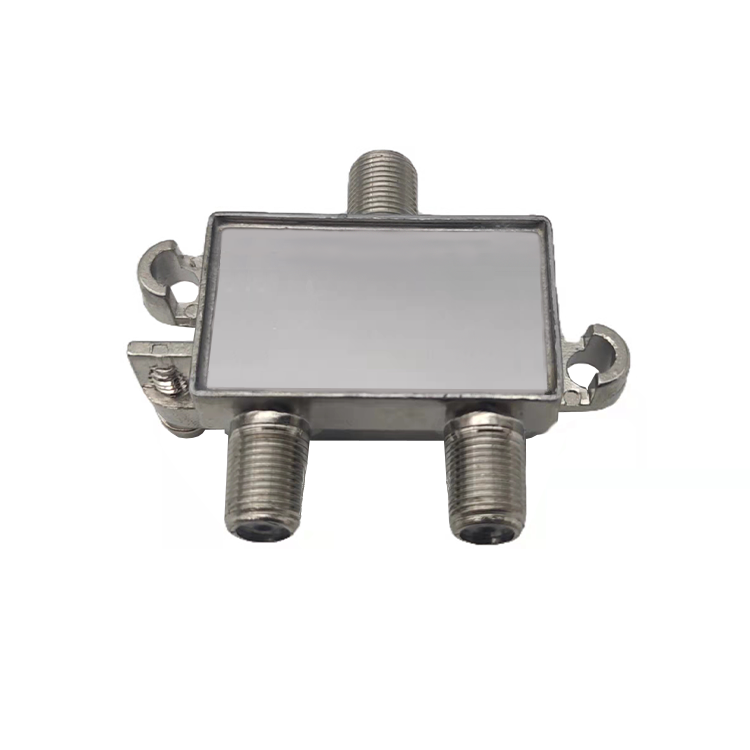

GDST-014 双工器

4520

1-88.2MHz/102 -1218MHz DIPLEXER

咨询热线：0755-27091915

Place of origin: China
MODEL NO. : GDST-014 (4520）
DESCRIPTION : 1-88.2MHz/102 -1218MHz DIPLEXER (Solder Back)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ．RANGE
Low band			1-88.2MHz
High band			102-1218MHz
INSERTION LOSS
Low band	-1.7dB	-2.5dB Max	1-88.2MHz
High band	-1.7dB	-2.5dB Max	102-1218MHz
Passband flatness	1.6dB	2.0dB Max	1-88.2MHz
	1.6dB	2.0dB Max	102-1218MHz
RETURN LOSS
Low band	-13dB	-12dB Min	1-88.2MHz
High band	-13dB	-12dB Min	102-1218MHz
STOP BAND ATTENUATION
Low band	-50dB	-45dB Min	1-88.2MHz
High band	-50dB	-45dB Min	102-1218MHz
Group Delay
Low band		20nsec max	p-p over any 1MHz in band
High band		20nsec max	p-p over any 3.58MHz in band
IMPEDANCE		75 Ohm	ALL PORTS
CONNECTOR		“F”TYPE FEMALE	ALL PORTS
