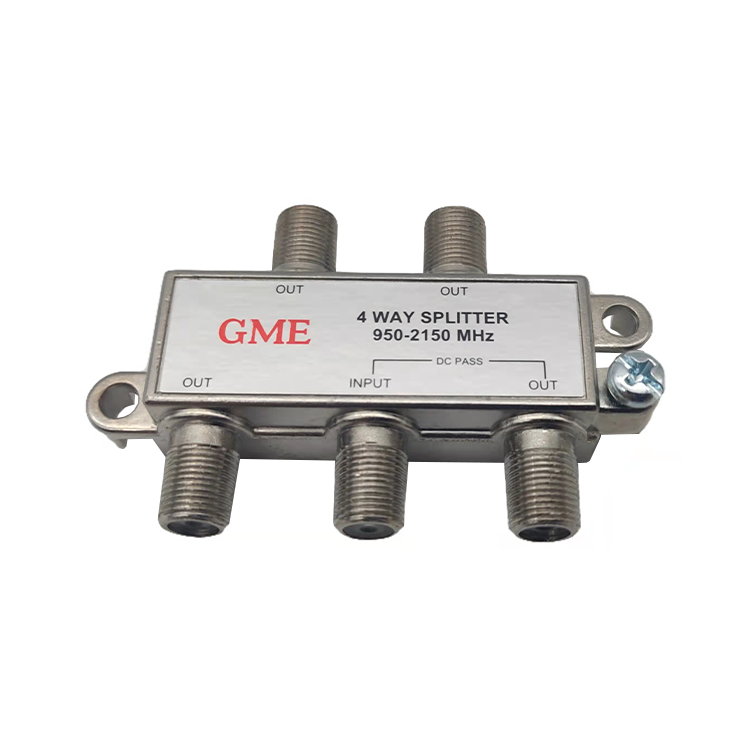

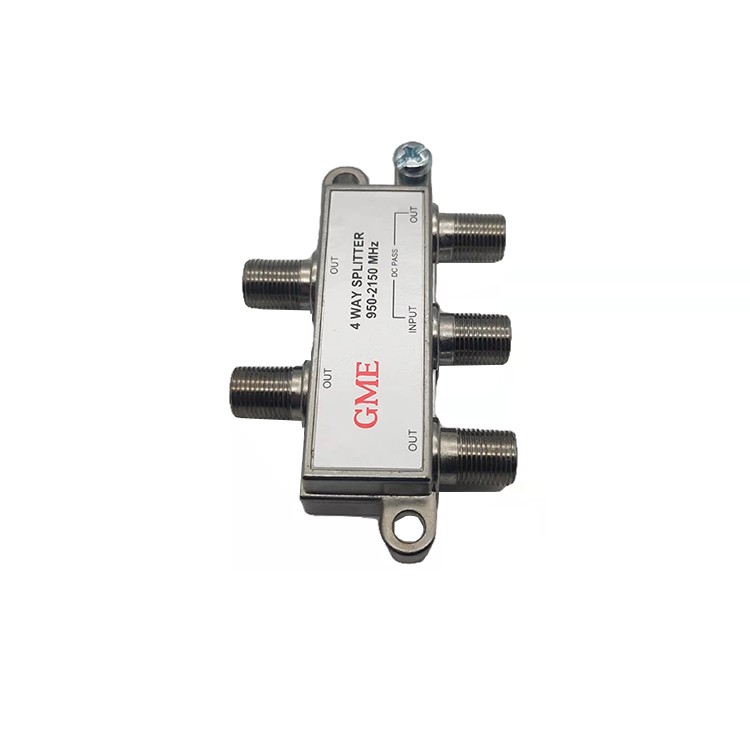

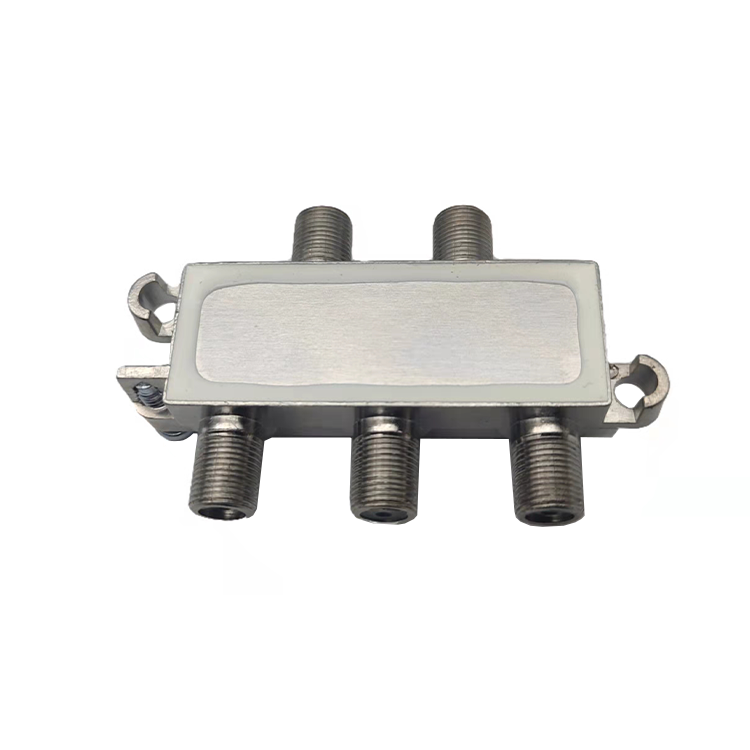

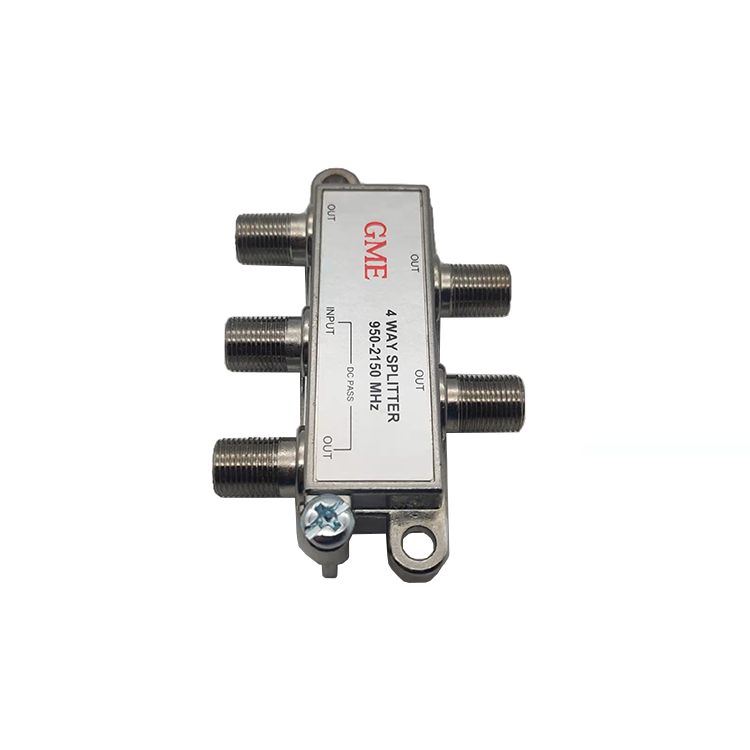

GDST-013 分支分配器

4534H

4 WAY SPLITTER
950-2150MHz

咨询热线：0755-27091915

产品详情
在线留言

产品参数

Place of origin: China
MODEL NO.: GDST-013 (4534H）
DESCRIPTION: 950~ 2150 MHz 4 WAY SPLITTER
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
1. FREQ. RANGE			950 ~ 2150 MHz
2. INSERTION LOSS	- 7.2dB	- 8.0 dB MAX.	950 ~ 1750 MHz
	- 7.5dB	- 8.5 dB MAX.	1751 ~ 2150 MHz
3. ISOLATION	- 21 dB	- 20 dB MIN.	950 ~ 2150 MHz
4. RETURN LOSS
IN/OUT	- 11dB	- 10 dB MIN.	950 ~ 2150 MHz
5. IMPEDANCE		75 OHM	ALL PORTS
6. CONNECTORS		“F” FEMALE	ALL PORTS
7. DC PASS			OUT1- IN
8. DIENSIONS (L×D×H)		78×48.5×15.8 mm
9.WEIGHT		60g
