GDSS-007 选择开关-30 years focus on CATV, MATV & SAT TV. Network Communication OEM/ODM manufacturer

GDSS-007 选择开关

15-1982

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDSS-007(15-1982)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
VIDEO :
1. Input Level	1 Vp-p
2. Input Signal Separation	45.0 dB	40 dB MIN.
3. Output Signal Level	1 Vp-p	0.95 Vp-p MIN.
4. Differential Phase		2° MAX.
5. Differential Gain		5 % MAX.
AUDIO :
1. Input Level L&R	1 Vp-p
2. Response		± 1 dB	20 Hz ~ 20 KHz
3. L&R Cross Talk		75 dB MIN.
4. Output Level L&R	1 Vp-p	0.95 Vp-p MIN.
5. Total harmonic distortion		2 % MAX.
6. Operating Temperature		0 ℃ ~ 50 ℃	Indoor only

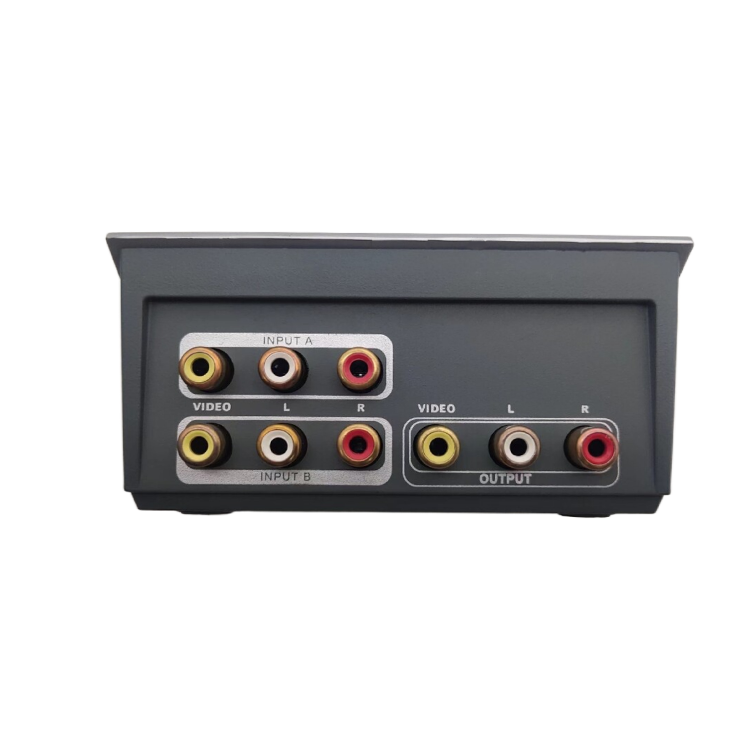

CONNECTOR :
INPUT A/B		RCA JACK “GOLD”
OUTPUT		RCA JACK “GOLD”
