GDMS-010 多路开关

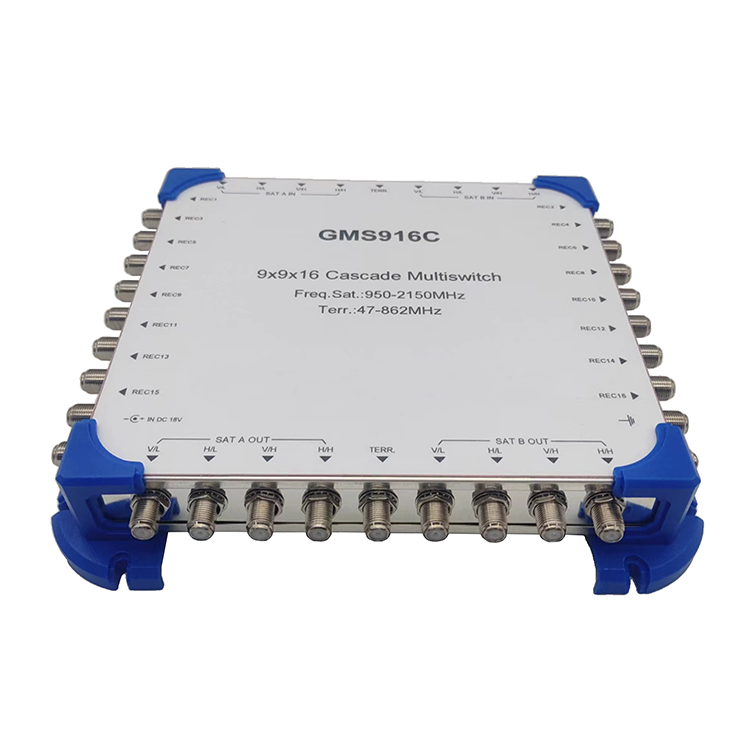

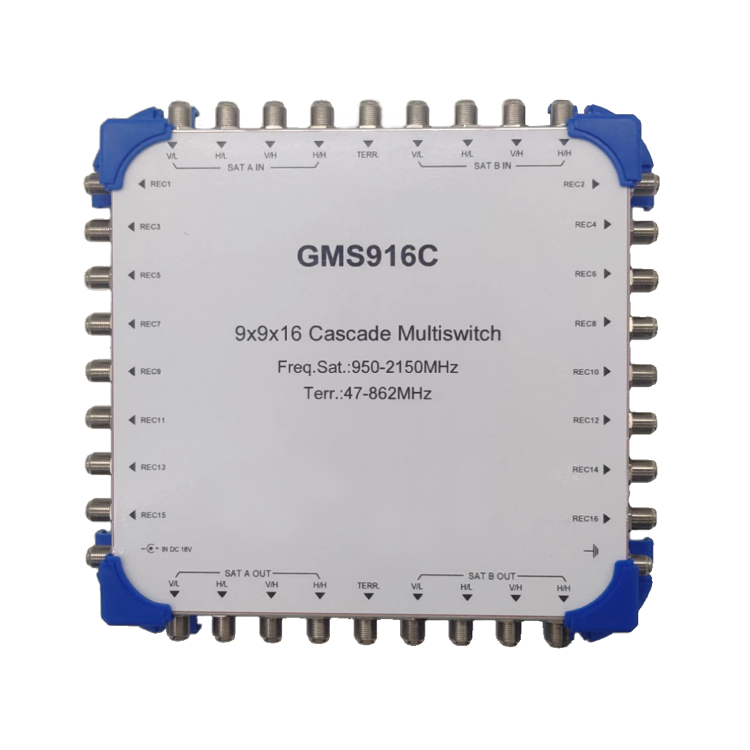

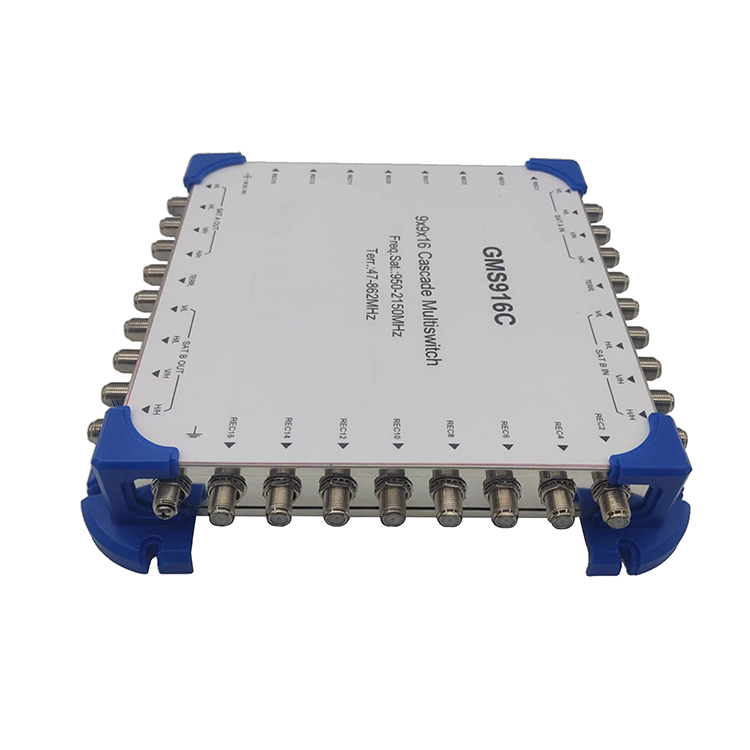

GMS916C

■8 satellite IF and 1 terrestrial TV inputs for 16 satellite receiver
■8 satellite IF inputs selected by 13V、18V、22KHz and DisEqC 2.0 signal
■Built-in amplifier
■Low insertion loss, high isolation and return loss

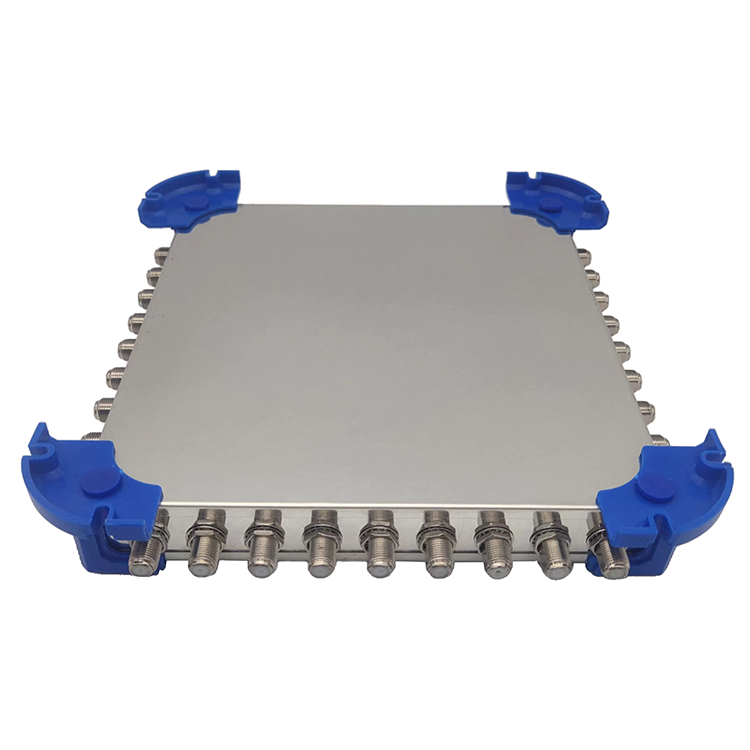

■Sheet metal housing with plastic holder
■Design good for indoor usage

咨询热线：0755-27091915

在线客服

产品详情
在线留言

产品参数

Place of Origin:Guangdong,China
Model Number:GDMS-010(GMS916C)
Item		Specifications	Remark
Frequency Range		Terr.:47~862MHz SAT:950~2150MHz
Inputs/outputs		8 SAT+1 Terr. / 8 SAT+1 Terr.	F connectors
Outputs/subscribers		16 Receiver	F connectors
Thru Loss	Terr.	4.5dB
Thru Loss	SAT	4.5dB
TAP Loss	Terr.	3dB	Gain
TAP Loss	SAT	2dB
Return Loss	Terr.	10 dB
Return Loss	SAT	10 dB
Stop band attenuation	Terr.	25 dB
Stop band attenuation	SAT	25 dB
Isolation	H-V	25 dB
	LNB-LNB	35 dB
	REC-REC	Terr.:26 dB SAT:30 dB
Terr. Output Level Max.		95dBμV@60dB IM3,EN50083-5
SAT Output Level Max.		100dBμV@35dB IM3,EN50083-3
Power supply		IN:90~264VAC OUT:18V 1.6A
Current Consumption from receiver		< 50mA
Switching Voltage		V:10~14.5V H:15.5~20V
Ambient temperature		-20~+50℃
Dimensions (w,d,h)		222×214×42	mm
