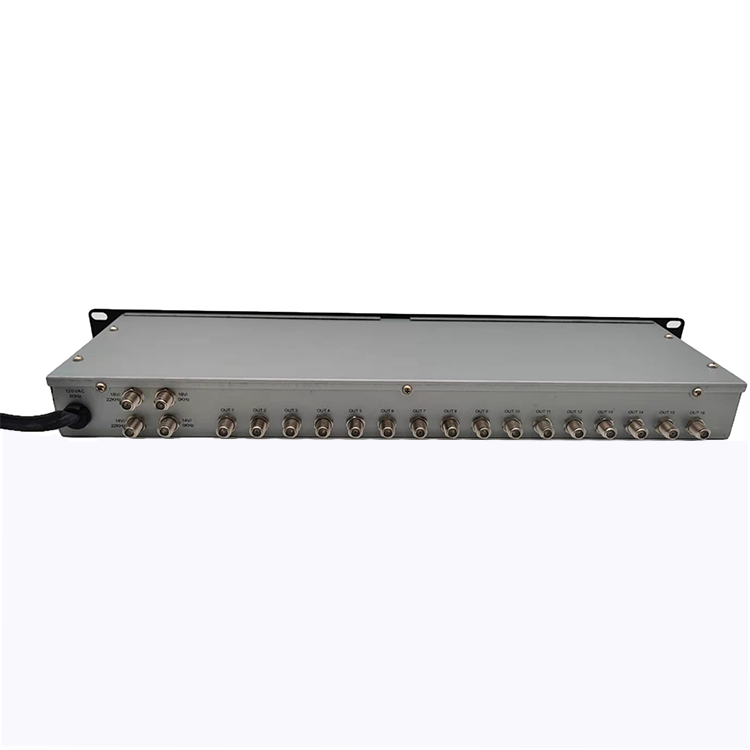

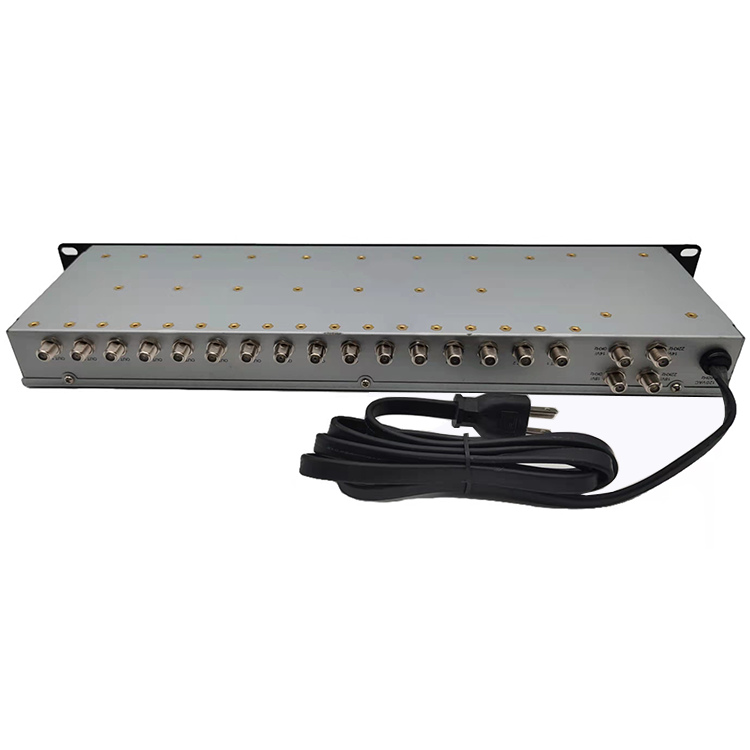

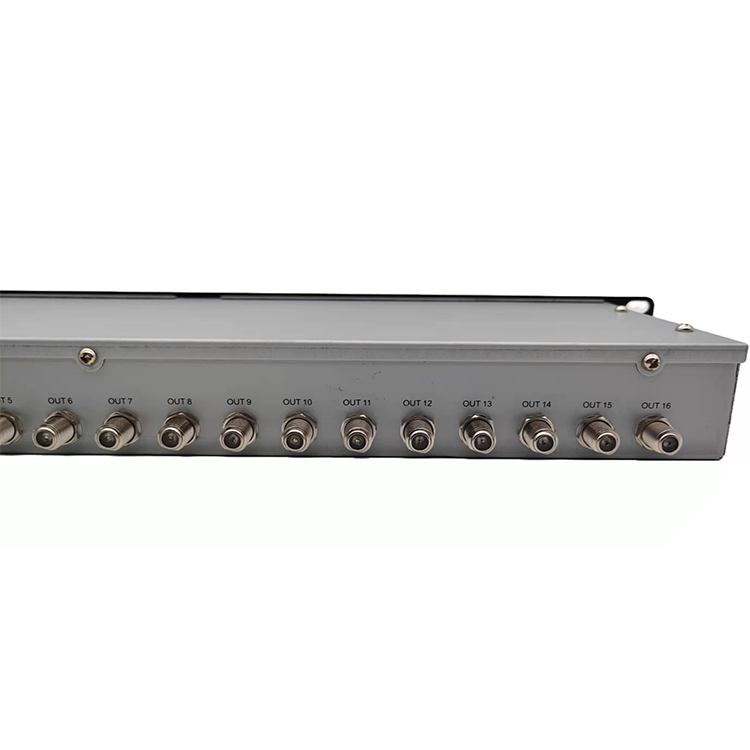

Model Number:GDMS-006(MSR-416)

Item

Typical

Q.C Limit

Test Conditions

1.Input IF Frequency

950~1450 MHz

2.Input/Output Return Loss

－12dB

－10dBMin

950~1450 MHz

3.Gain/Insertion Loss

1dB

OdBMin

950~1450 MHz

4.Gain Flatness

≤1.0dBMax

Any 24MHz Band

5.Cross-Polarization

－25dBMin

950~1450 MHz

6.Cross-Sat Isolation

－30dBMin

950~1450 MHz

7.Input Capability

102dBuV

100dBuV Min

950MHz Input

8.LHCP/RHCP Switching

14.0~14.7 VDC

9.Multi-SW 22KHz Switching Point

150~300mVp-p

Sine Wave Test Signal No Mechanical Relay

10.22KHz Signal Freq.& Amplitude At LNB Input 22KHz On

22±4 KHz 650±250mVp-p

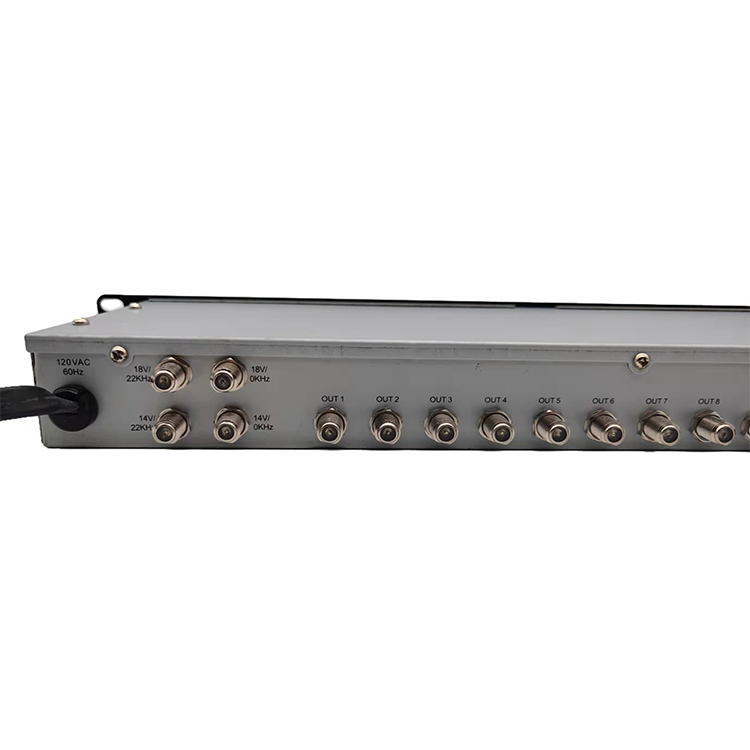

11.Voltage/Current Bias Fixed LNB
Bias Voltage Required At/From
Multi-SW 8 Expected Current
Loading Range 13V/OKHz/13V/22KHz Port 18V/OKHz Port 18V/22KHz Port

12.8V~13.5 VDC
18 VHz Port
17.9V~18.9 VDC
18 V/22KHz Port
17.9V ~ 18.9 VDC

0~300mA 0~450mA 0~450mA

12.Power requirement

AC120V
60Hz
30W Max.
