Place of Origin:Guangdong,China
|
|

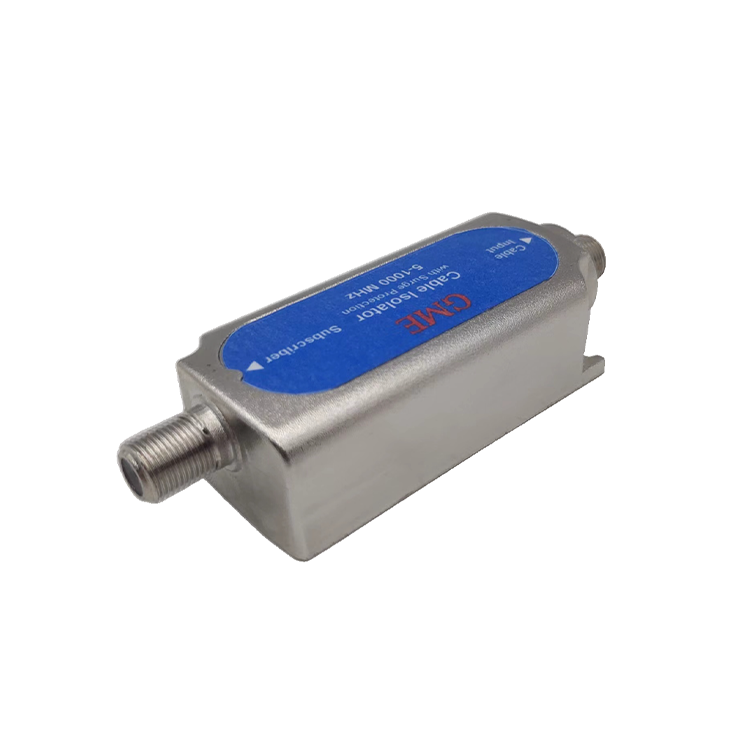

Model Number:GDISO-003(5493)
|
|
|
|
|
|
|
Freq range
|
|
|
5 ~ 1000 MHz
|
|
Insertion loss
|
-0.8dB
|
-1.0dB max.
|
5 ~ 1000 MHz
|
|
Return loss
|
22dB
|
20dB min.
|
5-1000 MHz
|
|
RF shielding
|
85dB
|
85 dB min.
|
5 ~ 1000 MHz
|
|
Galvanic isolation (EN50083-1)
|
|
|
|
|
between center conductor and shield on both ports
|
|
230VAC Rms 50/60Hz not exceeding 2.0mA Rms
|
|
|
between cable Input shield and Subscriber shield
|
|
2120VDC for at least one minute not exceeding0.7mA leakage current
|
|
|
Surge Withstand Capability
|
|
|
|
|
CABLE IN PORT
|
|
CAT B3, 6KV, 3KA
|
Input port-IEEE C62.41-1991 Category B-3 Combo wave,6kV,3kA
|
|
Subscriber PORT
|
|
CAT A3, 6KV, 200A
|
output port-IEEE C62.41-1991 Category A-3 ring wave,6kV,200A
|
|
Connector
|
|
F-FEMALE
|
All port
|
|
Impedance
|
|
75 ohm
|
All port
|
|
Size
|
|
35W*96L*22H
|
|
