GDISO-002 隔离器-30 years focus on CATV, MATV & SAT TV. Network Communication OEM/ODM manufacturer

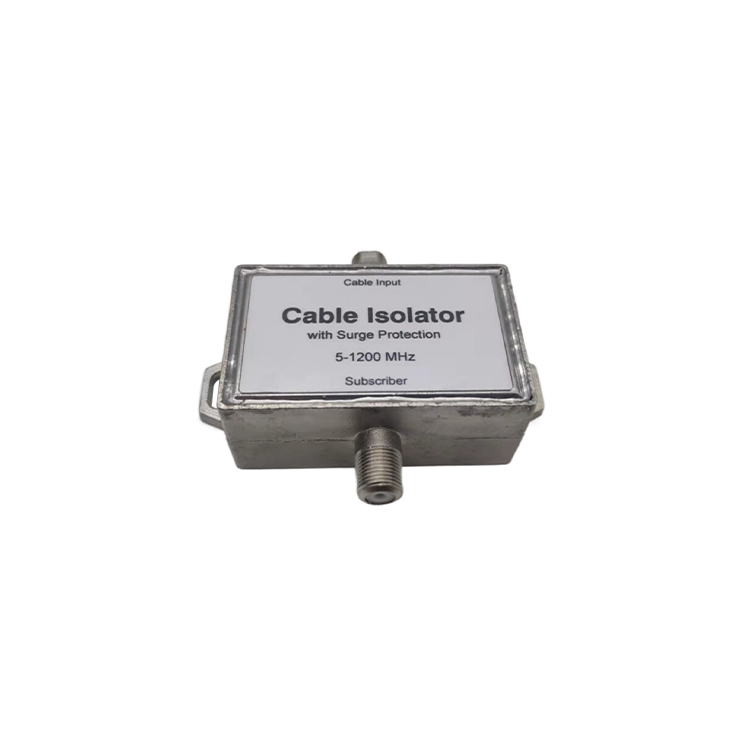

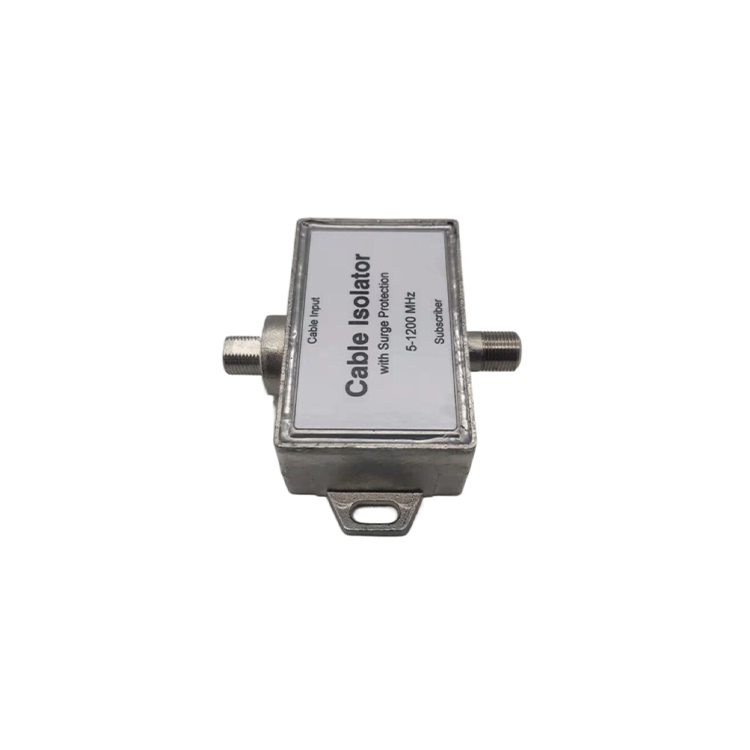

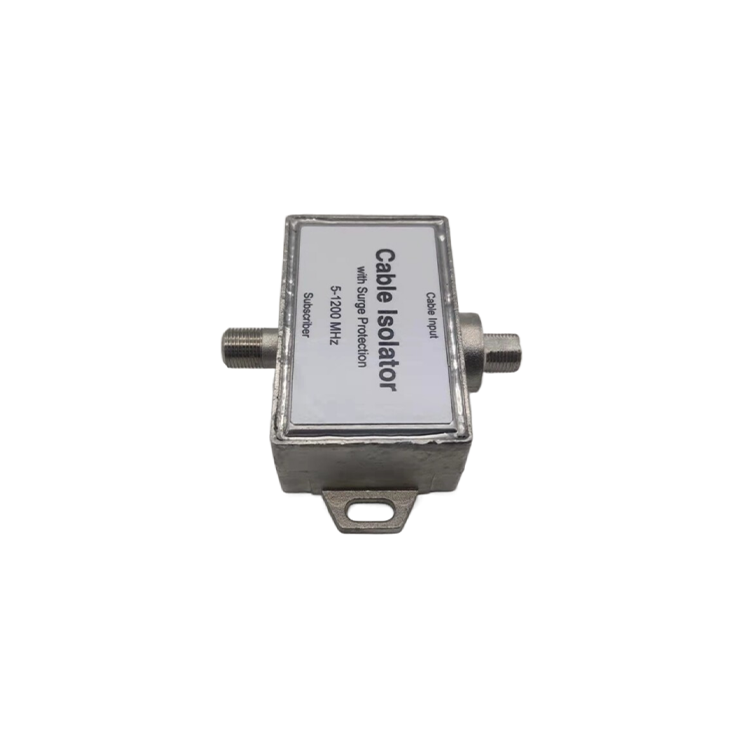

GDISO-002 隔离器

(5492)

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDISO-002(5492)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ RANGE		5-1200MHz
INSERTION LOSS
	-1.5dB Max	-2.0dB Max	5-1000MHz
	-2.0dB Max	-2.5dB Max	1001-1200MHz
FLATNESS	±0.5dB	±0.5dB Max	5-1200MHz
RETURN LOSS	-17dB Min	-14dB Min	5-1200MHz
GROUP DELAY		10nS Max	10-1200MHz
SHIELDING		65dB Min	5-1200MHz
COMPLIANCE
		AS/NZS 60950.1:2011	@Safety
		AS/NZS CISPR 22:2009	@Radio disturbance characteristics
ISOLATION
		2KV AC isolation	@50Hz
		8KV impulse withstand	@ten 700uS impulses
HOUSING		Zinc alloy die-cast
Impedance		75 ohm
Connector		F Type female
