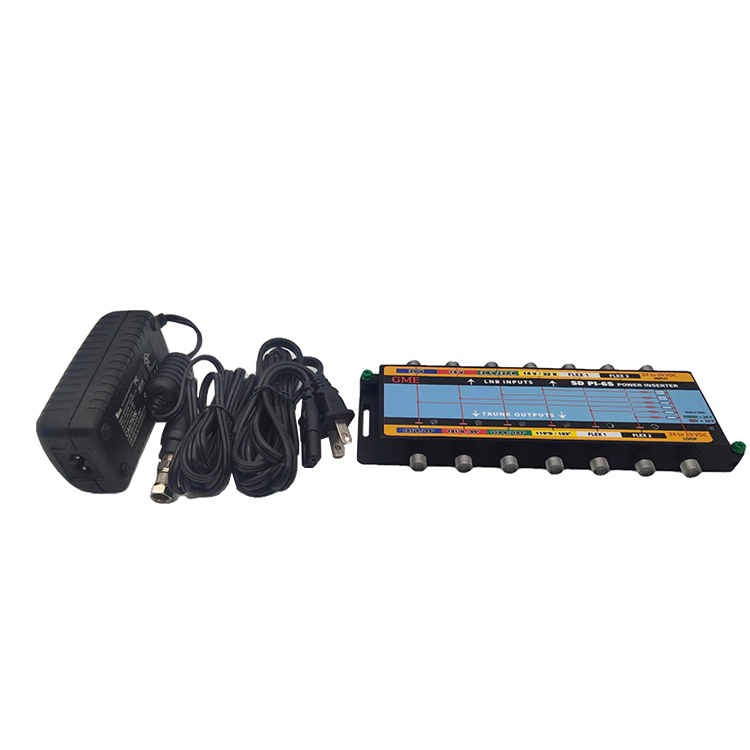

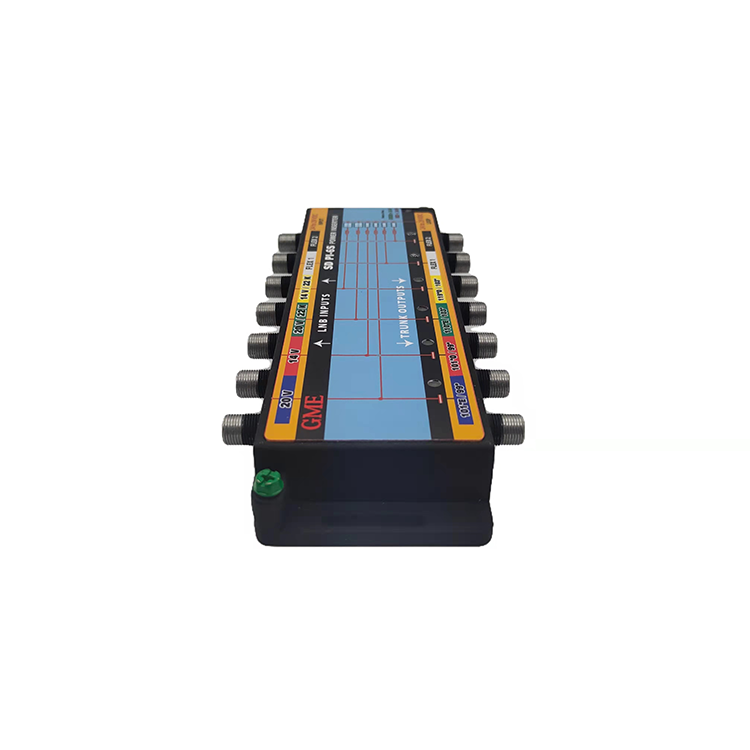

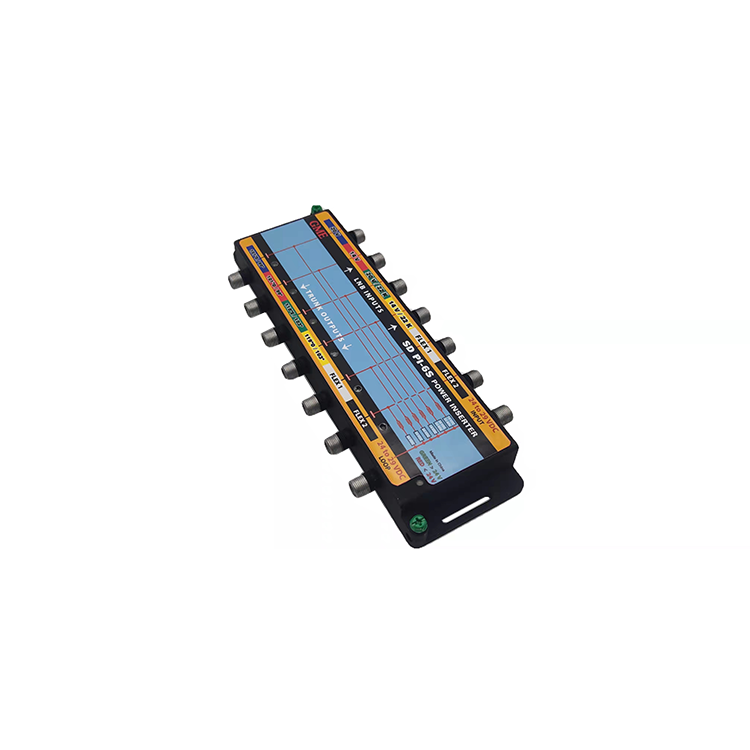

Place of Origin: Guangdong,China
|
|
Model Number: GDINS-001(SD PI-6S)
|
|
ITEM
|
|
Q.C.LIMIT
|
TEST CONDITIONS
|
|
FREQ. RANGE
|
|
|
250-2150 MHz
|
|
INSERTION LOSS
|
|
|
|
|
-1.0 dB
|
-1.5 dB MAX
|
250-2150 MHz
|
|
ISOLATION
|
|
|
|
|
BETWEEN PORTS
|
-40dB
|
-35dB MIN
|
250-2150 MHz
|
|
RETURN LOSS
|
|
|
|
|
INPUT/OUTPUT
|
-12dB
|
-10dB MIN
|
250-2150 MHz
|
|

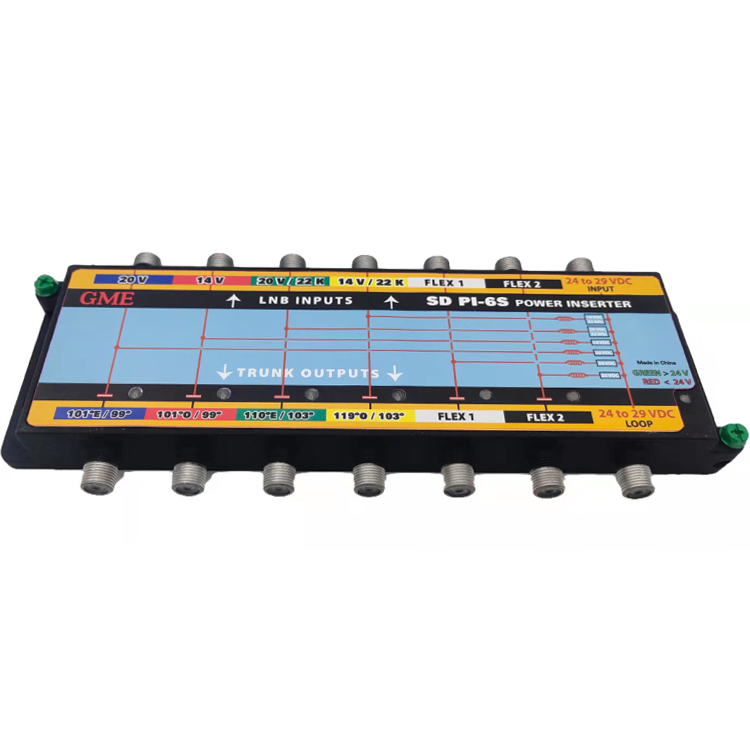

DC POWER PROVIDED INPUTS
|
|
|
|
|
PORT#1 (20V 101°& 99°)
|
|
20±0.5 VDC
|
@50-350 mA
|
|
PORT#2 (14V 101°& 99°)
|
|
13.5±0.5 VDC
|
@50-350 mA
|
|
PORT#3 (22KHz & 20V 110°& 103°)
|
|
20±0.5 VDC(+22KHz)
|
@50-350 mA
|
|
PORT#4 (22KHz & 14V 119°& 103°)
|
|
13.5±0.5 VDC(+22KHz)
|
@50-350 mA
|
|
PORT#5 (FLEX PORT1)
|
|
20±0.5VDC
|
@50-350 mA
|
|
PORT#6 (FLEX PORT2)
|
|
20±0.5VDC
|
@50-350 mA
|
|
22KHz SIGNAL CHARACTERISTICS
|
|
|
|
|
FREQ
|
|
22±4KHz
|
|
|
DUTY CYCLE
|
|
±50﹪
|
＜24.0 VDC
|
|
LEVEL
|
|
400mVp-p MIN
|
＞24.0 VDC
|
|
POWER LED COLOR
|
|
RED
|
|
|
CORRESPONDING TO:
|
|
GREEN
|
|
|
POWER SWITCHING
|
|
24V-29VDC
|
POWER SWITCHING
|
|
INPUT
|
|
100-240VAC / 50/60Hz
|
ALL PORTS
|
|
OUTPUT
|
|
24VDC/2.08A
|
ALL PORTS
|
|
IMPEDANCE
|
|
75 OHM
|

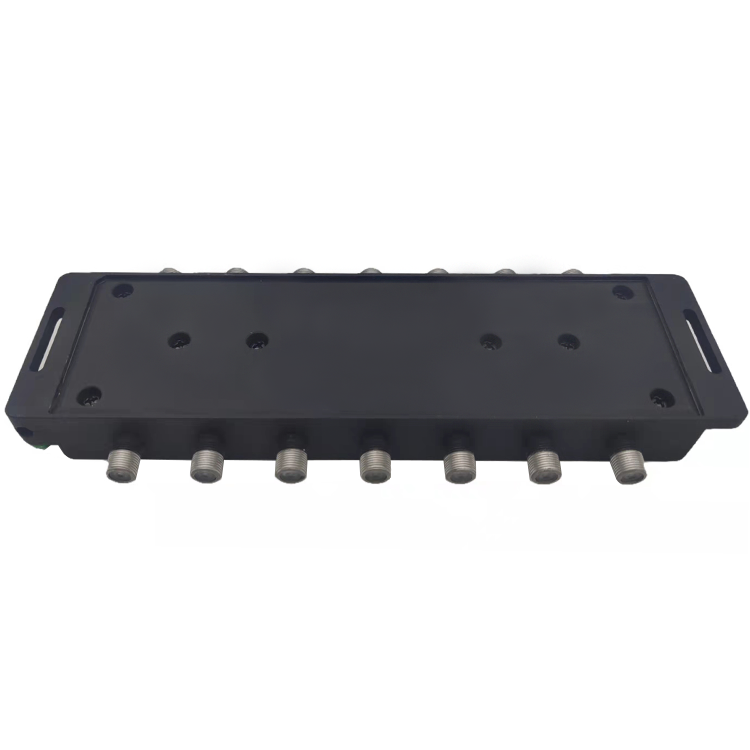

(6)SCTE INDOOR F
|
|
CONNECTOR
|
|
“F”TYPE FEMALE
|
|
|
NUMBER OF INPUT/OUTPUT PORTS
|
|
|
|
