GDCHA-001

(CEMMCHASIS)

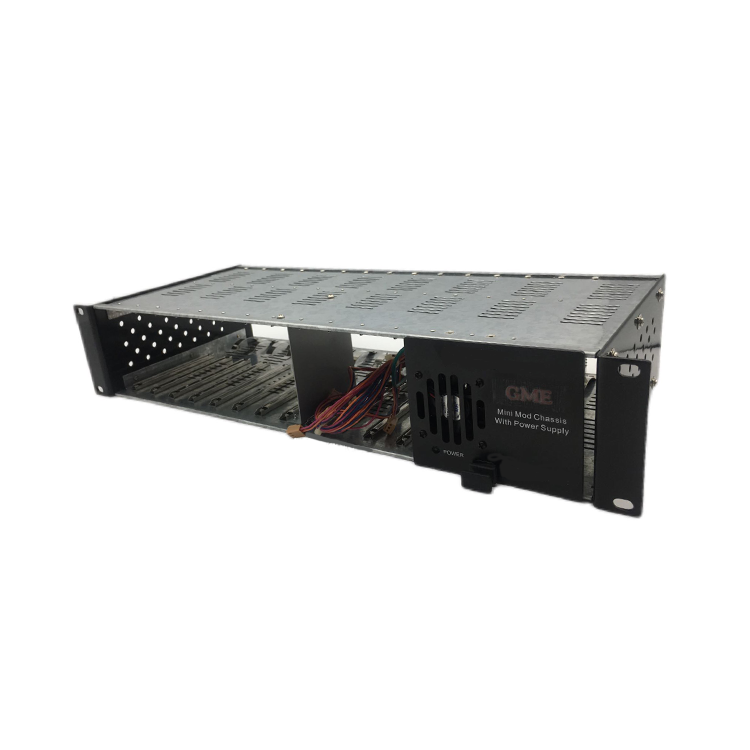

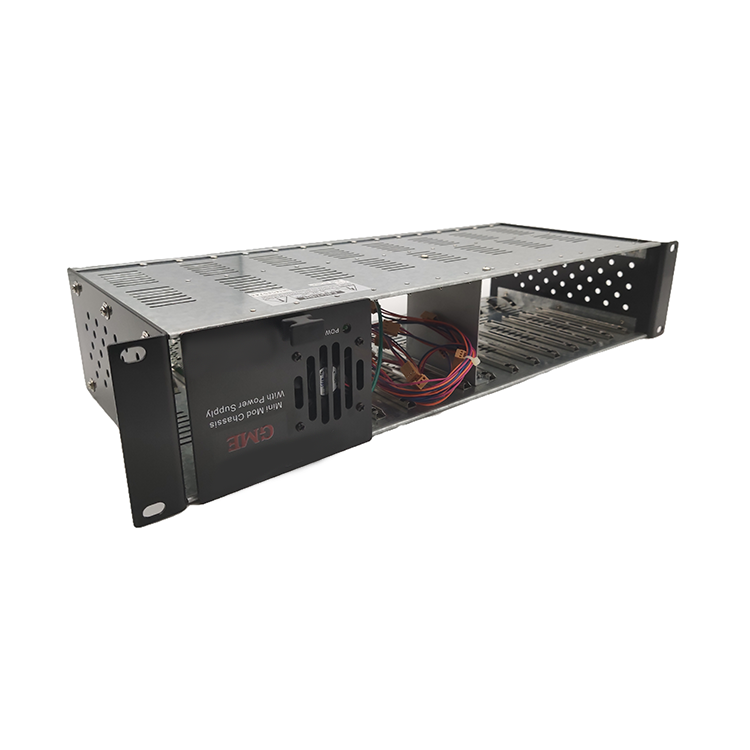

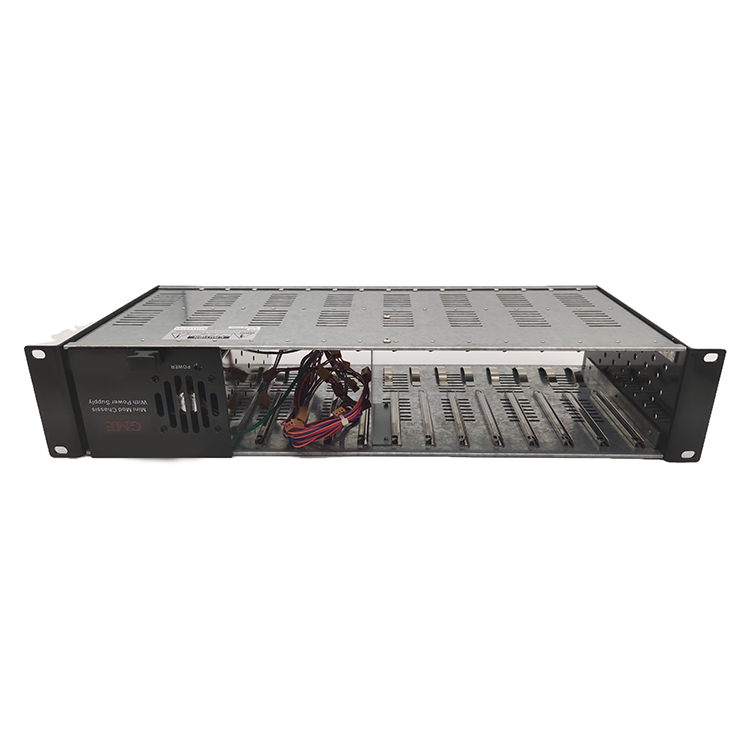

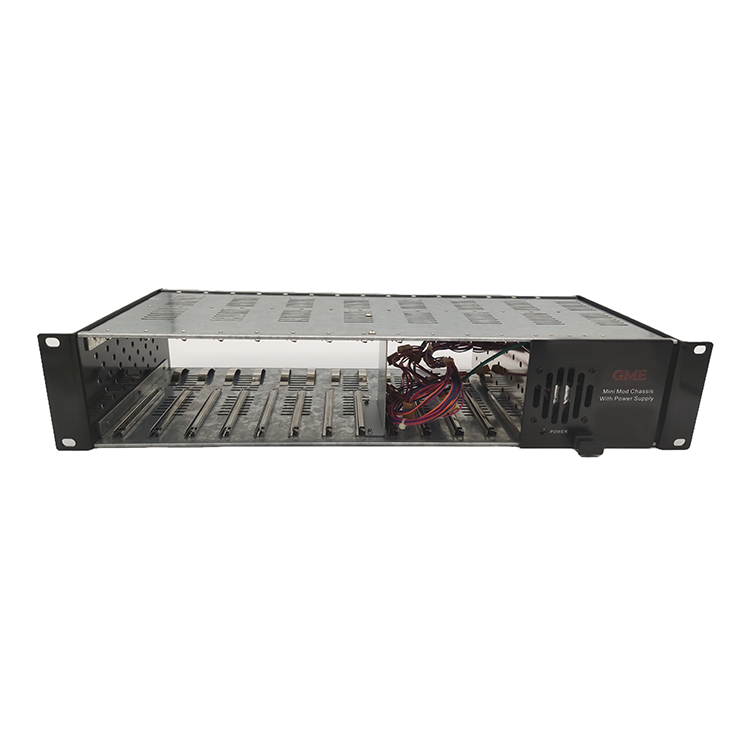

MODULAR HEADEND SYSTEM MAIN FRAME

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDCHA-001(CEMMCHASIS)
Size	19"Lx7.5"Dx3.5"H
Power Supply	Switching power supply, built-in cooling fan
	Input 90~260VAC
Power Output for module	+12VDC 4.5A Max. / +50VDC 6.5A
Operating Temperature	-10°C to 50°C
Power Cord	72" center 3 pin receptacle, "D" type.
Weight	3.37 kgs/7.43lbs
Slot Number	12
