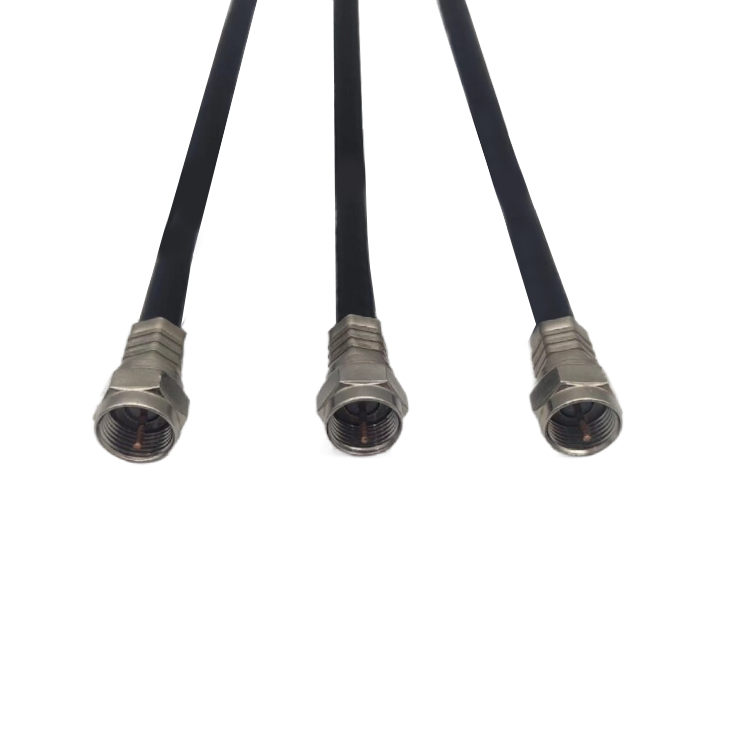

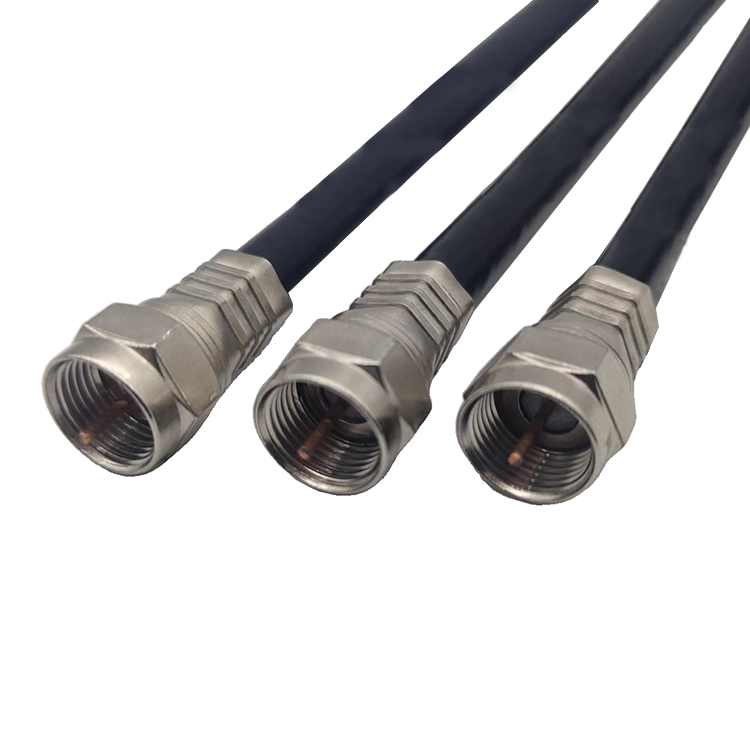

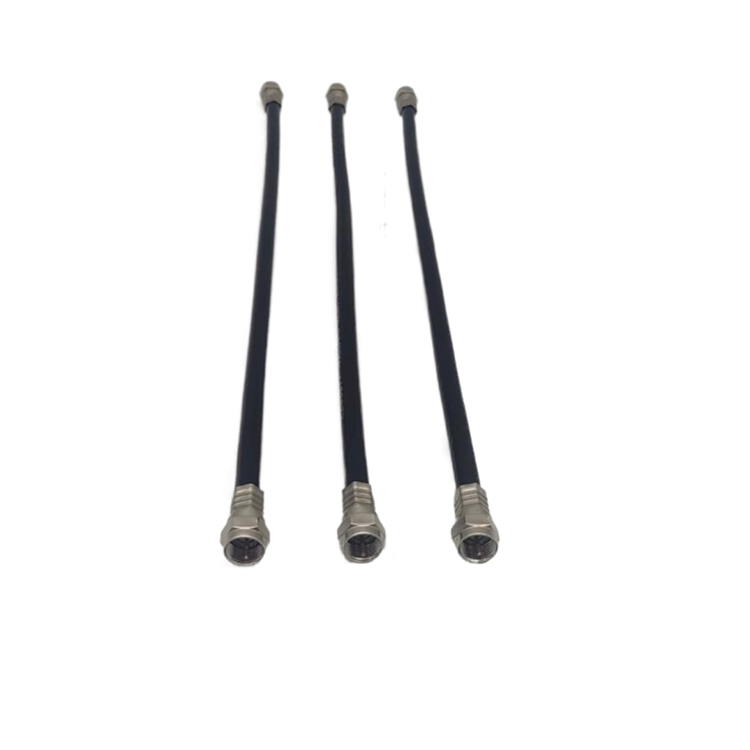

GDCA-002

(RG6 CABLE )

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDCA-002(RG6 CABLE )
ITEM	Description
1.Cable	RG6
2.Length	310±3mm
3.Connector	F Type Male
4.Impedance	75 ohm
5.Cable Outside Diameter	7mm
6.Operating Temperature	-30℃ to +70 ℃
7.Electrical Performance
Insertion Loss
-0.2dB Typical	5-1000MHz
-0.3dB Typical	1001-2150MHz
-0.3dB Typical	2151-2400MHz
-0.5dB Typical	2401-3000MHz
Return Loss
-35dB Typical	5-1000MHz
-25dB Typical	1001-2150MHz
-20dB Typical	2150-3000MHz
