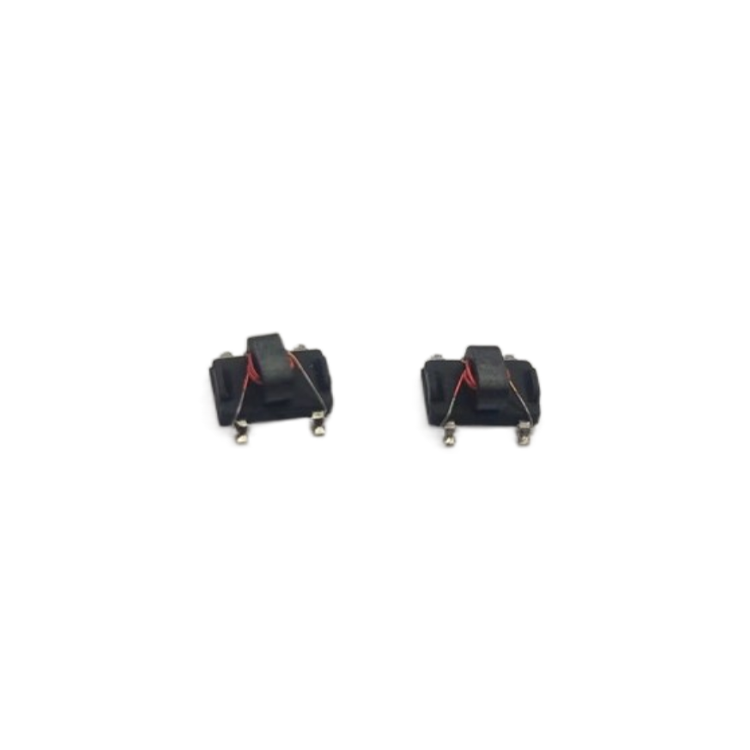

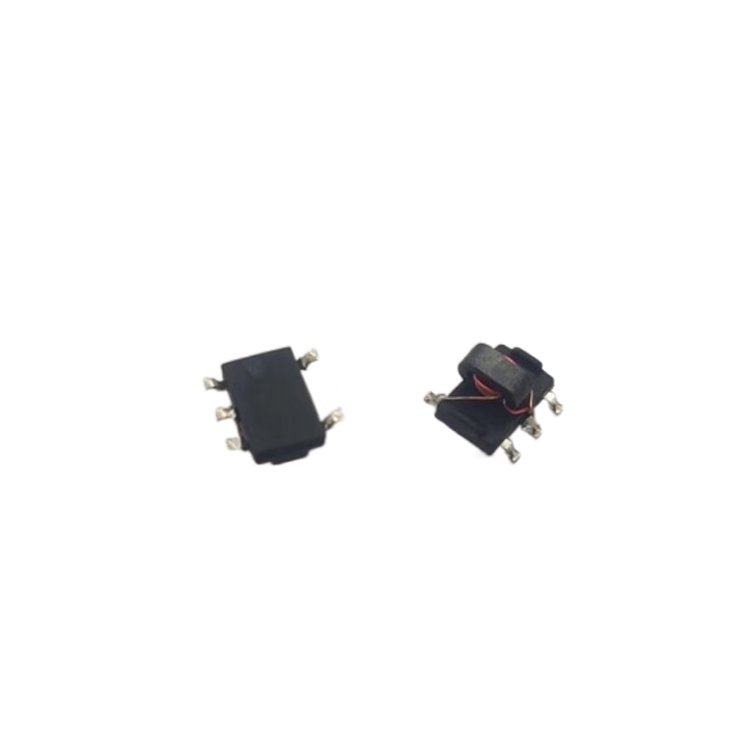

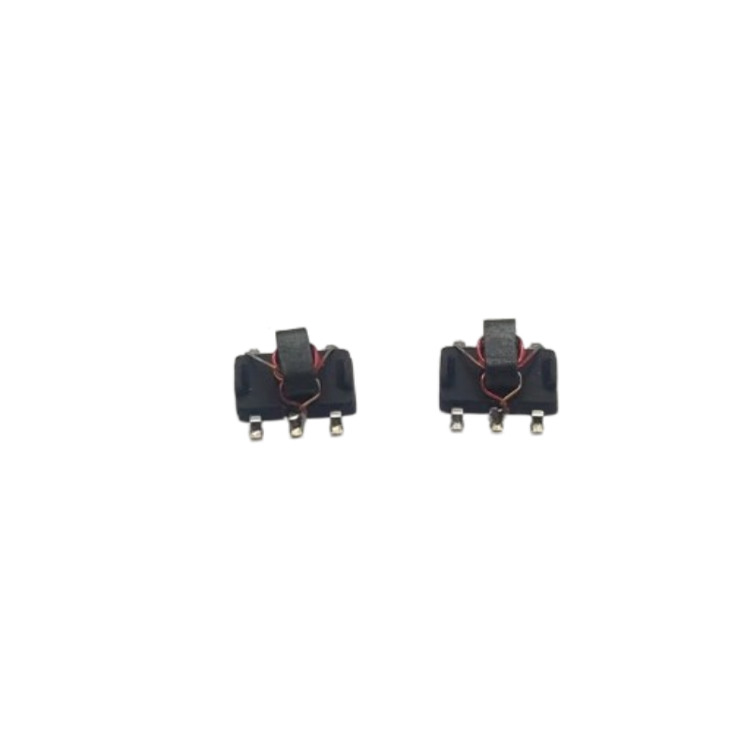

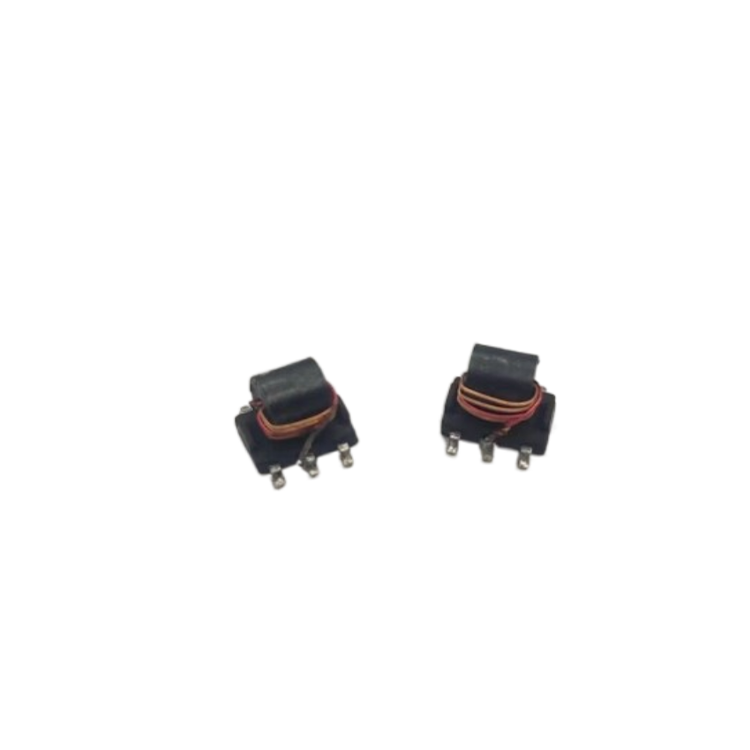

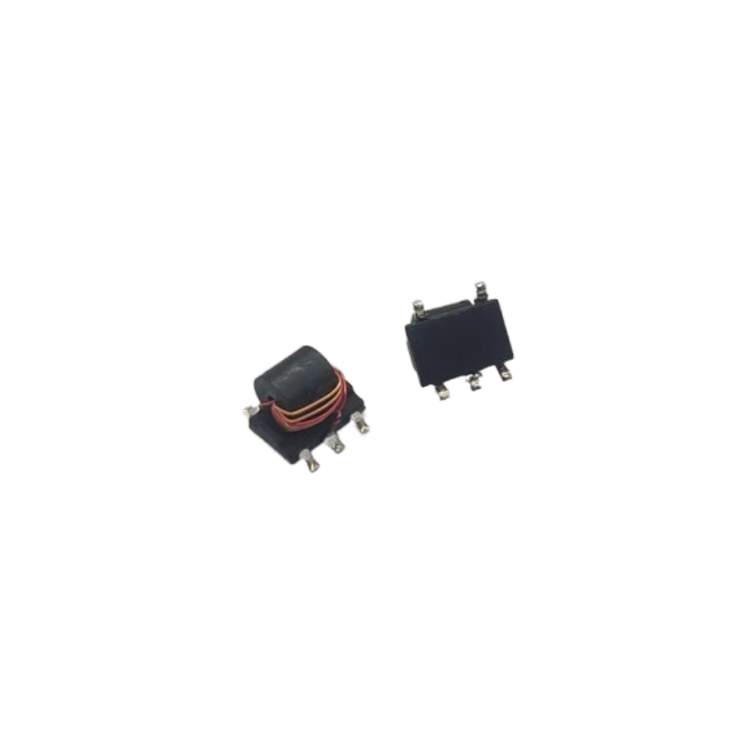

GDBA-010 巴伦

(BS-1G-A&B-3 )

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDBA-010(BS-1G-A&B-3)
Electrical Specifications: TA = 25°C, Z0 = 75 Ω, Pin = 0dBm
Parameter	Test Conditions	Units	Min	Typ	Max
Frequency Range		MHz	5		1000
Impedance		Ω		75
Insertion loss
In to out1	5 - 1000 MHz	dB		3.6	4.0
In to out2	5 - 1000 MHz	dB		3.7	4.0
Input Return Loss	5 - 1000 MHz	dB	17	20
Output Return Loss	5 - 1000 MHz	dB	17	20
Isolation	5 - 250 MHz	dB	24	28
	250 - 1000 MHz	dB	20	22
