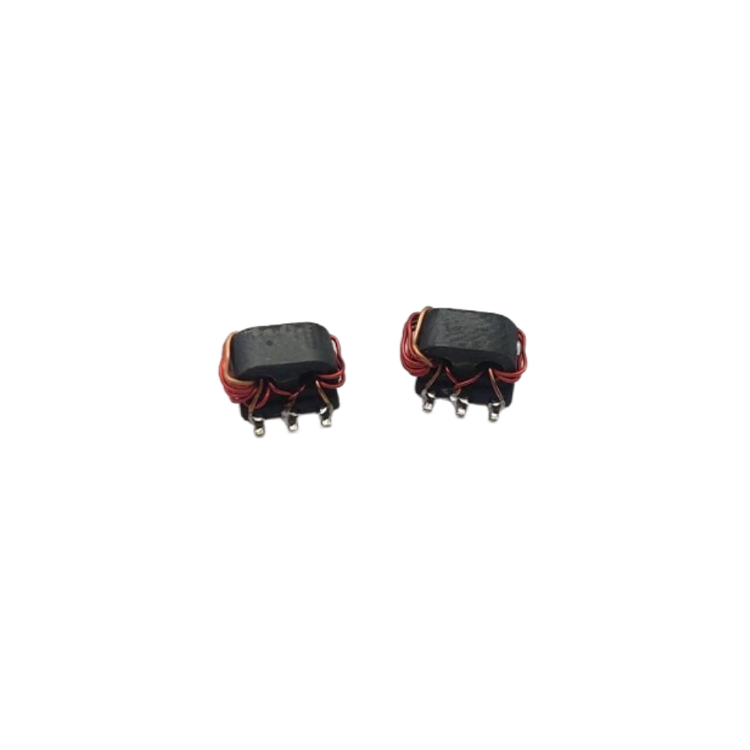

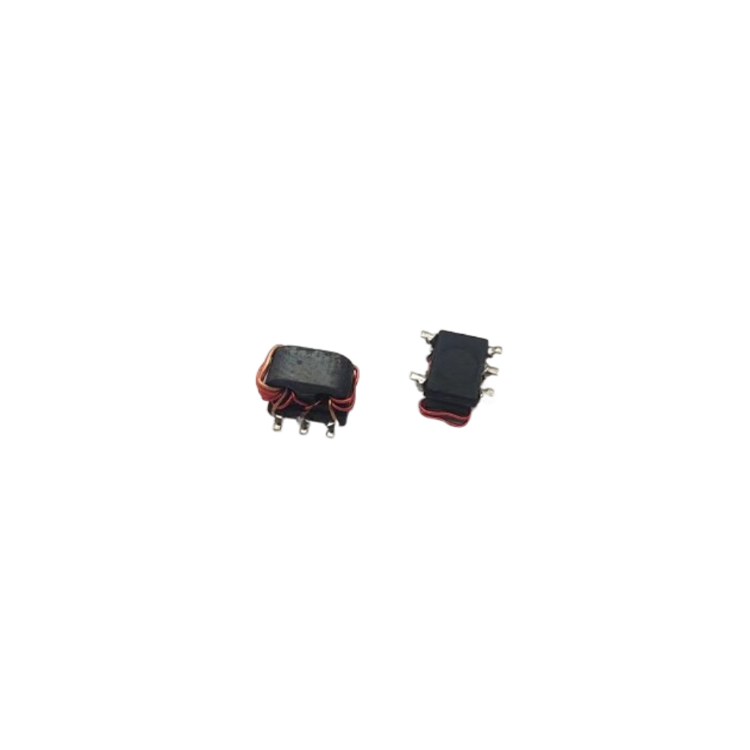

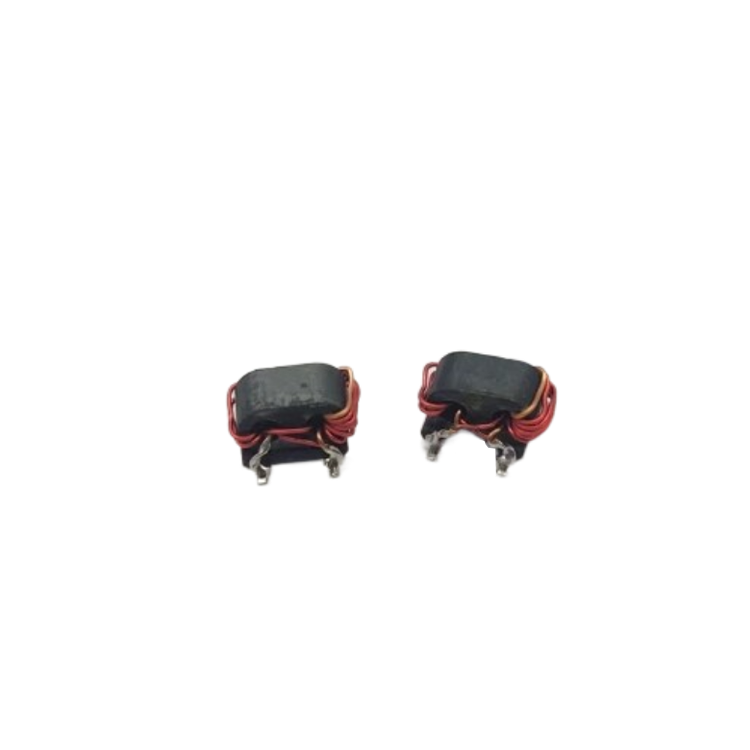

GDBA-007 巴伦

(BDC-1G-11dB )

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDBA-007(BDC-1G-11dB )
Electrical Specifications: TA = 25°C, Z0 = 75 Ω, Pin = 0dBm
Parameter	Test Conditions	Units	Min	Typ	Max
Frequency Range		MHz	5		1000
Impedance		Ω		75
Coupling		dB		11
Coupling Loss	5 - 1000 MHz	dB		11.0	±1.0
Main Line Loss	5 - 500 MHz	dB		1.2	1.8
	500 - 1000 MHz	dB		1.8	2.3
Input Return Loss	5 - 1000 MHz	dB	14	19
Output Return Loss	5 - 1000 MHz	dB	14	20
Coupling Return Loss	5 - 1000 MHz	dB	14	20
Isolation	5 - 250 MHz	dB	25	27
	250 - 1000 MHz	dB	20	24
