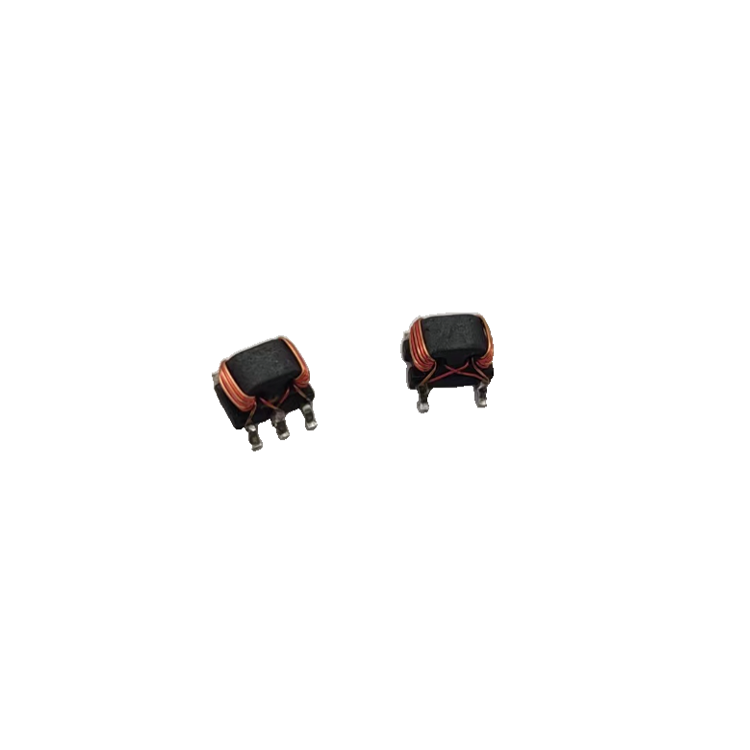

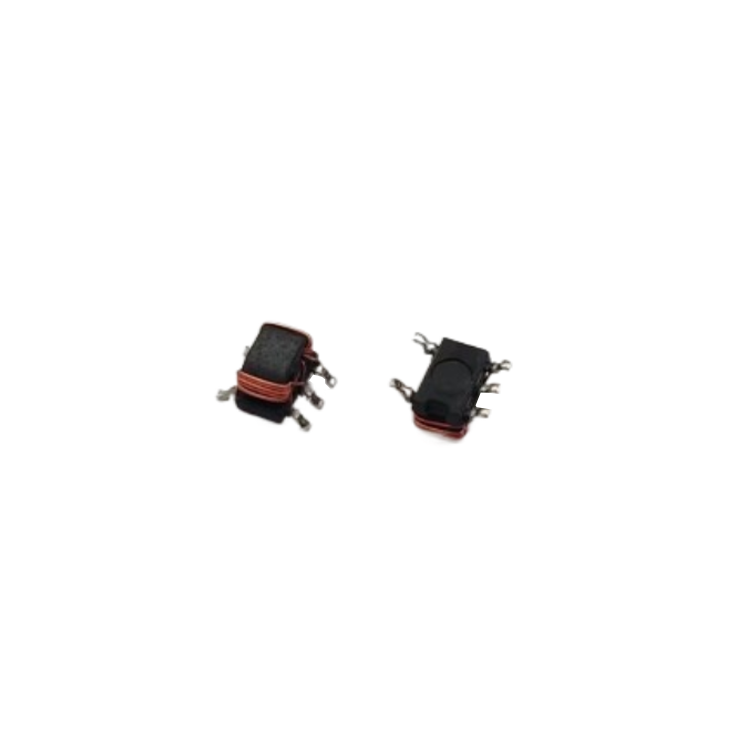

GDBA-004 巴伦

(BM-2 )

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDBA-004(BM-2)
Electrical Specifications: TA = 25°C, Z0 = 75 Ω, Pin = 0dBm
Parameter	Test Conditions	Units	Min	Typ	Max
Frequency Range		MHz	5		1000
Impedance		Ω		75
Main line loss
out1	5 - 1000 MHz	dB		1	2.0
out2	5 - 1000 MHz	dB		1.5	2.5
Amplitude Balance	5 - 1000 MHz	dB	0	0.7	1.5
Phase Balance	5 - 1000 MHz	Degrees	0	3	15
Input Return Loss	5 - 470 MHz	dB	15	20
	470 - 1000 MHz	dB	10	15
