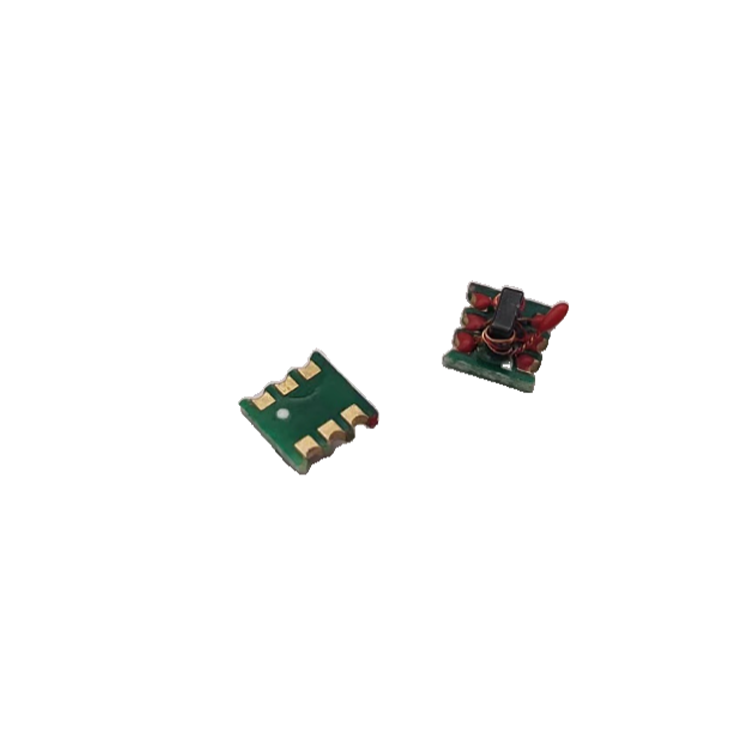

GDBA-002 巴伦

(BS-3G)

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDBA-002(BS-3G)
Electrical Specifications: TA = 25°C, Z0 = 75 Ω, Pin = 0dBm
Parameter	Test Conditions	Units	Min	Typ	Max
Frequency Range		MHz	5		2400
Impedance		Ω	-	75
Main line Loss(out1)	5 - 1600 MHz	dB	-	O.3	1.5
	1600 - 2400 MHz	dB	-	0.8	2.5
Main line Loss(out2)	5 - 1600 MHz	dB	-	0.4	1.8
	1600 - 2400 MHz	dB	-	2	4
Input Return Loss	5 - 1600 MHz	dB	20	35	-
	1600 - 2400 MHz	dB	11	20	-
Output1 Return Loss	5 - 1600 MHz	dB	18	30	-
	1600 - 2400 MHz	dB	9	17	-
Output2 Return Loss	5 - 1600 MHz	dB	18	25	-
	1600 - 2400 MHz	dB	11	16	-
Isolation	5 - 1600 MHz	dB	22	45	-
	1600 - 2400 MHz	dB	12	20	-
