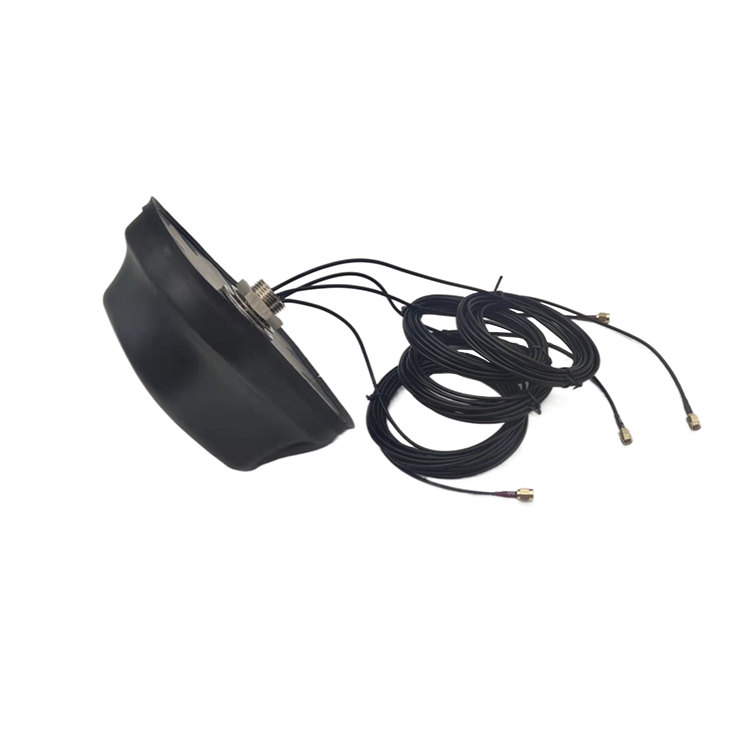

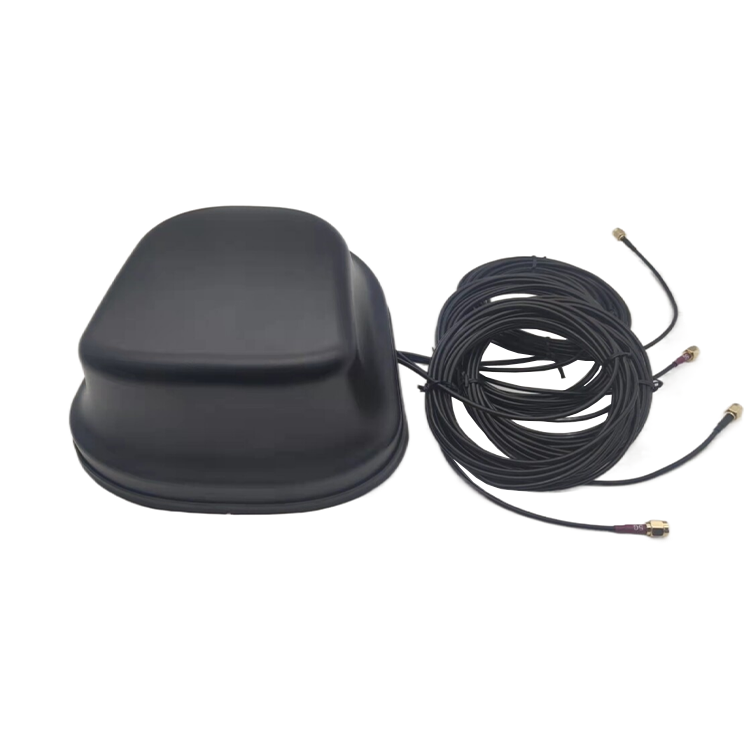

GDANT-006 天线

5G Antenna

GNSS+NR MIMO×4+WIFI MIMO Antenna

咨询热线：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDANT-006
GNSS Antenna	Frequency	GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6
	Polarization	RHCP
	LNA Gain	40±2dB
	Noise Figure	≤2.0dB
	Supply Voltage	3~12V DC
	Current Consumption	≤60mA
	V.S.W.R	＜2.0
	Impedance	50Ω
*5G NR Antenna MIMO4**	Frequency Range	698~960MHz/1710~2690MHz/2900~3800MHz
	V.S.W.R	＜3.0
	Polarization	Linear
	Gain	4dBi（Typ.）
	Impedance	50Ω
*WIFI Antenna MIMO2**	Frequency Range	2400~2483.5MHz/4900~5925MHz
	V.S.W.R	＜2.5
	Polarization	Linear
	Gain	4dBi（Typ.）
	Impedance	50Ω
Mechanical	Cable	LMR100*7

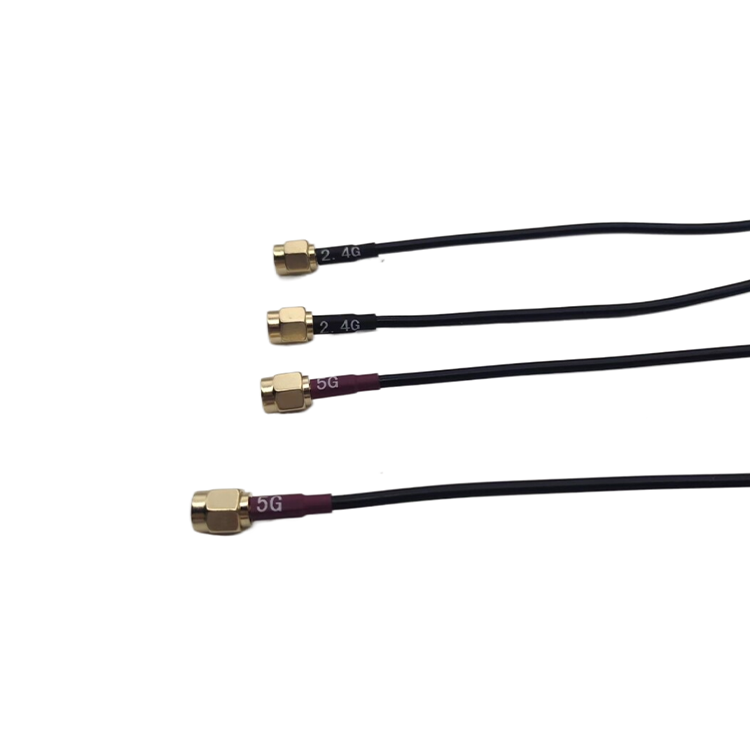

	Connector	SMA or others
	Material	PC/ABS

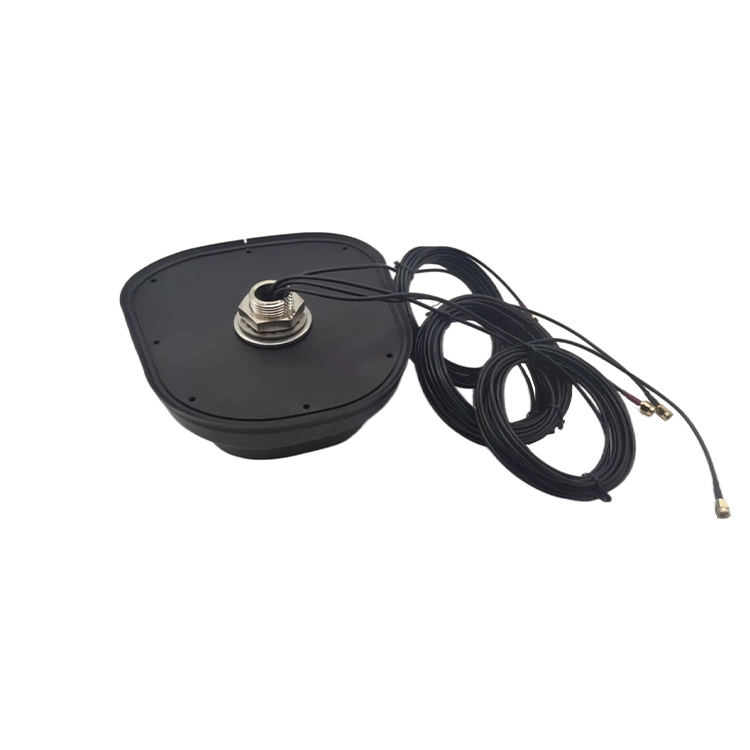

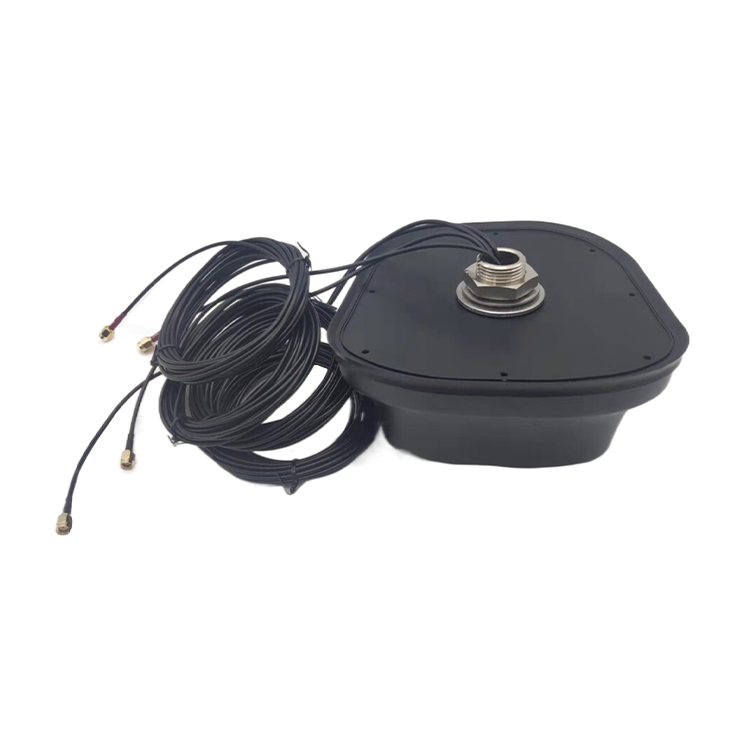

	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
