GDAMP-065 放大器

(4004)

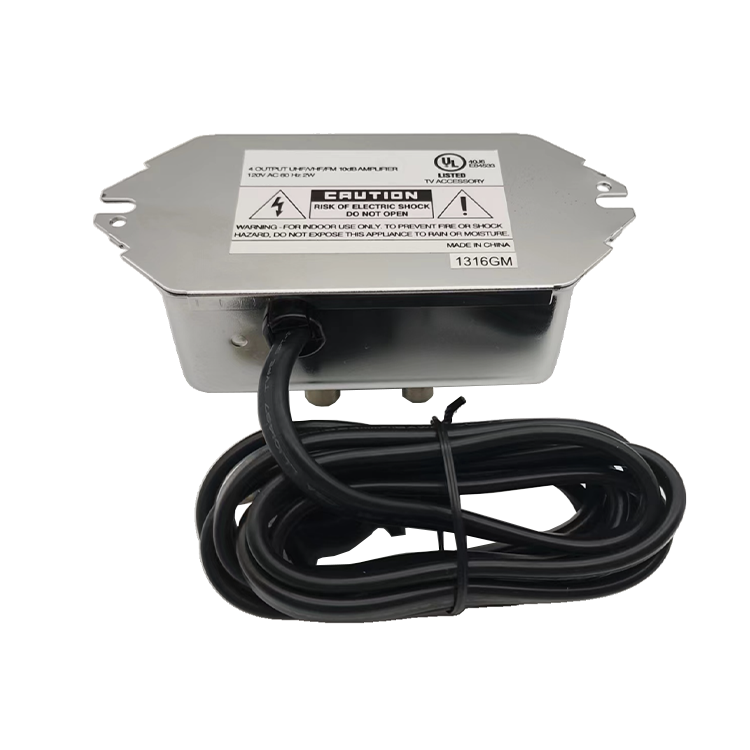

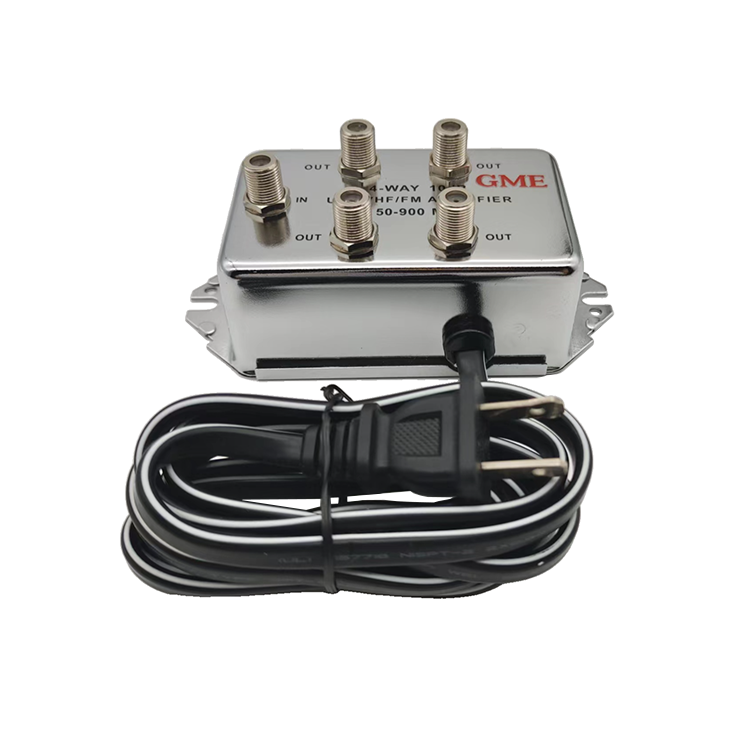

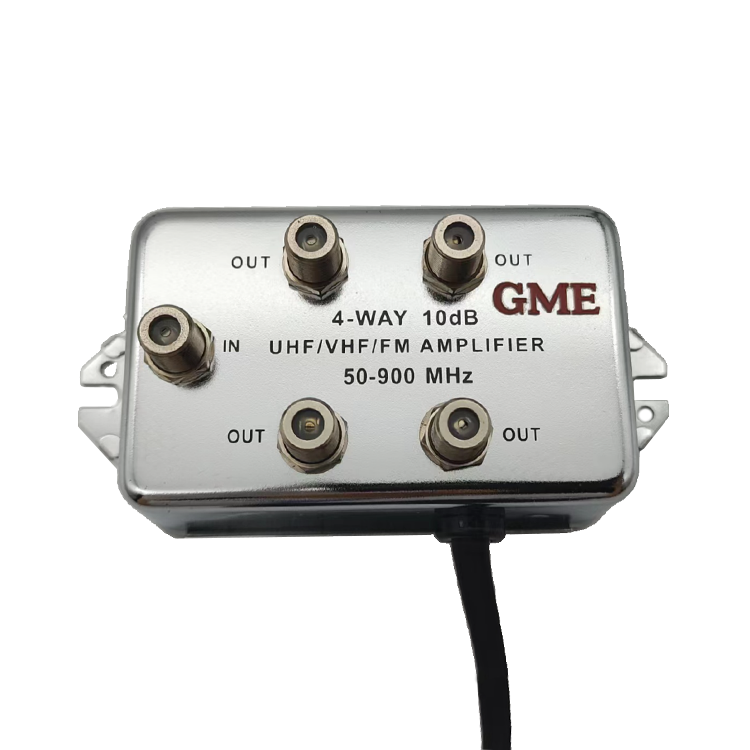

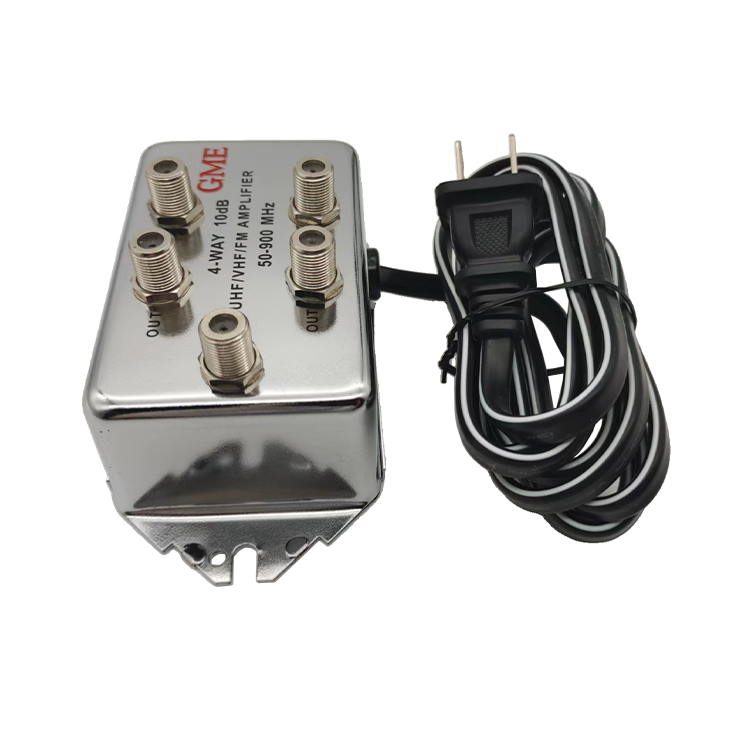

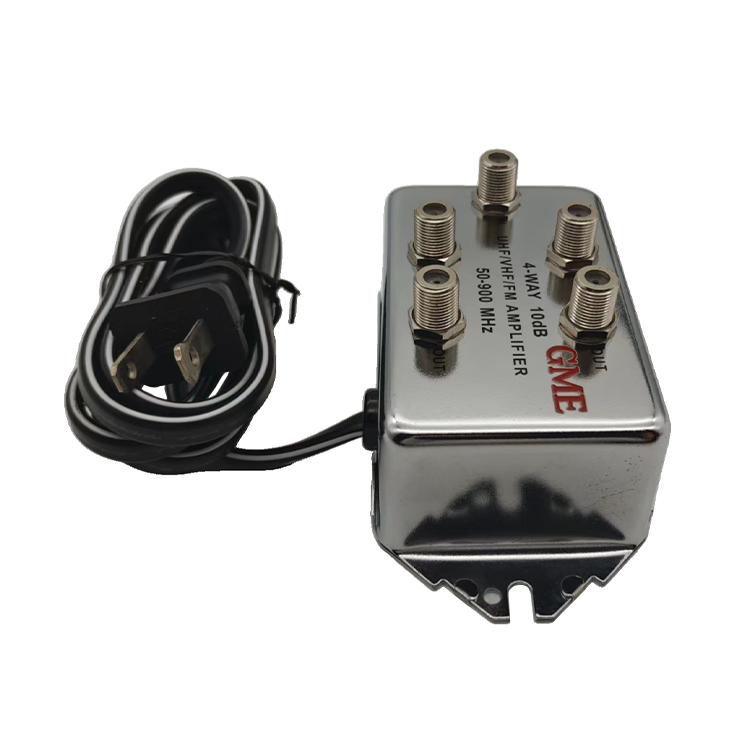

4-WAY 10dB UHF/VHF/FM Amplifier 50-900MHz

咨询热线：0755-27091915

Place of Origin: Guangdong,China
Model Number:GDAMP-065(4004)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
1. FREQ RANGE
FORWARD PATH			54-1000MHz
RETURN PATH			5-42MHz

2. GAIN
FORWARD PATH	2.5dB	2.0dB MIN	54-1000MHz

3. INSERTION LOSS
	-8.0dB	-8.5 dB MAX	5-42MHz

4. ISOLATION
	-20.0dB	-18.0dB MIN	5-42MHz
	-20.0dB	-18.0dB MIN	54-1000MHz
5. RETURN LOSS
FORWARD PATH INPUT	-9.0dB	-8.0dB MIN	54-1000MHz
OUTPUT	-14.0dB	-12.0dB MIN	54-1000MHz
RETURN PATH IN/OUT	-14.0dB	-12.0dB MIN	5-42MHz
6．NOISE FIGURE
	6.0dB	7.0dB MAX	54-1000MHz
7．INPUT CAPABILITY
		95 dBuV MIN	CH.3（1 dB COMPRESSION）
8．POWER SUPPLY
INPUT		120VAC/60Hz
OUTPUT		12VDC/50mA
Efficiency		LEVEL VI
