GDAMP-058 放大器-30 years focus on CATV, MATV & SAT TV. Network Communication OEM/ODM manufacturer

GDAMP-058 放大器

(AMP1020)

咨询热线：0755-27091915

Place of Origin: Guangdong,China
Model Number:GDAMP-058-2(AMP1020)

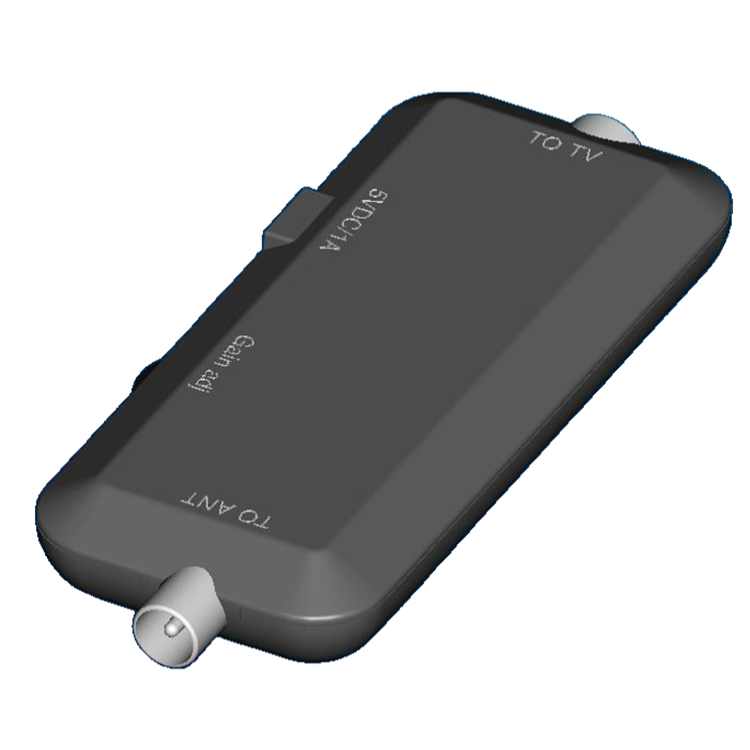

DESCRIPTION：HDTV Antenna Amplifier Dual Mode Amplifier
ITEM	TYPICAL	Q.C.LIMIT	TEST CONDITIONS
Frequency:
		47-230 MHz	VHF
		470-806 MHz	UHF
GAIN
	25dB	23dB Min	47-230 MHz
	22dB	21dB Min	470-806 MHz
Gain ADJ range
		5-20dB.	47-230 MHz
		5-20dB.	470-806 MHz
RETURN LOSS Input
	-12dB	-10dB Min	47-230 MHz
	-10dB	-8dB Min	470-806 MHz
RETURN LOSS Output
	-12dB	-10dB Min	50-60Hz
	-12dB	-10dB Min	50-60Hz
Power supply adaptor
Input voltage	100-240VAC	4.0dB Max	174~216 MHz
Output voltage	5VDC/1.0A	4.0dB Max	470~608 MHz
Connector
	IEC female		Input
	IEC female		Output
Operating Temperature			_20℃~+℃60
