Place of Origin: Guangdong,China
|
|
Model Number:GDAMP-057-2(4005S-USB)
|
|

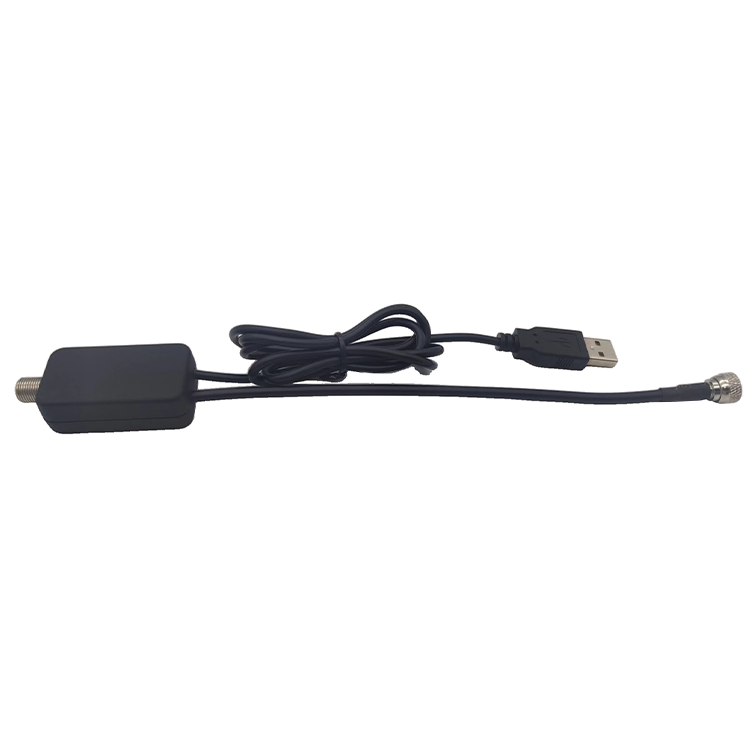

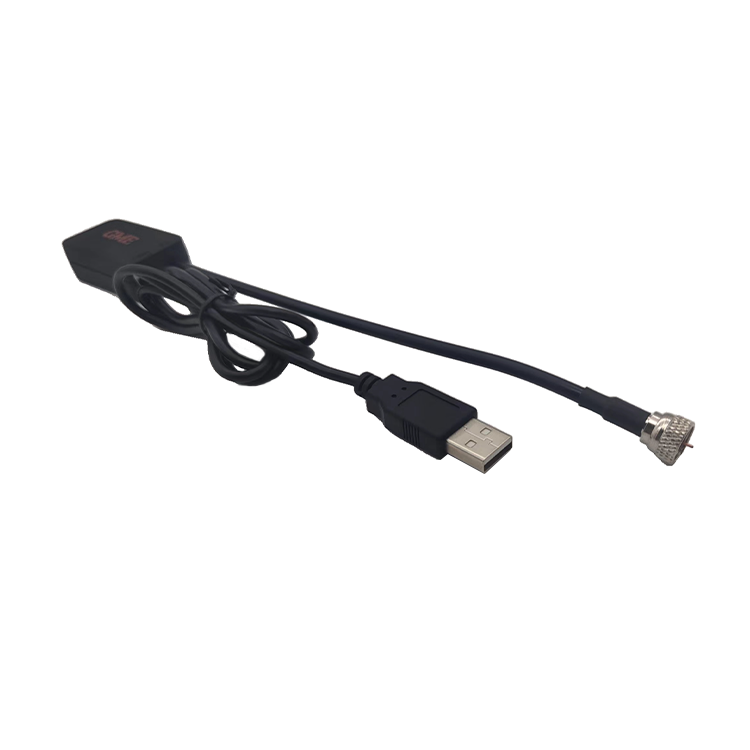

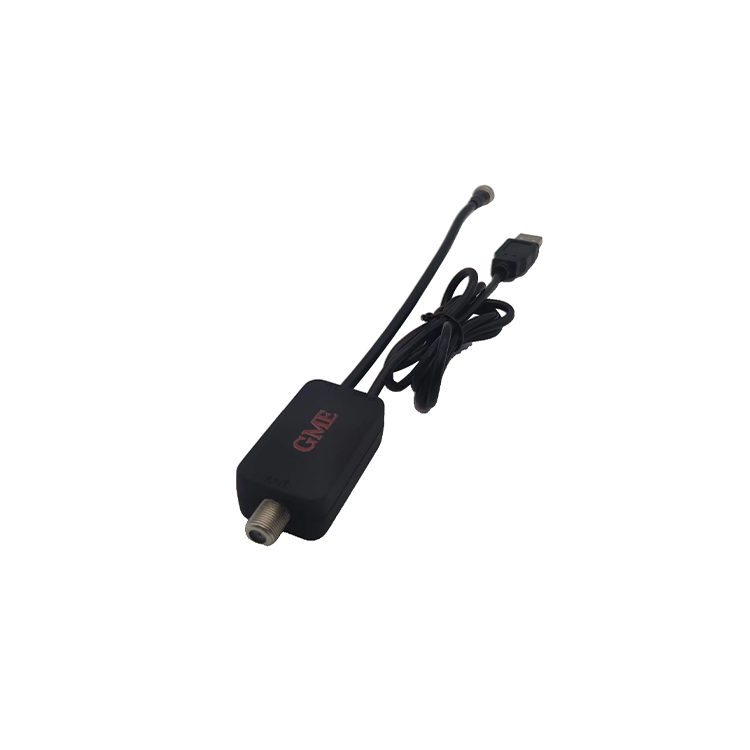

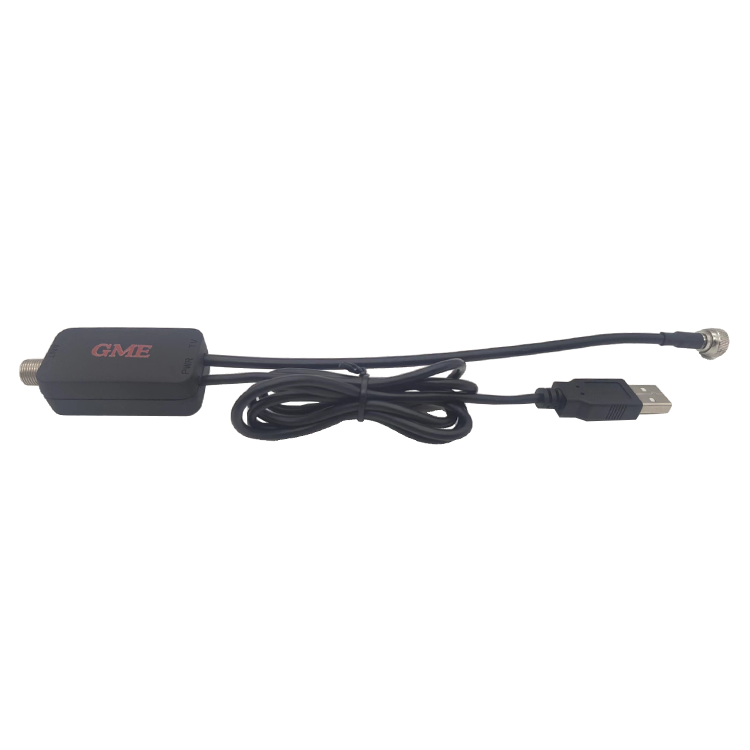

DESCRIPTION：Antenna amplifier
|
|
|
|
|
|
|
Frequency:
|
|
|
|
|
VHF BAND
|
|
|
54~88 MHz
|
|
|
|
174~216 MHz
|
|
UHF BAND
|
|
|
470~608 MHz
|
|
GAIN
|
|
12.0dB Min
|
54~88 MHz
|
|
|
12.0dB Min
|
174~216 MHz
|
|
|
10.0dB Min
|
470~608 MHz
|
|
REJECTION
|
|
-15dB Min
|
608MHz vs 670-1000MHz
|
|
RETURN LOSS
|
|
|
|
|
VHF : Input/Output
|
|
-10dB Min
|
54~88MHz
|
|
|
-10dB Min
|
174~216 MHz
|
|
UHF : Input/Output
|
|
-10dB Min
|
470~608 MHz
|
|
Noise Figure
|
|
4.0dB Max
|
54~88 MHz
|
|
|
4.0dB Max
|
174~216 MHz
|
|
|
4.0dB Max
|
470~608 MHz
|
|
FM TRAP
|
|
|
|
|
88MHz / 174MHz
|
-2.5dB
|
-3.0dB max.
|
@BETWEEN TO OVER GAIN
|
|
98~108 MHz
|
-10.0dB
|
-7.0dB max.
|
@BETWEEN TO OVER GAIN
|
|
CEA IMD
|
|
|
|
|
a. Input Freq.
|
|
-44dB Min
|
@Inject two signals 200,202MHz at -25.3dBm Test Spurious Freq. 198 & 204MHz
|
|
b. Input Freq.
|
|
-44dB Min
|
@Inject two signals 80,100MHz at -25.3dBm Test Spurious Freq. 180MHz
|
|
c. Input Freq.
|
|
-44dB Min
|
@Inject two signals 580,582MHz at -29.5dBm Test Spurious Freq. 578 & 584MHz
|
|
d. Input Freq.
|
|
-44dB Min
|
@Inject the VHF test signal200MHz at -22.3dBm and inject the UHF test signal 500MHz at-26.5dBm Test Spurious Freq700MHz
|
|
Operating temperature
|
|
-35°C ~ +65°C
|
|
|
Storage temperature
|
|
-40°C ~ +70°C
|
|
|
Power Suply
|
|
|
USB 5VDC
|
|
Output impedance
|
|
75 ohm
|
@ Unbalanced
|
