Place of Origin:Guangdong,China
|
|

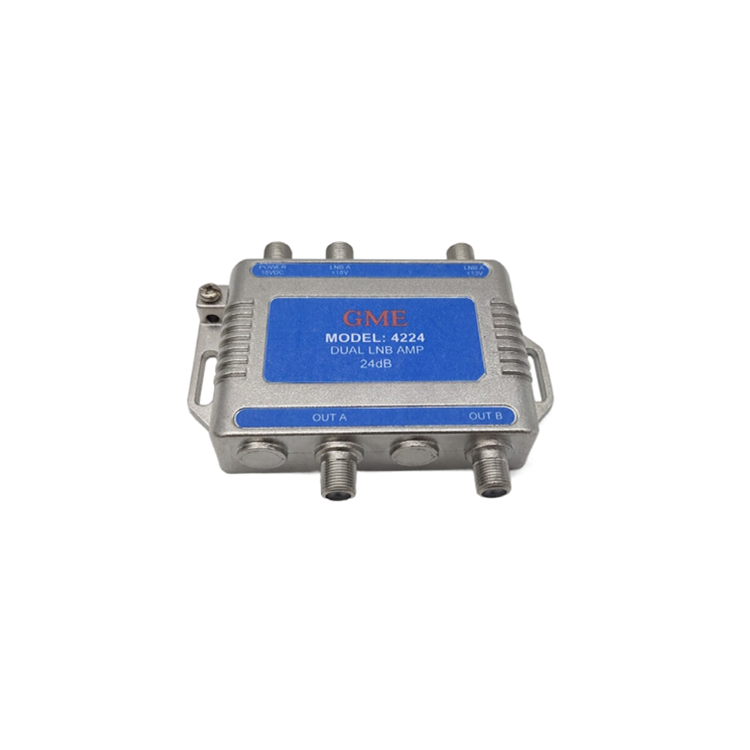

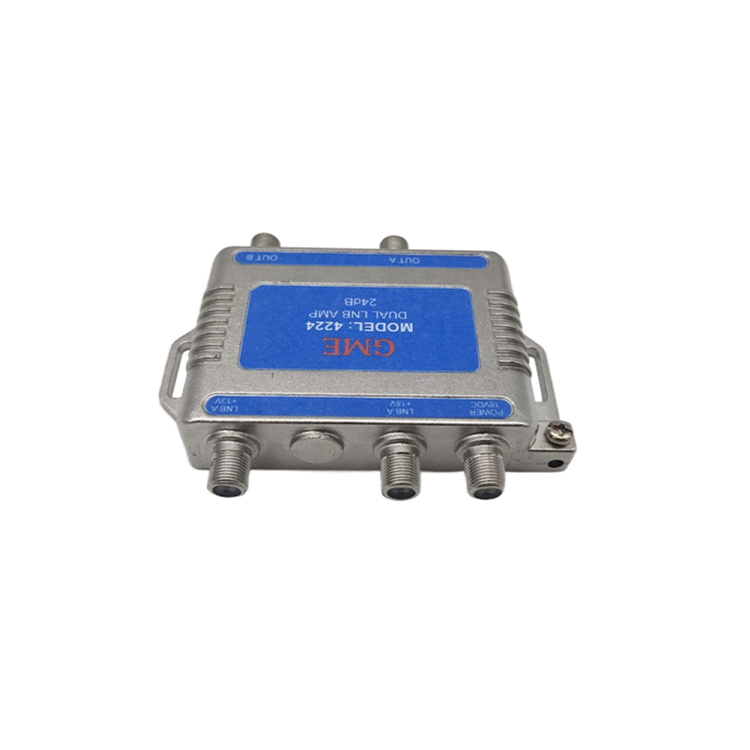

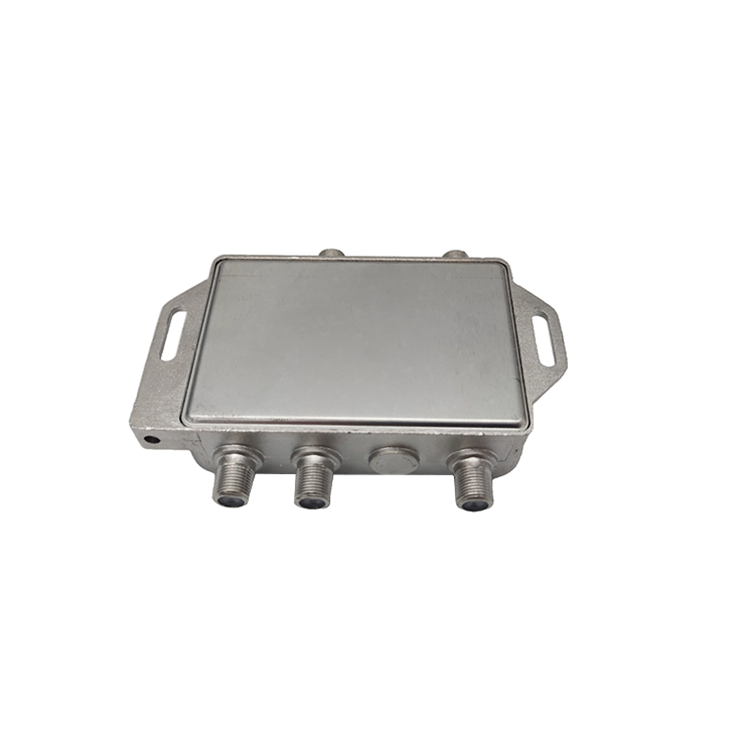

Model Number:GDAMP-047(4224)
|
|
|
|
|
|
|
Frequency range
|
950-2150MHz
|
54-3000MHz forward 22KHz to 42MHz return
|
|
Gain
|
10dB @950MHz
|
18dB @950MHz
|
4.5dB @54MHz
|
17dB @54MHz
|
|
13dB @1450MHz
|
21dB @1450MHz
|
10dB @950MHz
|
24dB @950MHz
|
|
15dB @1750MHz
|
22dB @1750MHz
|
14dB @2150MHz
|
22dB @2150MHz
|
|
17dB @2150MHz
|
23dB @2150MHz
|
15dB @2400MHz
|
28dB @2400MHz
|
|
|
11dB @3000MHz
|
23dB @3000MHz
|
|
Input/output return loss
|
12dB @950-1750MHz
|
10dB @54-3000MHz
|
|
10dB @950-1750MHz
|
10dB @2-42MHz
|
|
Insertion loss
|
|
-3.8dB@2-42MHz
|
|
output capability
|
13dBm
|
16dBm
|
|
|
1dB compression
|
@ from 950MHz to 2150MHZ any frequency
|
@ 250MHz and 950MHZ
|
|
Input capability
|
|
94dBuv
|
94dBuv
|
|
Isolation
|
|
|
Cross polarization
|
5dB@LNB/A to LNB/B VS gain and LNB/B to out/A VS gain
|
35dB@LNB/A to LNB/B VS gain and LNB/B to out/A VS gain
|
|
Voltage requirements
|
11-29VDC
|
12-36VDC
|
|
Power adaptor
|
100-240VAC/50-60Hz 18VDC/600mA
|
|
