GDAMP-030 放大器
MCM-55

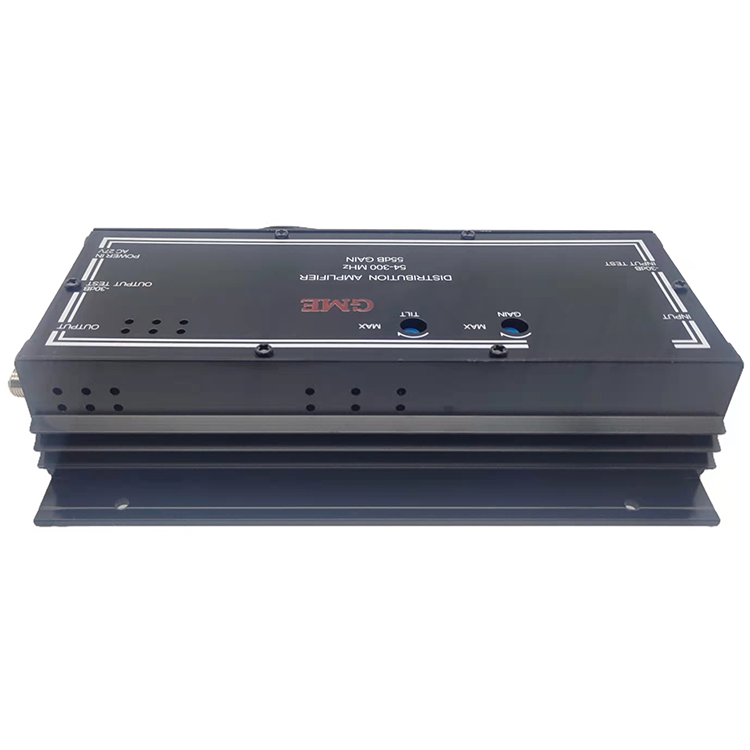

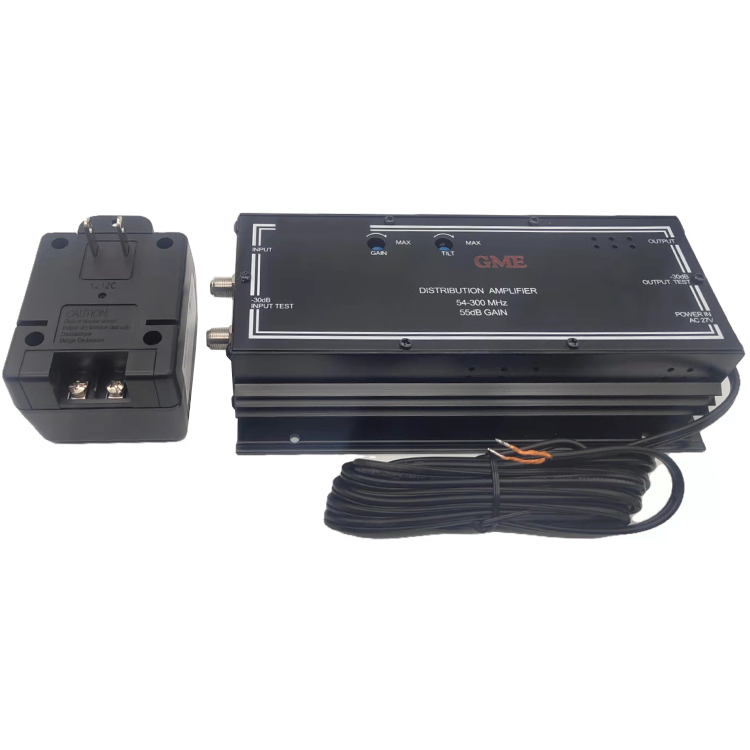

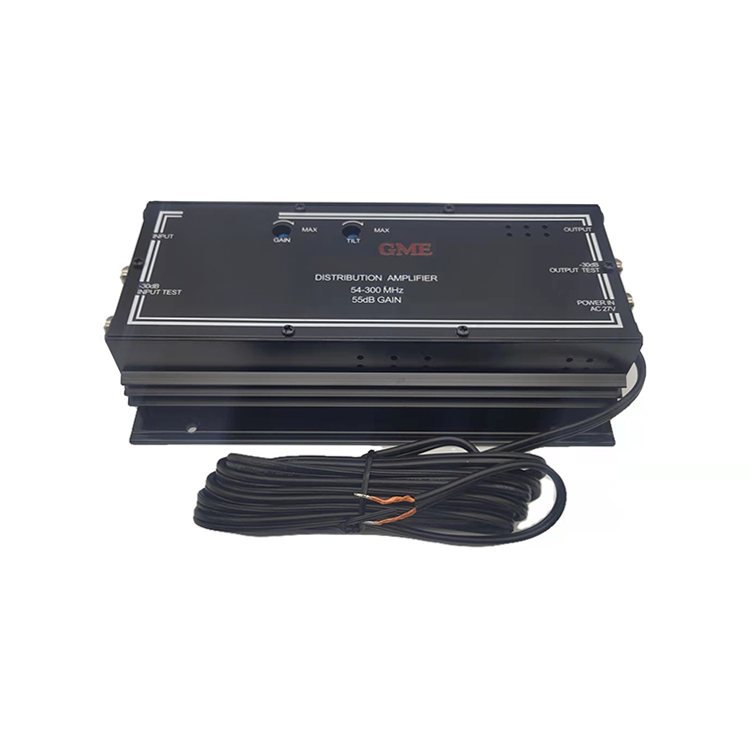

The Pico Macom MCM-55 is a high quality hybrid push-pull wall-mounted distribution amplifier producing signals with extremely low-noise and harmonic distortion.These amplifiers are capable of 42 channel operation over the 54-300MHz range in smaller MDU,CATV or SMATV systems.
咨询热线：0755-27091915
在线客服产品参数
| Place of Origin:Guangdong,China | |
| Model Number:GMCM55 | |
| Bandwidth: | 54 - 550MHz |
| Gain: | 55 dB |
| Gain Adjust Range | 0 to 12 dB |
| Slope | 0 to 8 dB variable |
| Flatness | ±5 dB per channel |
| Maximum Output | 66 dB(7 channels,-57 dB cross modulation) |
| Noise Figure | 6.5 dB |
| Second Order Beats | -70dB |
| Composite Triple Beat | -61 dB |
| Return Loss in | 11 dB |
| Return Loss Out | 14 dB |
| Test Points | -30 dB |
| Power Requirements | 108~125 VAC, 50Hz, 4W |
| Operating Temperature | 8"L x 41/2"D x 2"H |
| Weight | 2.5 lbs |
