MODEL No.:GDST-057(1500659）

Signal In/Out

Input Connector

1 –19 pin HDMI Type A Female

Output Connector

2 –19 pin HDMI Type A Female

HDMI Version

Compliant HDMI 1.4 standard

HDCP Version

Compliant HDCP 1.4 standard

Signal Link Range

480i / 480p / 576i / 576p / 720p / 1080i to 1080p

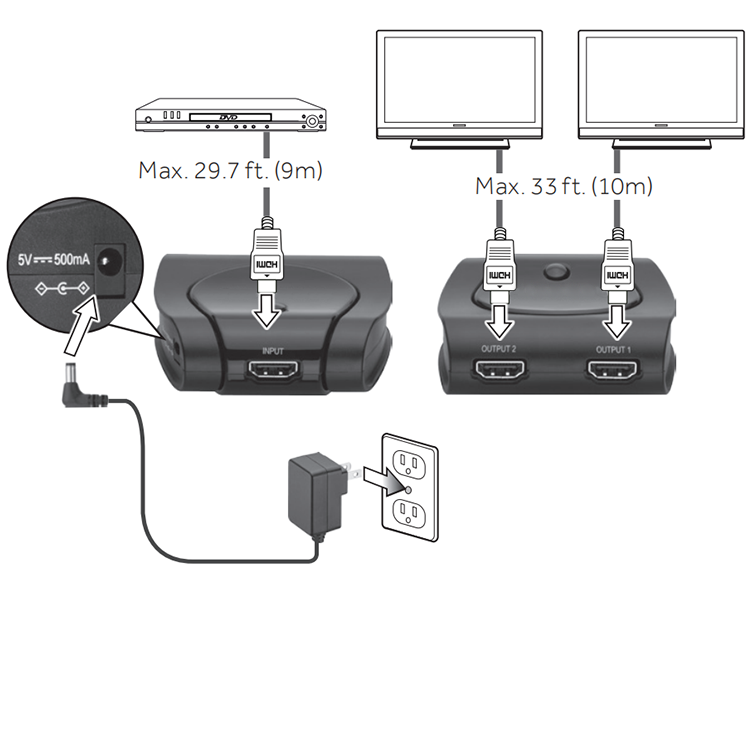

Source-to-splitter range

Up to 9 m (29.7 ft.) @24 AWG for 1080p

Splitter-to-display range

Up to 10 m (33 ft.) @24 AWG for 1080p

LED indicators

Power(Red) and Port connection(Blue)

Power supply(DC Power Adapter)

Input

100~240VAC 50~60Hz

Output

DC 5V/500mA

Environmental

Operating Temperature

0 ℃ to +40 ℃

Operating Humidity

10 % to 85 % RH (no condensation)

Storage Temperature

-20℃ to +80 ℃

Storage Humidity

5 % to 95 % RH (no condensation)

Mechanical

Dimension

67(L) x 78(W) x 25.5(H) mm

Weight(Net)

52 g

Package contents

1× HDMI Splitter
