GDADC-002 转换器

(1500664)

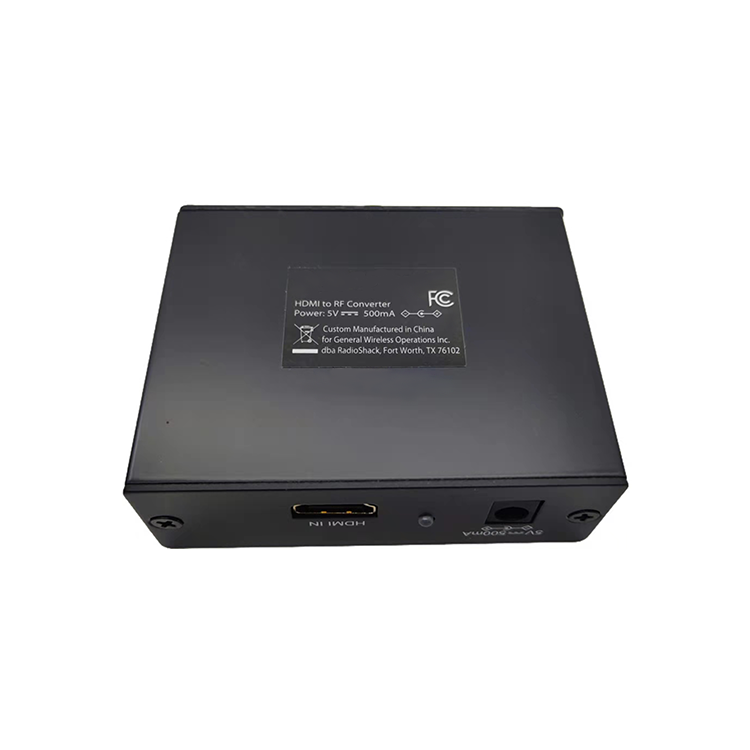

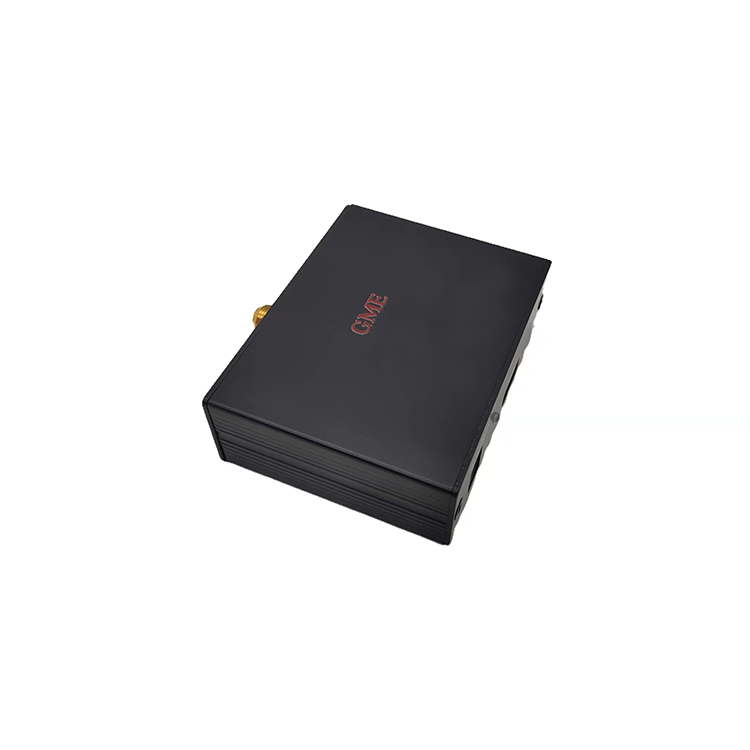

HDMI to RF converter
The converter allows you to watch video and play 3-channel and 4-channel games on non HDMI devices by converting digital signals to analog signals.

咨询热线：0755-27091915

在线客服

产品参数

Place of Origin:Guangdong,China
Model Number:GDADC-002 (1500664)
ITEM
Q.C LIMIT
Signal in

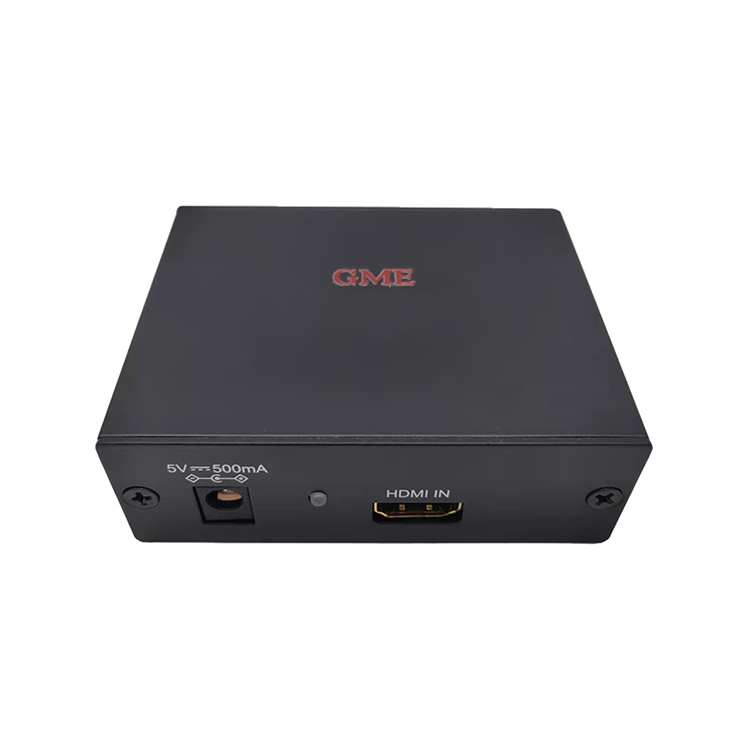

Input Interface
19 pin HDMI Type A Female
Supported Resolutions
480i or 480p

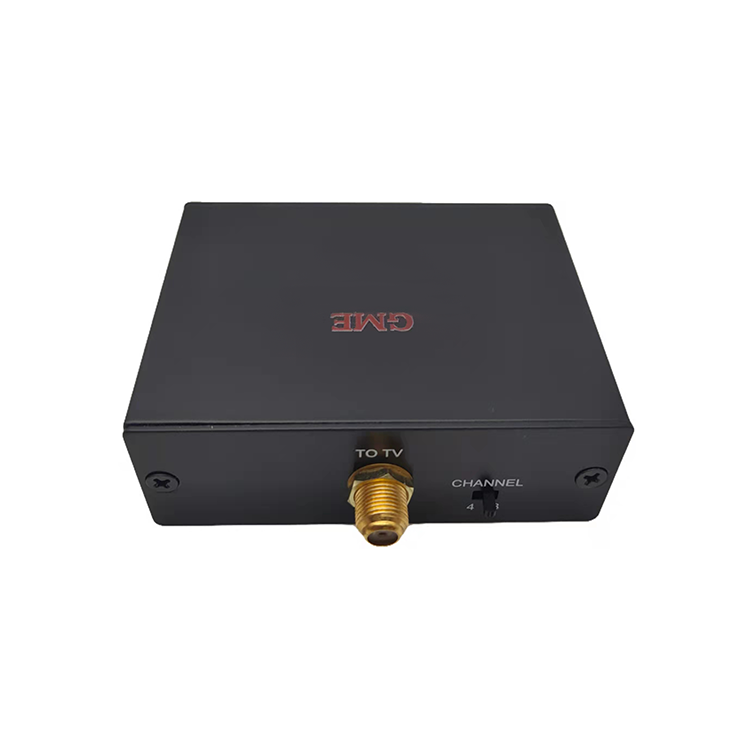

RF output
Support standard
NTSC
Video Carrier FREQ.
CH-3: 61.250 ± 0.02MHz
Output Level
CH-4: 67.250 ± 0.02MHz
Sound Carrier FREQ.
68 ± 5dBuV @ 75 ohms loaded
Sound Carrier Output level
4.500 ± 0.02MHz
(Below video carrier)
12 ± 2dB
Video Modulation
87±5% 100%White pattern @ HDMI Generator FRESCO SIX-G
Impedance
75 ohms

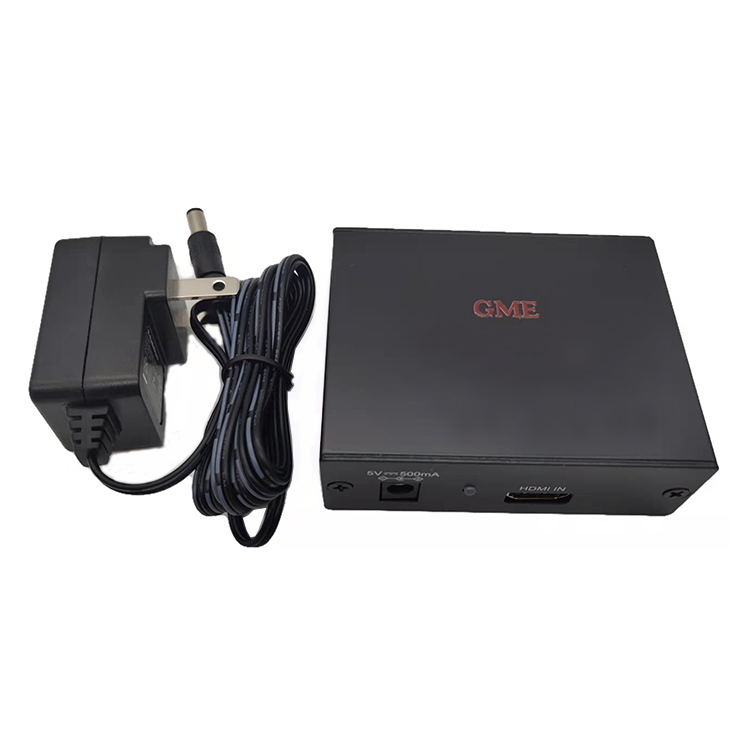

Power supply (DC Power Adapter)
Input
100~240VAC 50~60Hz
Output
5V DC / 500mA
Environmental
Operating Temperature
0 to +40 ℃
Operating Humidity
10 % to 85 % RH (no condensation)
Storage Temperature
-20 to +80℃
Storage Humidity
5 % to 95 % RH (no condensation)
Mechanical
Dimension
88 ×29 ×68 mm (W×H×D)
Weight(Net)
128 g
Package contents
