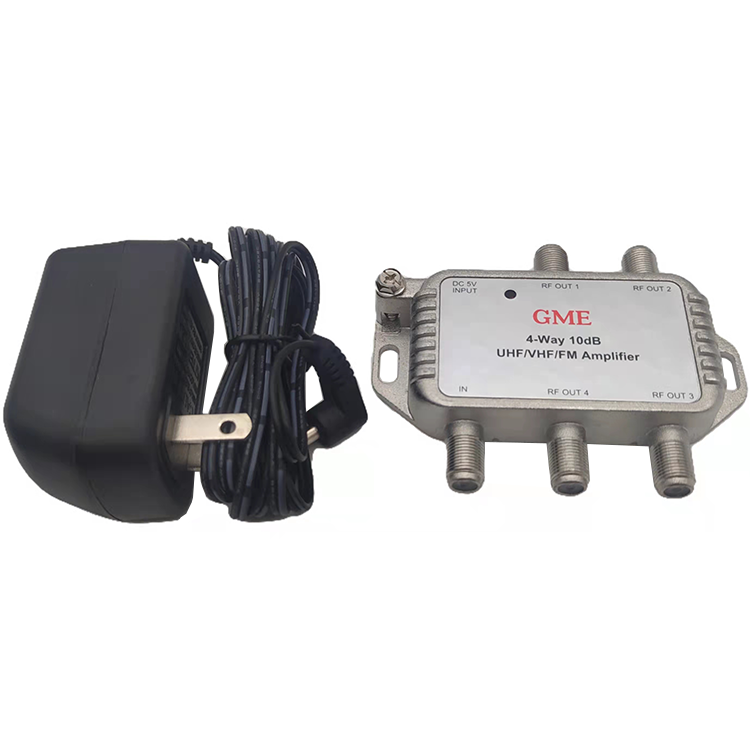

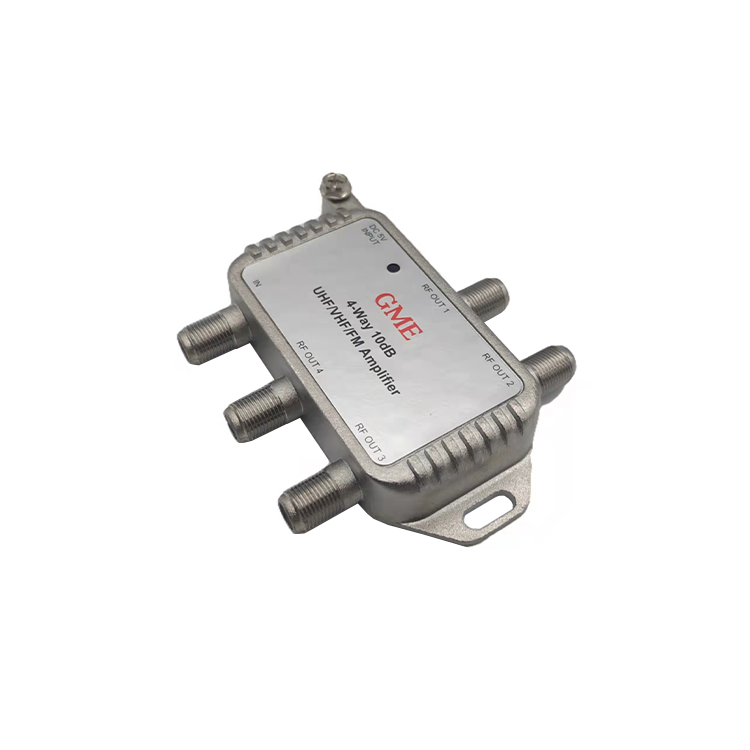

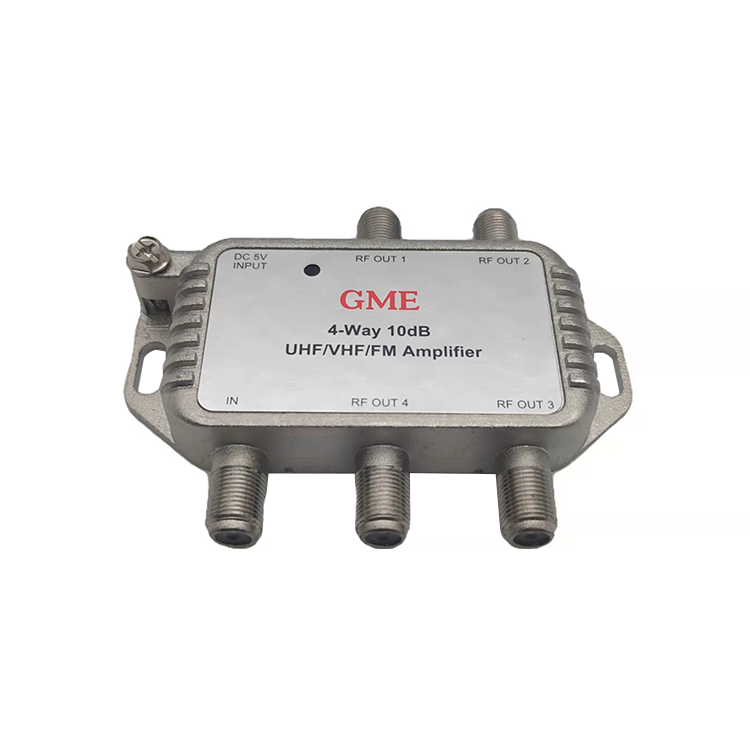

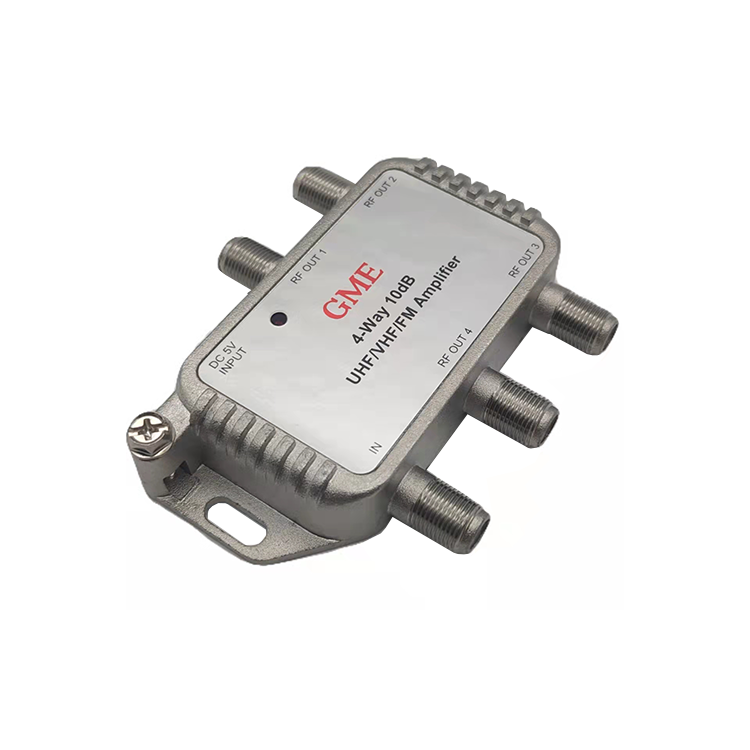

GDAMP-004 放大器

3304-4-10

咨询热线：0755-27091915


Place of Origin:Guangdong,China
Model Number:GDAMP-004 (3304-4-10)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ RANGE
FORWARD PATH			54-1000MHz
RETURN PATH			5-42MHz
GAIN
FORWARD PATH	2.5dB	2.0dB MIN	54-1000MHz
INSERTION LOSS
RETURN PATH	-8.0dB	-8.5 dB MAX	5-42MHz
ISOLATION BETWEEN OUTPUT	-20.0dB	-18.0dB MIN	5-42MHz
	-20.0dB	-18.0dB MIN	54-1000MHz
RETURN LOSS
FORWARD PATH INPUT	-9.0dB	-8.0dB MIN	54-1000MHz
OUTPUT	-14.0dB	-12.0dB MIN	54-1000MHz
RETURN PATH IN/OUT	-14.0dB	-12.0dB MIN	5-42MHz

NOISE FIGURE
	6.0dB	7.0dB MAX	54-1000MHz
INPUT CAPABILITY		95 dBuV MIN	CH.3
			（1 dB COMPRESSION）
POWER SUPPLY
INPUT		120VAC/60Hz
OUTPUT		12VDC/50mA
Efficiency		LEVEL VI
