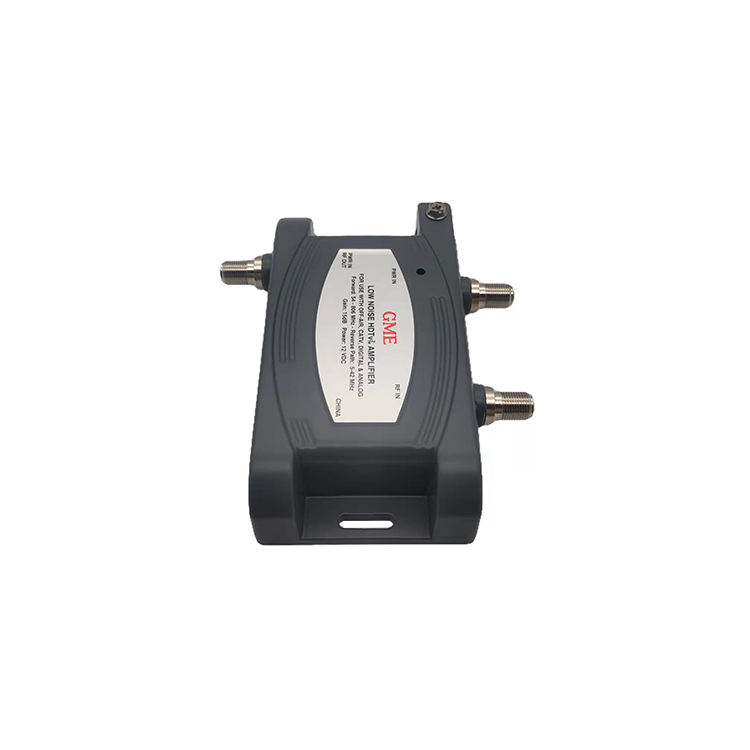

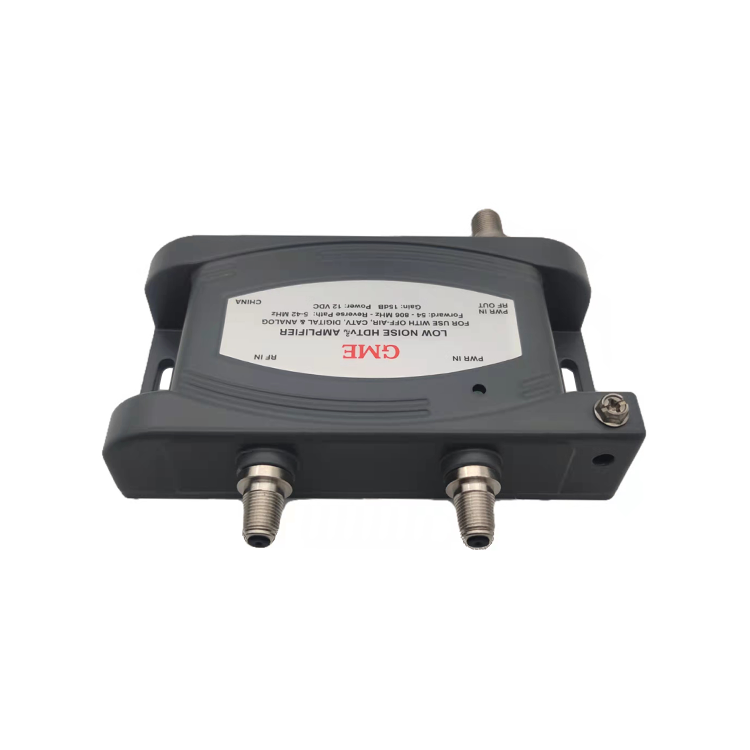

GDAMP-007 放大器

3305-1P

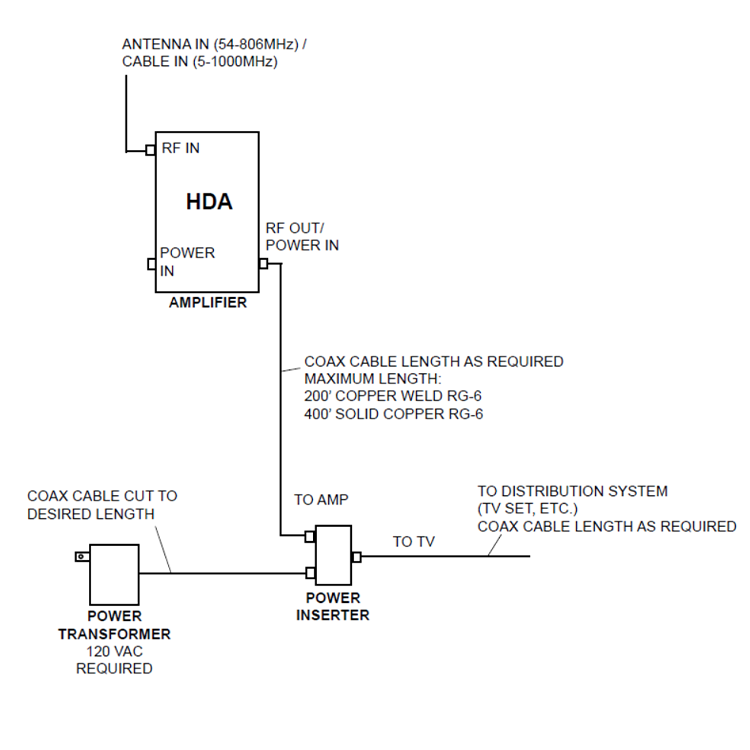

1. Model HDA-100 Gain Control is a 10-turn gain control. To obtain maximum attenuation of -18dB, turn the control fully counter-clockwise.
2. Model HDA-100 has an FM Trap or Switch. If you want to amplify FM, switch the FM Trap OUT. If you do not want to receive or amplify FM, switch the Trap IN.

咨询热线：0755-27091915

在线客服

产品详情
在线留言

产品参数


Place of Origin:Guangdong,China
Model Number:GDAMP-007 (3305-1P)
ITEM	TYPICAL	Q.C.LIMIT	TEST CONDITIONS
1.General Specification

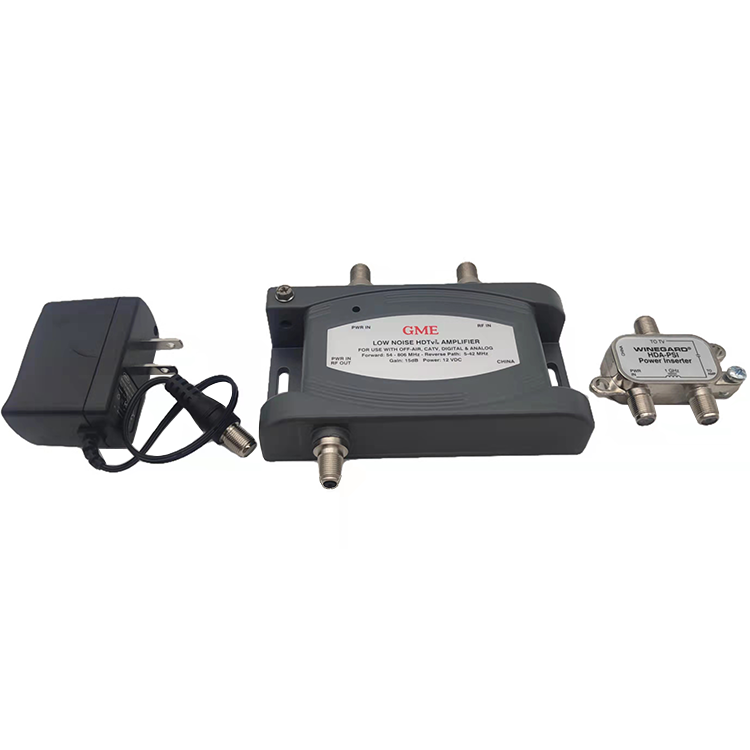

Power Adaptor
Input Voltage	108VAC/60Hz~132VAC/60Hz
Output Voltage	10.5VDC/200mA LOAD	108VAC/60Hz
	12.0VDC/200mA LOAD	120VAC/60Hz
	13.5VDC/200mA LOAD	132VAC/60Hz
Output Ripple	1.2Vp-p/200mA LOAD	108VAC/60Hz~132VAC/60Hz
Power Source	12~18VDC 200mA
	From Power Supply or Cable Powering
Power Consumption	130mA MAX
Surge Protect	CAT B3 6KV 3KA Combination wave on all RF ports CAT A3 6KV 200A Ring wave on DC power port
Impedance	75 OHM	ALL Ports
Connector Type	“F” Female TYPE	According to SCTE
Tightening Torque	>30 in-LBS
Back-out Torque	>30 in-LBS
Pull Force on Insulator PIN	0.88~1.5LBS	E 0.8PIN
Push Force on Insulator PIN	0.77~0.88LBS	E 0.8PIN
Housing Material	Aluminum alloy die-casting
Plating	Powder coated-color PANTONE 18-0306TP
Salt Spray	Test hours:500h Ph grade of salt water:6.5~7.2	According to ASTMB117
UV radiation immunity	IEC60068-2-5	a :Temperature
	Rate :A Exposure unit under UV	35℃ or 45℃ or 55℃
	radiation for 8 hours ,then break down for 16 hours .	b: Humidity:NA
	Exposure cycles are 10 days.	c: Radiation intensity:
		700W/m∧2
GND Wire Mounting Screw	Stainless steel
Mounting hardware Screw	E4*18 Steel with nickel plated
Power LED	Green
Net Weight	296g
2.ELECTRICAL SPECIFICATION
Forward Path：
Freq. Range			54 ~ 1000MHz
Gain	15.0 dB	13.5 dB MIN.	54 ~ 1000MHz
Flatness	± 0.5dB	± 1dB Max.	54 ~ 1000MHz
	± 0.2dB	± 0.25dB Max.	Any 6MHz BAND WIDTH
Noise Figure	3.0 dB	3.5dB Max.	54 ~ 1000MHz
Group Delay		20 ns Max.	For Channel 2
			3.58MHz Span
		10 ns Max.	For Channel 3
			3.58MHz Span
		5 ns Max.	For All Other Channel
			3.58MHz Span
Return Loss（IN/OUT）	20dB	18dB Min.	54 ~ 1000MHz
Return Path：
Freq. Range			5 ~ 42MHz
Insertion loss	-0.5 dB	-1.0dBMax	5 ~ 30MHz
	-1.0 dB	-1.5dBMax	31 ~ 42MHz
Flatness	± 0.5dB	± 1.0dBMax	5 ~ 42MHz
	± 0.2dB	± 0.25dB Max.	Any 6MHz BAND WIDTH
Return Loss（IN/OUT）	-20 dB	-18dB Min.	5 ~ 42MHz
Distortion：
Composite Second Order *		-62dBc Max.	55.25/547.25MHz 77 Channels
Composite Triple Beat *		-74dBc Max.	NTSC+10dBmV flat
Cross Modulation *		-75dBc Max.
Hum Modulation		-80dBc Max.
2nd Order Intermodulation		-100dBc Max.	Test Frequency at 30MHz carrier,55dBmV Level INPUT
RFI Shielding		>100dBc
Power to RF IN Isolation:		-100dBc Min.	5 ~ 1000MHz
Operating Temperature：		-40℃ to + 60℃
