GDAMP-006 放大器

GCA-35PR/1000

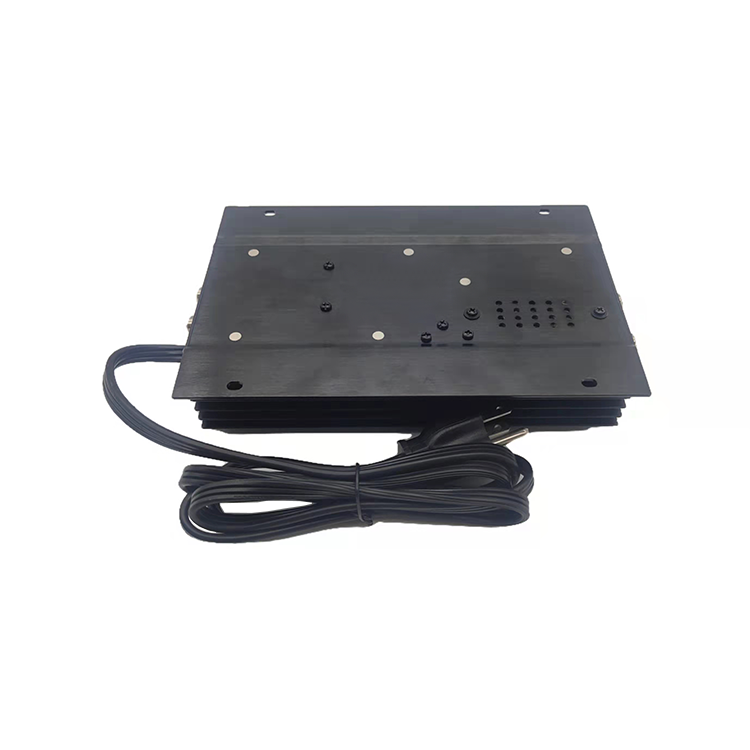

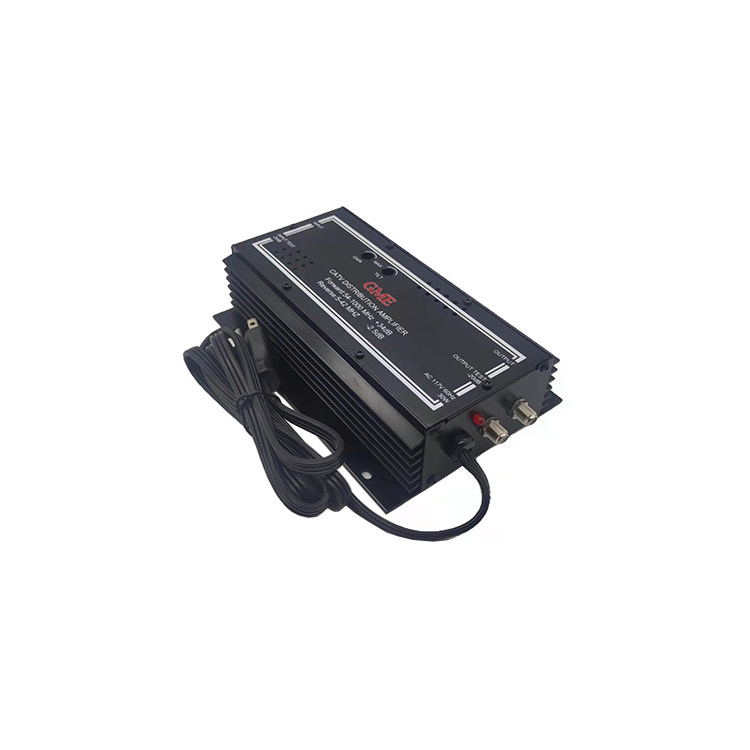

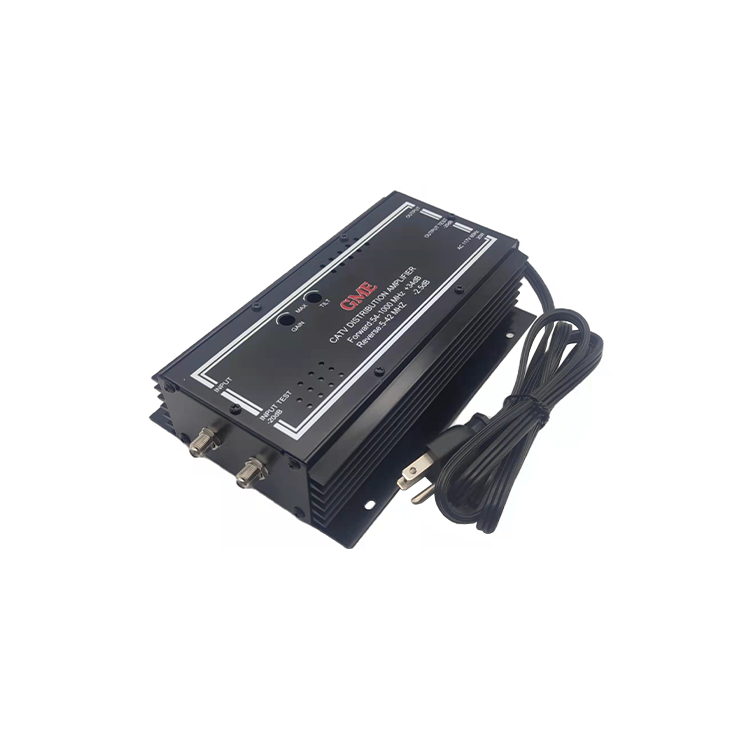

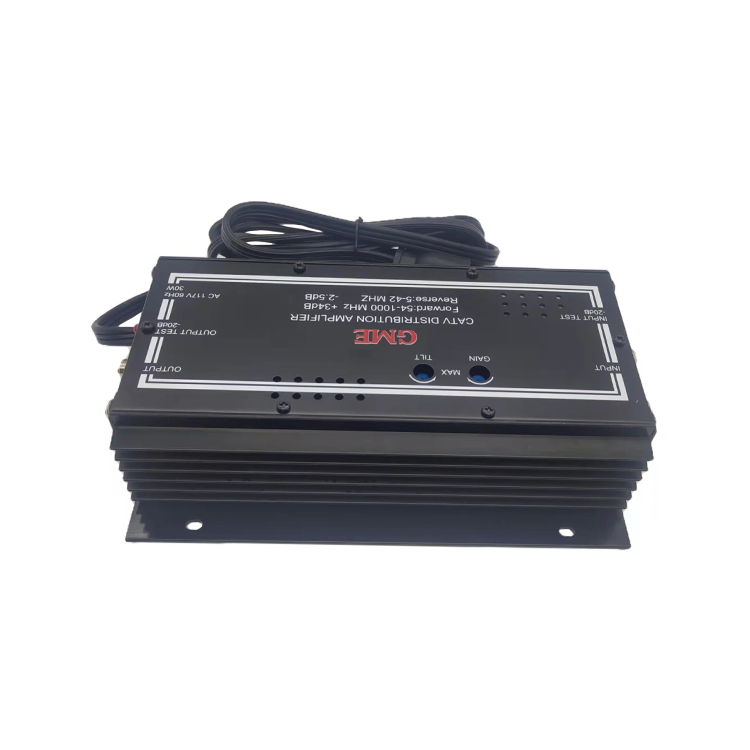

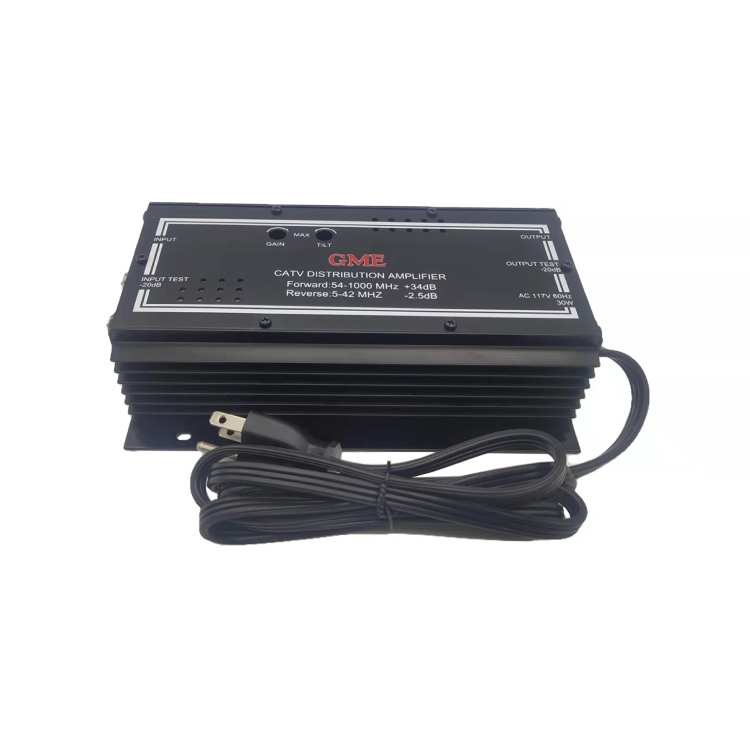

The GCA-35PR/1000 is a wall mount push-pull amplifier producing signals with extremely low distortion and harmonic content. The unit is capable of full channel operation from 54MHz to 1000MHz. The CTA-35-1000PR’s low-noise and low distortion specs allow it to be used in large networks requiring amplifier cascading. Key features include: adjustable slope control, adjustable gain control, input and output test ports, easy access controls, and shielded RFI enclosures.

咨询热线：0755-27091915

在线客服

产品详情
在线留言

产品参数

Place of Origin:Guangdong,China
Model Number:GDAMP-006 (GCA-35PR/1000)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ RANGE
FORWARD PATH			54 ~ 1000MHz
RETURN PATH			5 ~ 42 MHz
GAIN FOR WARD PATH	32 dB	30 dB MIN.	54 ~ 550 MHz
	30 dB	28 dB MIN.	551 ~ 1000 MHz
LOSS RETURN PATH	- 2.5 dB	- 3.5 dB MAX.	5 ~ 42 MHz
FLATNESS FORWARD PATH	± 1.0 dB	± 1.5 dB MAX.	ANY 100MHz BAND
RETURN PATH	± 1.0 dB	± 1.5 dB MAX.	5 ~ 42 MHz
INPUT CAPABILITY 1dB COMPRESSION	105 dBuV	102 dBuV MIN.	AT: 55.25 MHz INPUT
RETURN LOSS
FORWARD PATH INPUT	- 10 dB	- 8 dB MIN.	54 ~ 1000 MHz
FORWARD PATH OUTPUT	- 10 dB	- 7 dB MIN.	54 ~ 1000 MHz
RETURN PATH IN / OUT	- 10 dB	- 8 dB MIN.	5 ~ 42 MHz
NOISE FIGURE	6 dB	7 dB MAX.	54 ~ 550 MHz
	7.5 dB	8.0 dB MAX.	551 ~ 1000 MHz
GAIN CONTROL	16 dB	15 dB MIN.	54 ~ 1000 MHz
SLOPE COMPENSATION	15 dB	14 dB MIN.	54 MHz
COMPOSITE TRIPE BEAT (CTB)		- 60 dBC
COMPOSITE SECOND ORDER(CSO)		- 60 dBC
IN / OUT TEST POINT		20 dB ± 3dB MAX.
OPERATING TEMPERATURE		- 10 TO 55°C
CONNECTOR		TYPE:“F” FEMALE	ALL PORT
IMPEDANCE		75 OHM	ALL PORT
PINER REQUIREMENTS		117VAC / 60Hz
