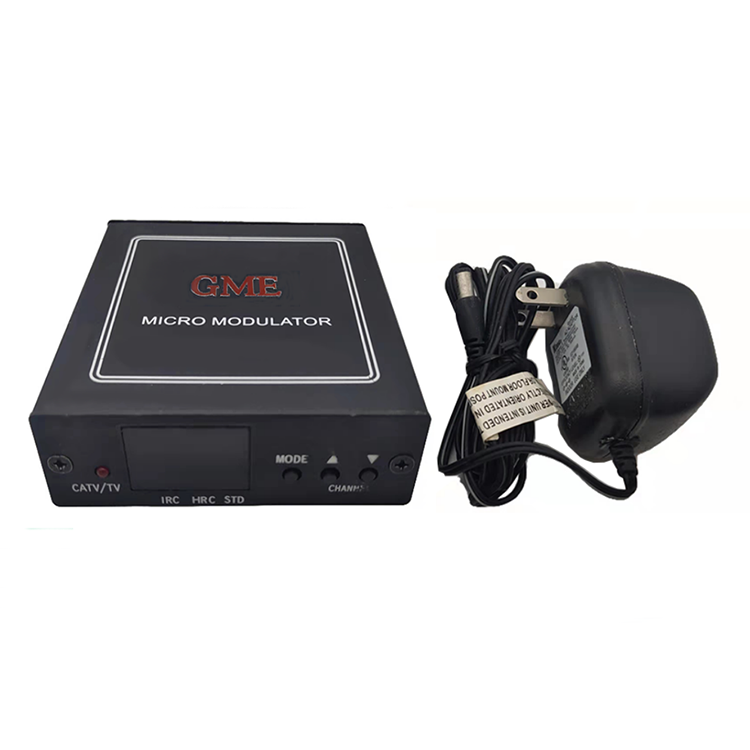

GDM-012 敏捷调制器
6211
Output channel programmable from CH.14 to CH.83 (TV mode) Or from CH.65 to CH.139 (CATV mode).
Digital LED display for channel indication.
PLL controlling RF modulator to secure excellent frequency Stability.
UL power adapter.
咨询热线：0755-27091915
在线客服产品参数
| Place of Origin:Guangdong,China | |
| Model Number:GDM-012 (6211) | |
| Output Channel : | TV Mode: CH.14 to CH.83 |
| CATV Mode: CH.65 to CH.139 | |
| Output Level : | 80dBμV Double Side Band. |
| Audio Frequency Stability: | ±10 KHz |
| Video Frequency Stability: | ±10 KHz |
| Audio Input Impedance : | 10K ohm |
| Video Input Impedance: | 75 ohm |
| RF Output Impedance: | 75 ohm |
| Power Required: | DC 15V 200mA. |
