Gdm-014 analog modulator

6204
Video RF Modulator with S-Video connectors is designed to convert separate audio and video signals from a video camera, computer, portable VCR or satellite receiver) into VHF TV signals.

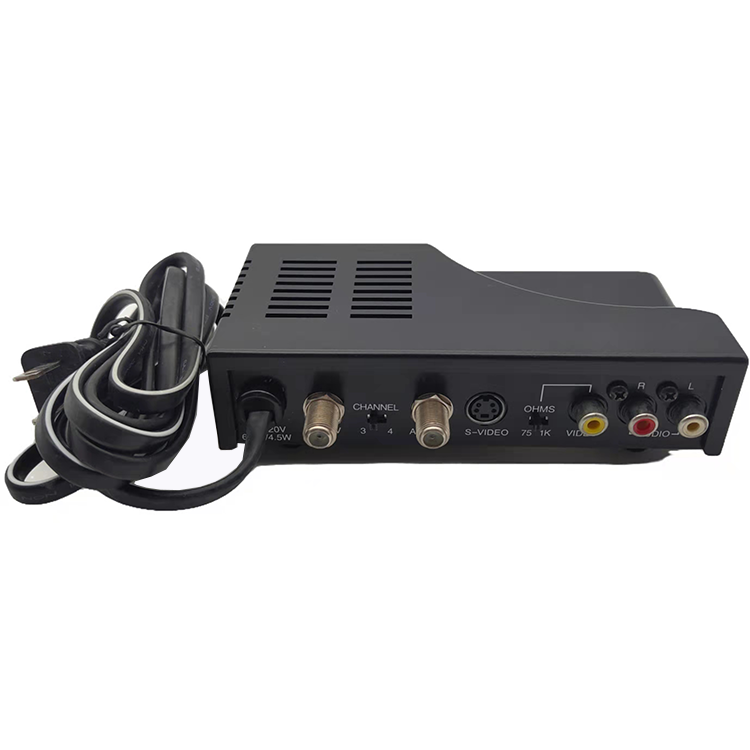

Converts A/V Output From Color Processor Enhancers, Computers, TV Games, Video Cameras and Satellite Receivers for viewing on Ch.3 or Ch.4 on any regular TV • Antenna Loop-Through and Video/Antenna Selection switch per FCC specification are included.


Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin:Guangdong,China
Model Number:GDM-014 (6204)
Audio Input :
RCA Jack, 1Vp-p typical (0.7Vp-p Min.)
Audio Input Impedance :
15K ohm 75μ Sec. Pre-Emphasis
Video Input:
RCA Jack, 1Vp-p typical (0.7Vp-p Min.)
Video Input Impedance :
75/1K ohm Switchable.
Output
CH3/4 Switchable.
RF
Output Level:
Picture Carrier 66 ± 6dBμV
Antenna To TV
Insertion Loss
3.5 dB Max......( 50~500MHz)
4.5 dB Max......(501~900MHz)
Power Required:
AC 120V, 60Hz, 5W
