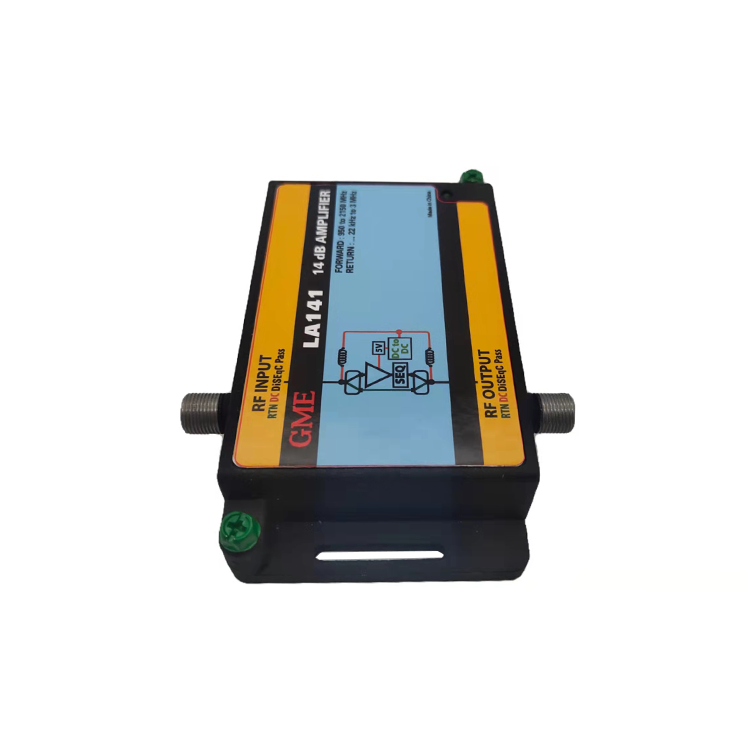

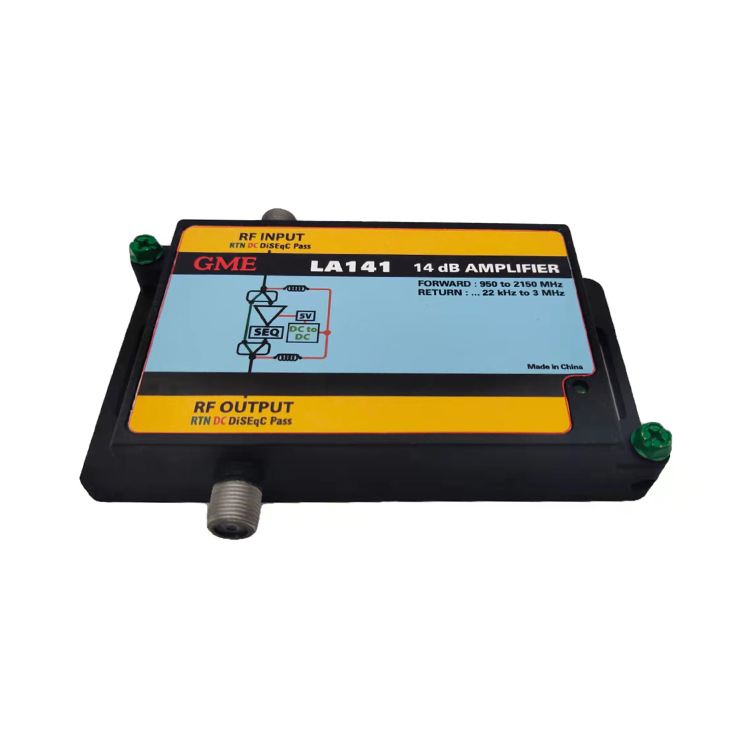

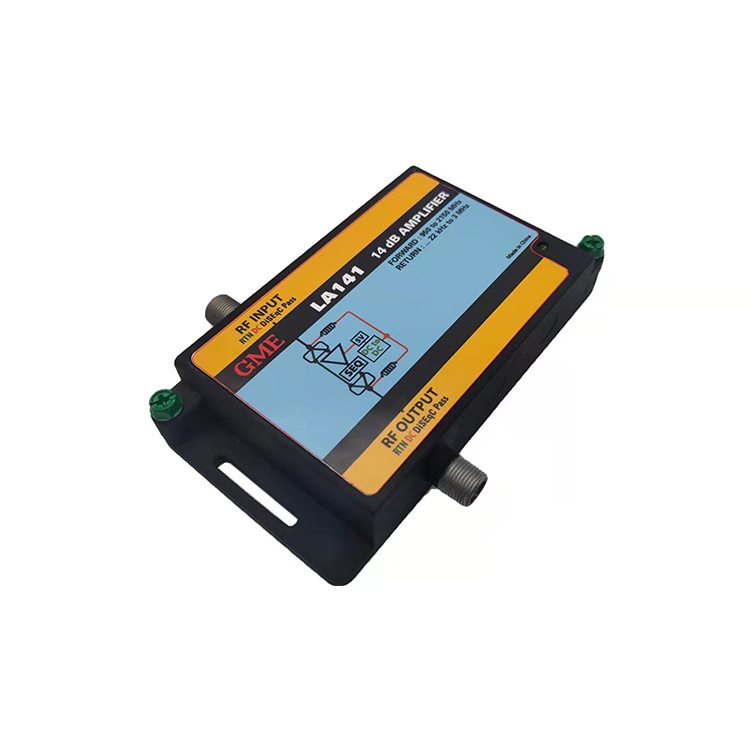

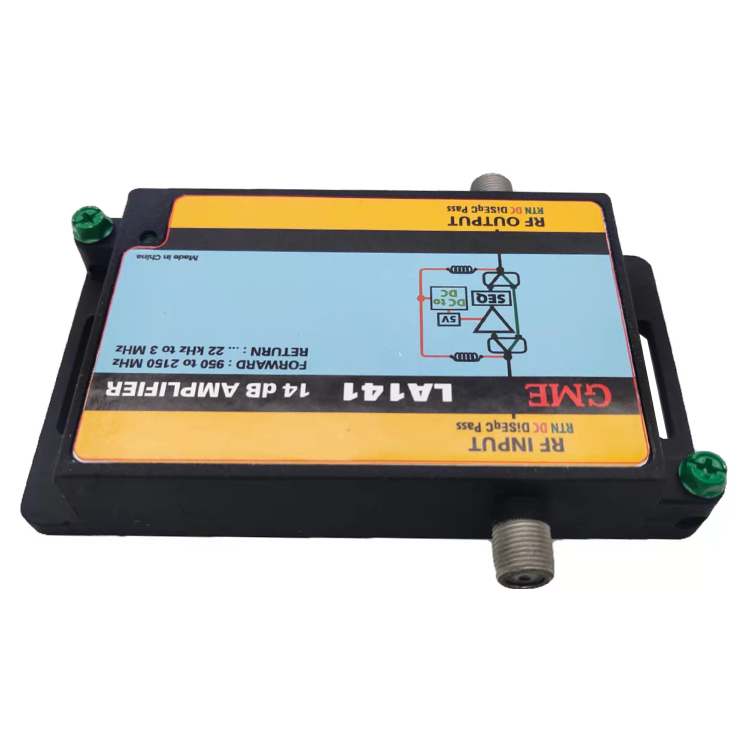

Gdamp-009 amplifier

LA141

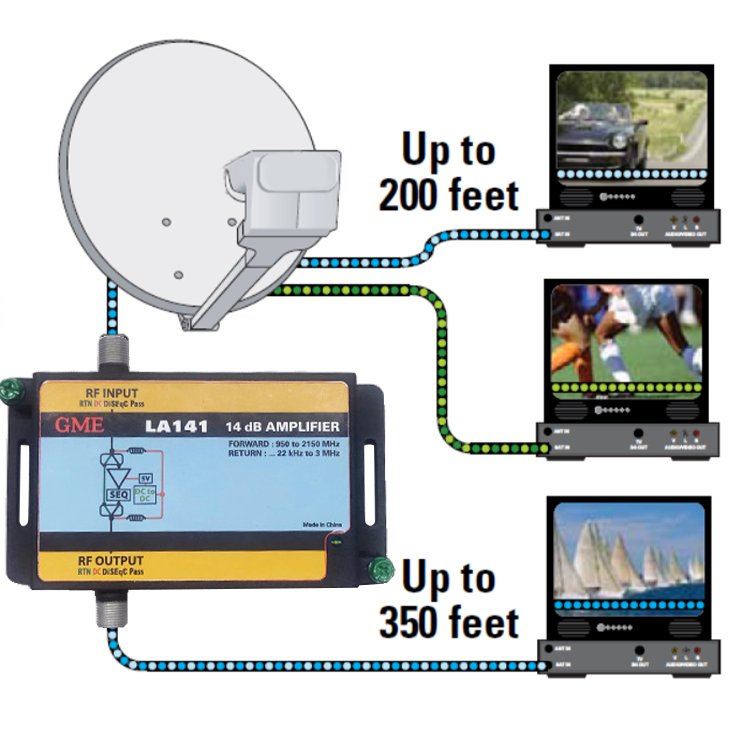

Model LA141 boosts DBS signal levels off setting theloss of 150 feet of RG-6 while passing DC, DiSEqC and receiver FSK control signals from the receiver to the LNB or switch.
DBS 950 to 2150 MHz line powered amplifier with passive DC / DiSEqC & FSK return.

Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin:Guangdong,China
Model Number:GDAMP-009 (LA141)
ITEM
TYPICAL
Q.C LIMIT
TEST CONDITIONS
Freq. range
Forward path
950-2150MHz
Return path
22KHz-3MHz
Gain
+11dB
+10dB Min
950MHz
+12dB
+11dB Min
1450MHz
+14dB
+13dB Min
1750MHz
+15dB
+14dB Min
2150MHz
+14dB
+13dB Min
2400MHz
Insertion loss
-1.2dB
-2.5dB Max
22KHz-3MHz
Return loss
Input
-15dB
-12dB Min
950-2150MHz
-12dB
-10dB Min
2151-2400MHz
Output
-12dB
-10dB Min
950-2150MHz
-13dB
-11dB Min
2151-2400MHz
Input capability
1dB compression
112dBuV
110dBuV Max
At 950MHz input
Working voltage
12-21Vdc
Impedance
75 ohm
Input/output port
Connector
F Type female
Input/output port
