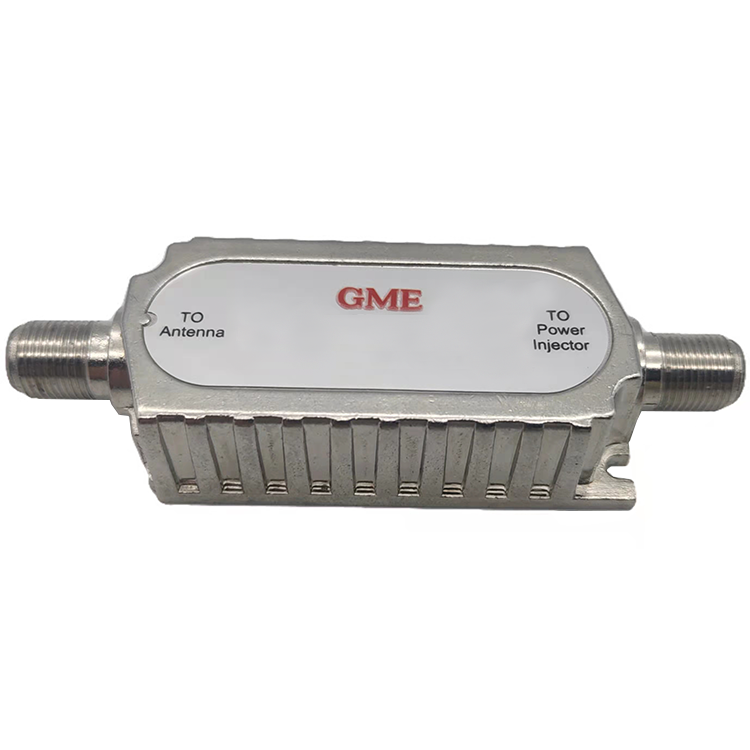

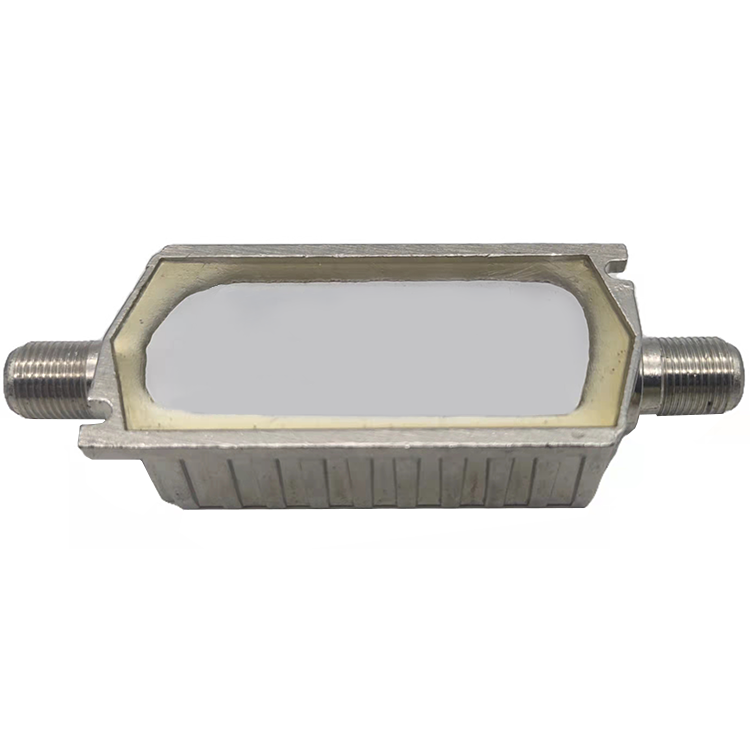

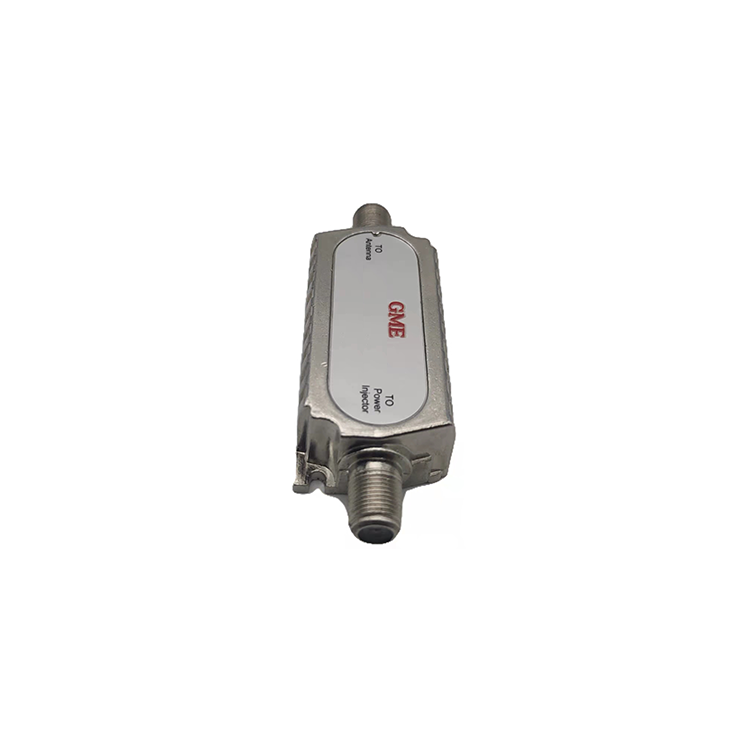

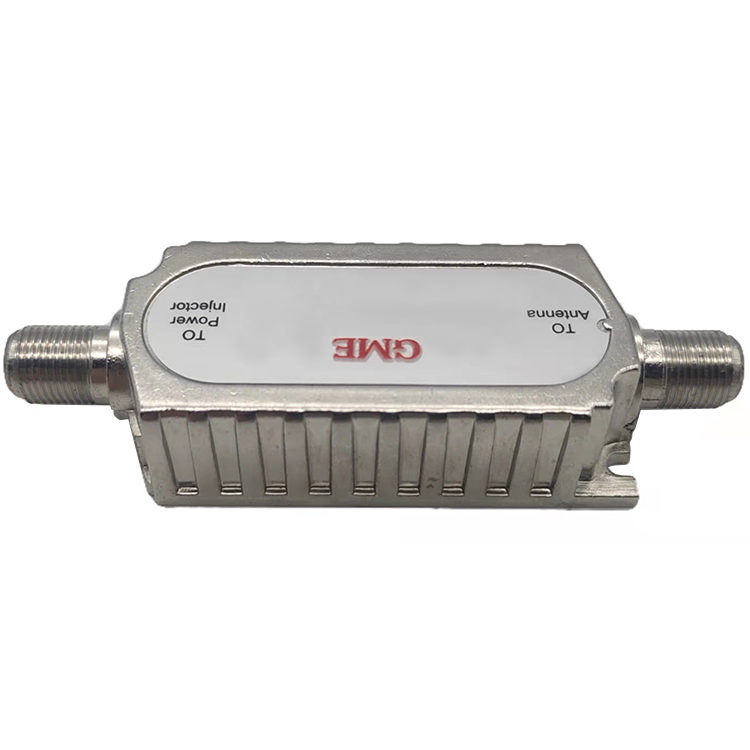

Gdamp-002 amplifier

4005S

Consultation hotline：0755-27091915

Place of Origin:Guangdong,China
Model Number:GDAMP-002 (4005S)
ITEM	TYPICAL	Q.C LIMIT	TEST CONDITIONS
FREQ. RANGE		54~700 MHz
GAIN	18 dB	15 dB min	@54 ~ 700 MHz
INPUT CAPABILITY	97 dBuV 82 dBuV	95 dBuV max. 80 dBuV max.	1dB compression at CH3 input (2ft-f1)-60dBc at CH3/CH4 input
RETURN LOSS ANT port To power injector port		-10 dB min - 10 dB min	54 ~ 700 MHz 54 ~ 700 MHz
NOISE FIGURE	3.3 dB	4.0 dB max	54-700 MHz
IMPEDANCE		75 OHM	ALL PORTS
CONNECTOR		type:“F” female	ALL PORTS

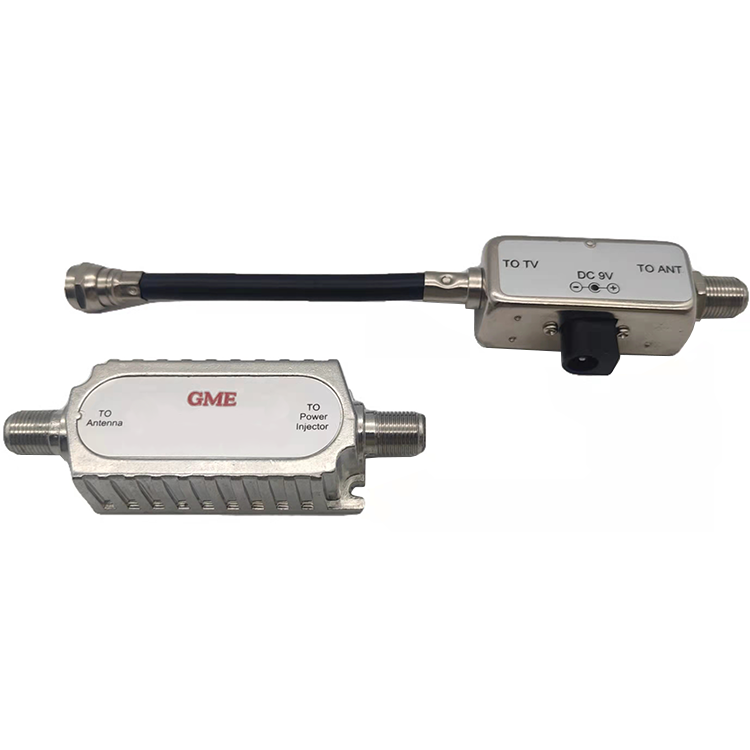

POWER INJECTOR INPUT OUTPUT INSERTION LOSS RETURN LOSS	20dB	120VAC/60Hz 9VDC/100mA -1.5dB MAX 15dBmin	54-700MHz 54-700MHz
