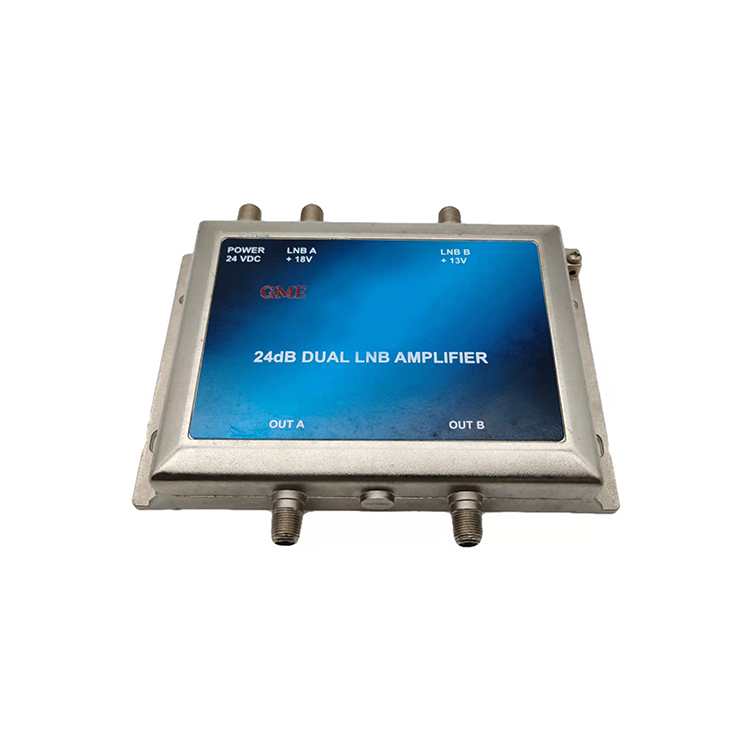

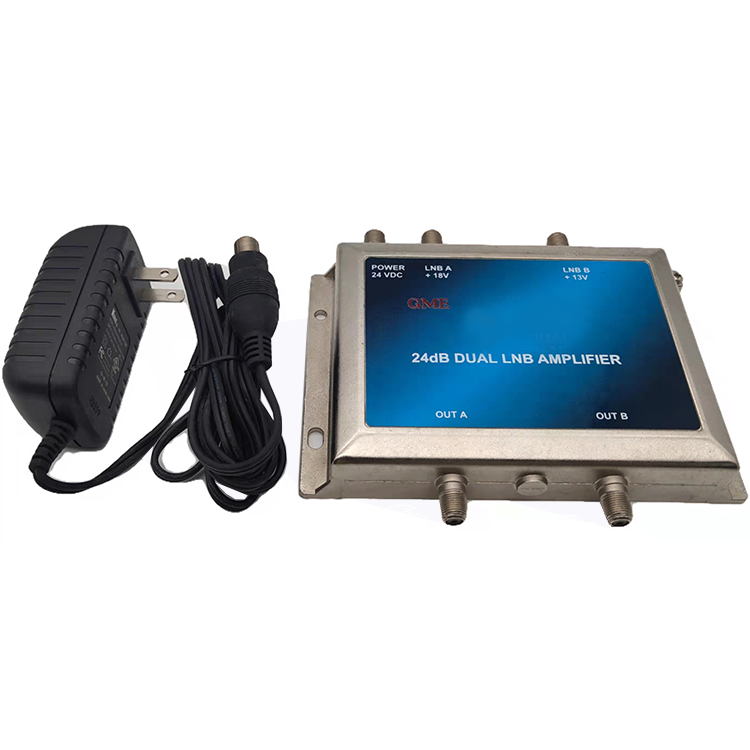

Gdamp-012 amplifier

4224
Catv signal amplifier

Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin:Guangdong,China
Model Number:GDAMP-012 (4224)
Bandwidth:
950~2150MHz
Gain :(Typical)
950MHz
20
dB
1200MHz
22
dB
1450MHz
23
dB
1750MHz
24
dB
2150MHz
20
dB
Return Loss(Input & Output) :
12
dB
Isolation Amp A&B :
55
dB
Noise Figure:
6
dB
Out Capability per Transponder
2 Transponders:
+5dBm
Per Transponder
8 Transponders:
-4dBm
Per Transponder
16 Transponders:
-7dBm
Per Transponder
LNB A Voltage(Diode Steered)
＋18 VDC
Diode Steered
LNB B Voltage(Diode Steered)
＋13 VDC
Diode Steered
LNB Current Max. (A+B)
240mA
A+B
Power Requirement
24V DC 600mA
