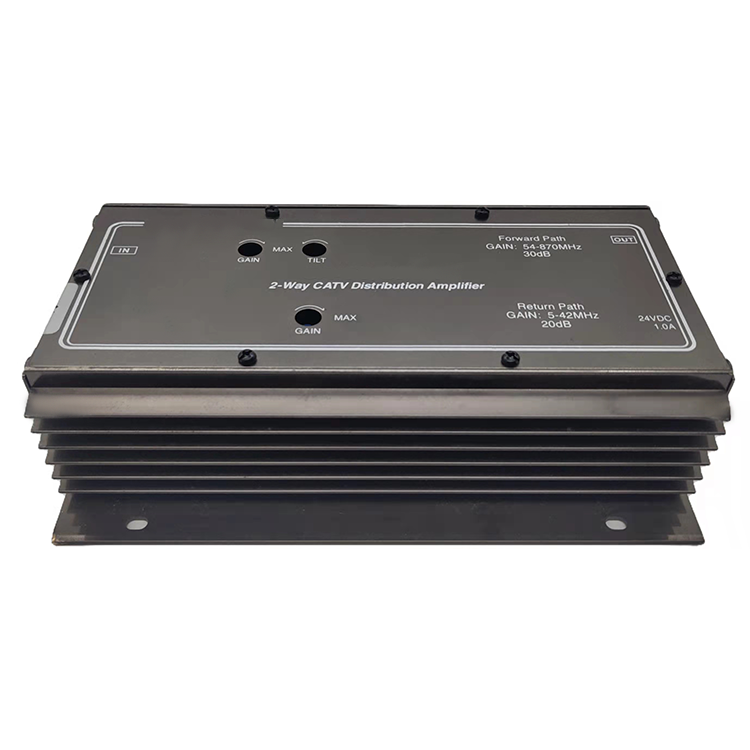

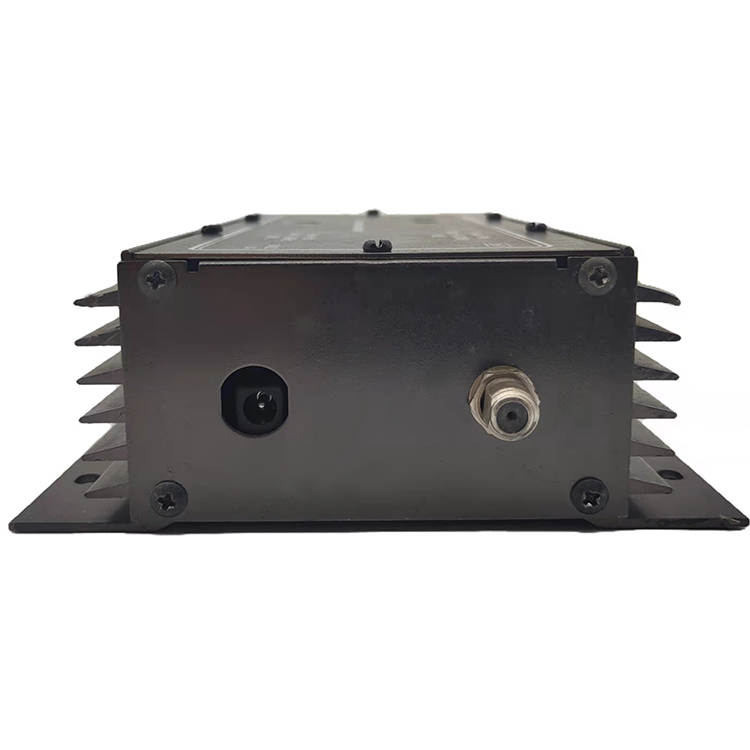

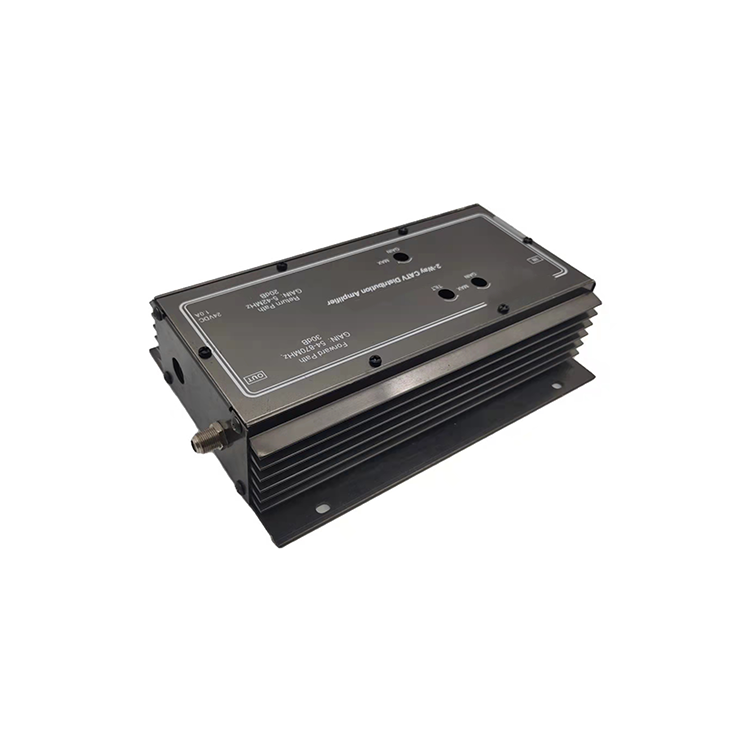

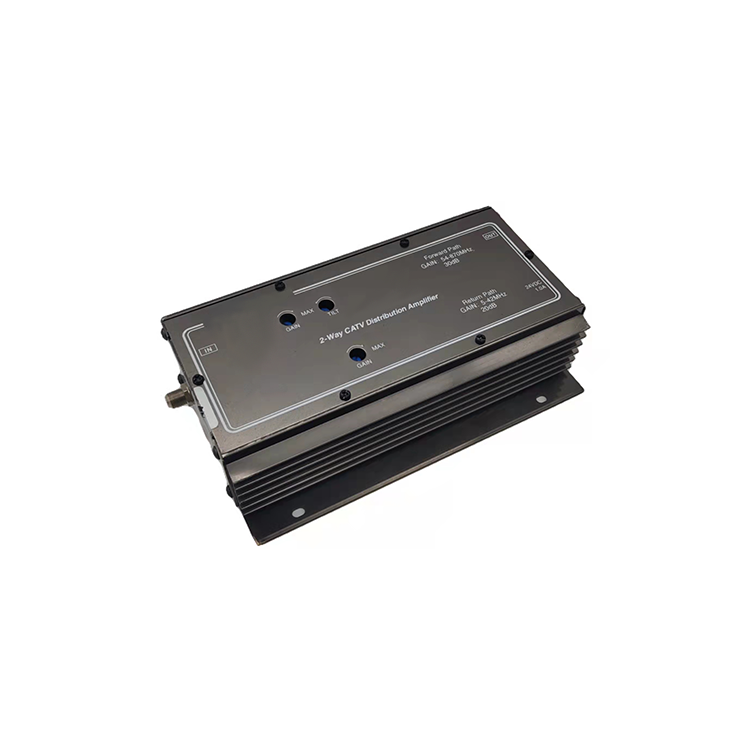

Gdamp-013 amplifier

GCA-30AR-870
Forward path wide 54~870MHz frequency range, 34dB gain hybrid CATV module.
Return path 5~42MHz with 20dB gain hybrid CATV module.
Built-in variable gain & slope control and Input/Output test ports.

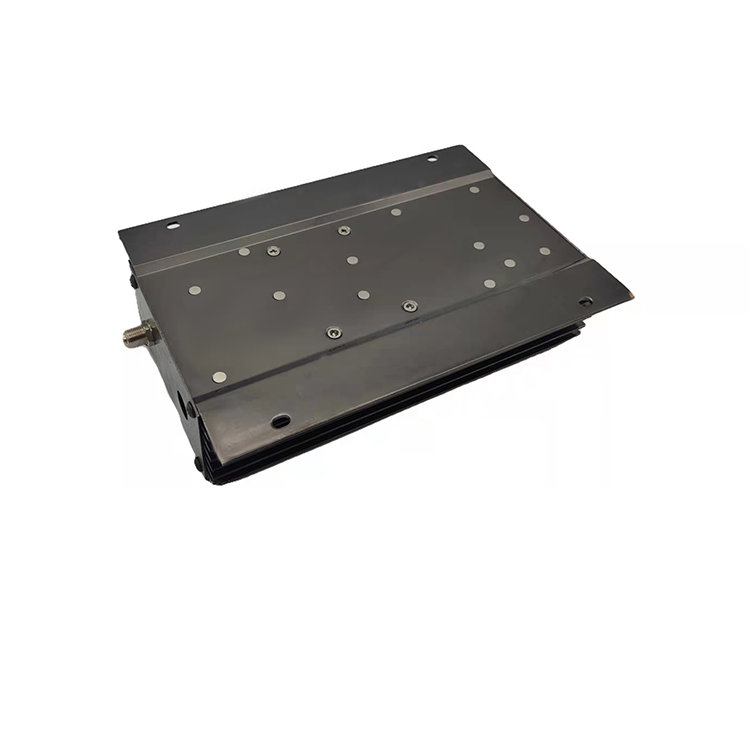

Aluminum chassis for excellent heat dissipation.
High output with low distortion.
Main board consisted of FR-4 glass fiber PCB and sophisticated SMT technology achieves high stability.

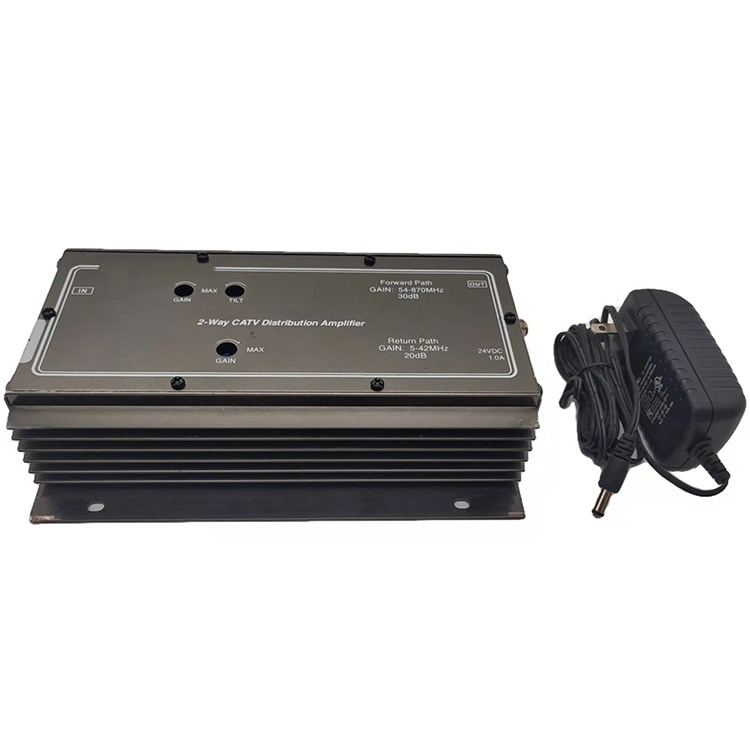

Switching mode power adaptor for wide voltage range 100~240VAC.

Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin: Guangdong,China
Model Number: GDAMP-013(GCA-30AR-870)
Forward path
Return path
Bandwidth ：
54~870MHz
Bandwidth ：
5~42MHz
Gain ：
30dB
Gain ：
20dB
Gain adjust range ：
10dB
Flatness：
±1.0dB (at 5~42MHz)
Slope adjust range ：
6dB
Return loss ：
10dB
Flatness ：
±1.0dB per channel, any 100MHz band
Noise figure ：
7dB
Composite triple beat (CTB) ：
-58 dBc (129 channels, @13dBmV input level)
Composite second order (CSO) ：
-60 dBc (129 channels, @13dBmV input level)
Return loss in/out：
10dB
Test point：
20±2dB
Power supply ：
DC24V,1A,100~240AC input
Operating temperature ：
-10℃ to 50℃
Dimensions：
225x135x52mm
Weight：
1.4Kg
