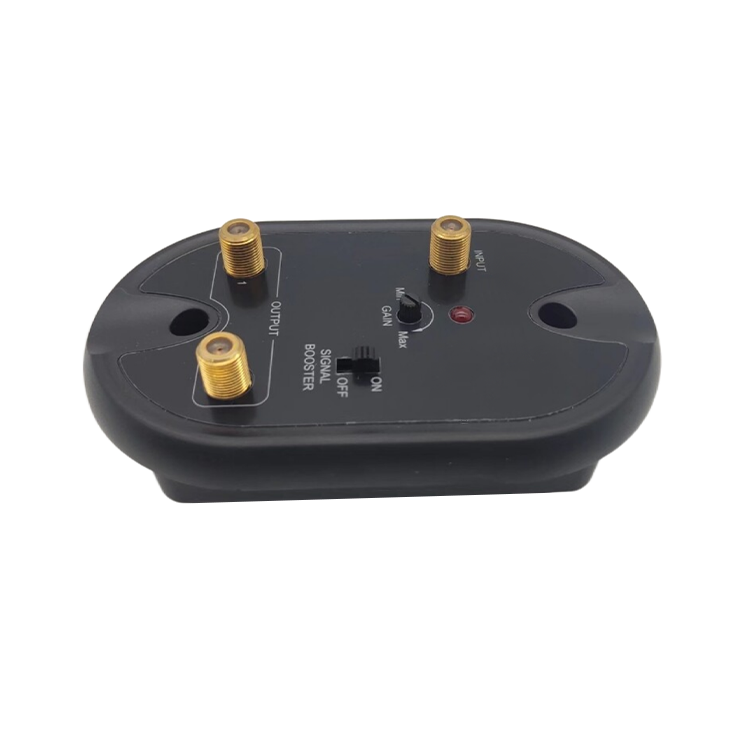

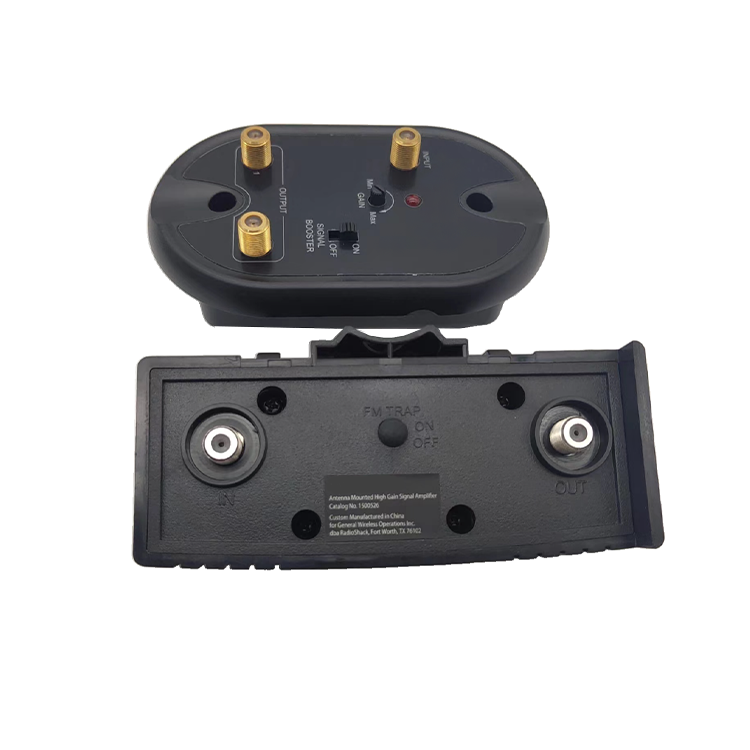

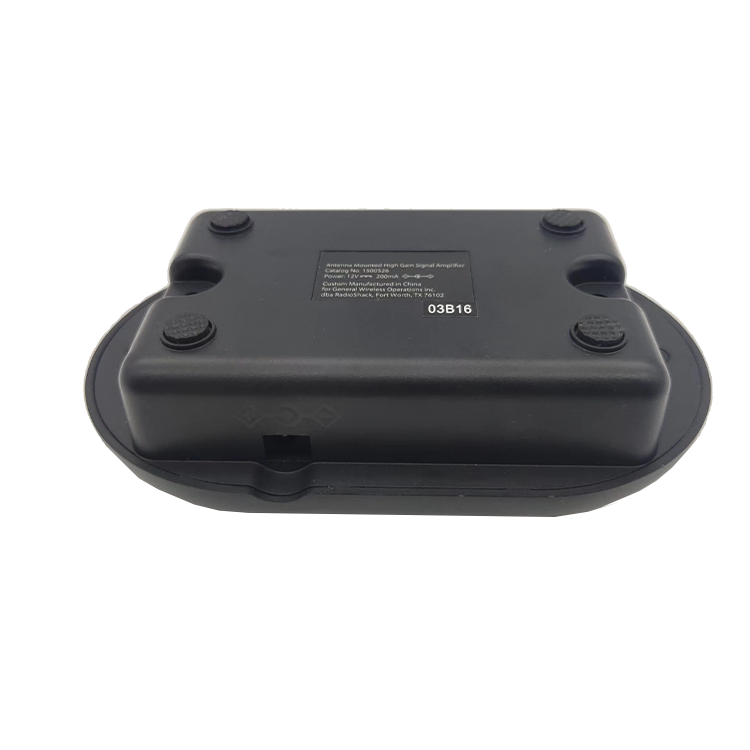

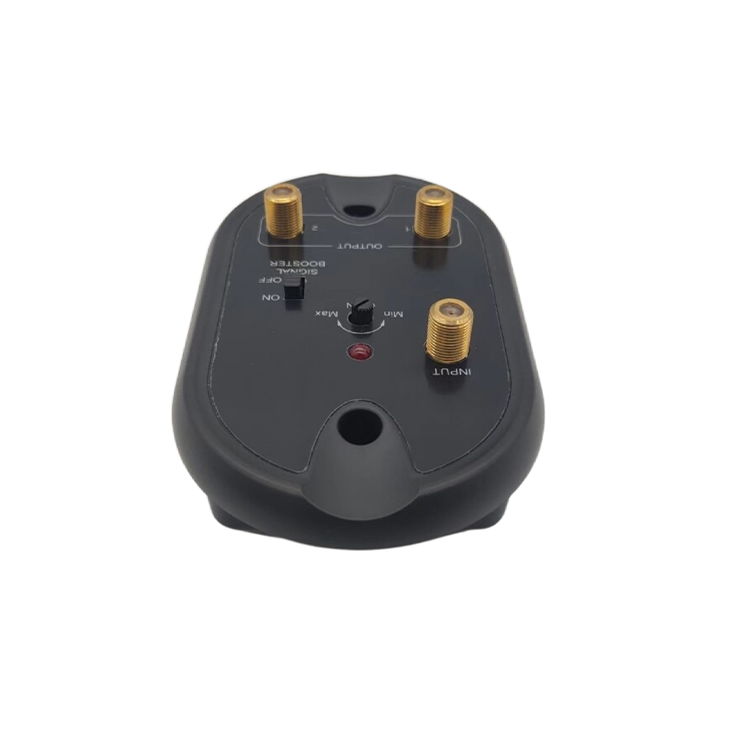

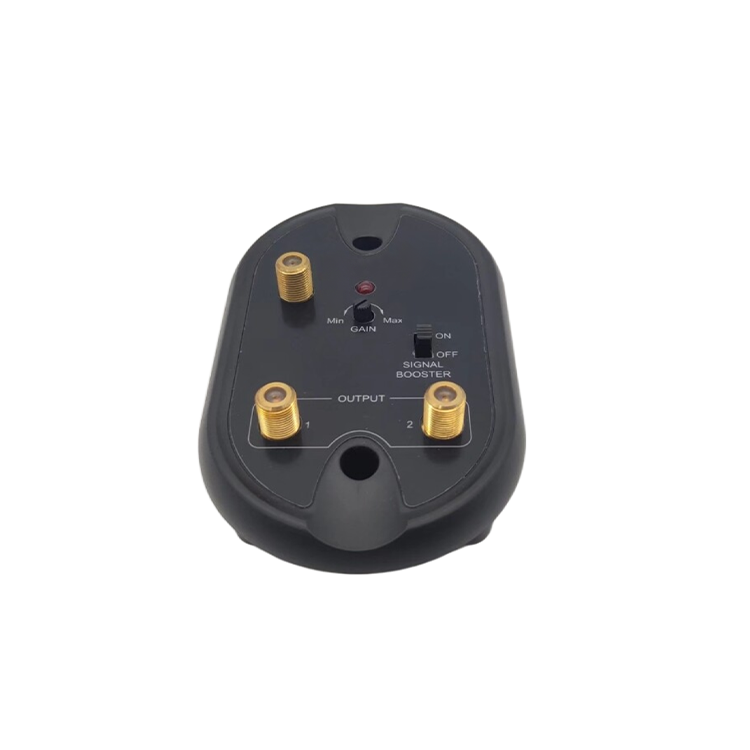

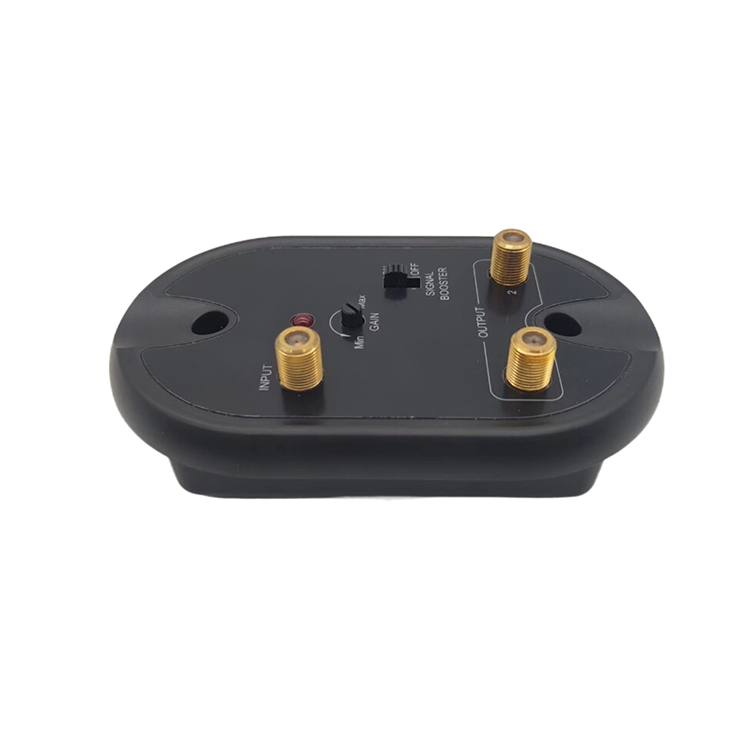

Gdamp-001 amplifier

1500526
Split your TV signal and not your signal strength with this mast-mounted amplifier!

  • Signal gain up to 33dB.

  • Two coaxial outputs.

  • Built-in gain adjuster dial & signal boost switch.

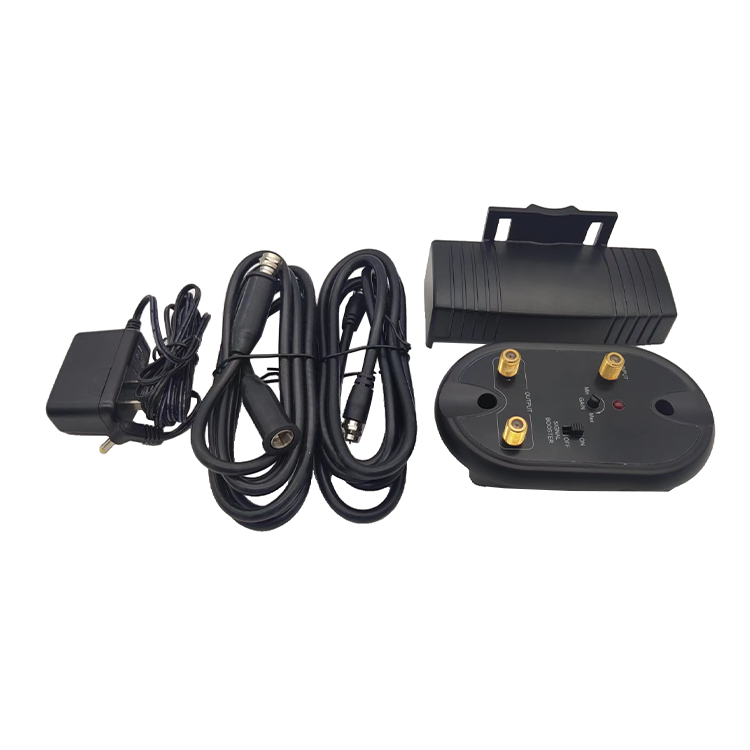

  • Wall mount accessories included.

Consultation hotline：0755-27091915

Online Service

Parameter

Place of Origin:Guangdong,China
Model Number:GDAMP-001(1500526)
ITEM
TYPICAL
Q.C LIMIT
TEST CONDITIONS
Freq. Range
54 – 806 MHz
Gain
             Signal booster on
38dB
33dBmin
54 – 216 MHz
36dB
31dBmin
470-806MHz
            Signal booster off
25dB
22dBmin
54 – 216 MHz
25dB
20dBmin
470-806MHz
Gain adj range
8dBmin
54 – 806 MHz
FM trap
             88MHz / 120MHz
-2.5dB
-3.5dB max.
@BETWEEN TO OVER GAIN
             95~108 MHz
-15dB
-12dB min.
@BETWEEN TO OVER GAIN
Input capability
1dB compressoin
70dBuv max
At 61.25MHz input
73dBuv max
At 471.25MHz input
Noise Figure
3.5 dB
5dBmax
54 – 806 MHz
Impedance
75 ohm
IN/OUT Port
Connector
Type “F” Female
IN/OUT Port
Power adaptor
input
120VAC/60Hz
output
12VDC/200mA
